摘要

摘要：在嵌入式HAL开发中，寄存器配置代码的编写占据大量开发时间，且极易因人为疏忽导致位域计算错误、地址偏移失误等问题。本文深入探讨基于Python + Jinja2模板引擎构建寄存器配置代码生成工具的完整方案，涵盖数据模型设计、模板引擎核心原理、CLI工具链搭建、增量生成机制及多平台适配策略，提供可直接落地的工程实践代码，帮助开发者将重复性寄存器编码工作自动化，提升开发效率与代码质量。

---

一、引言：为什么需要寄存器配置代码生成工具

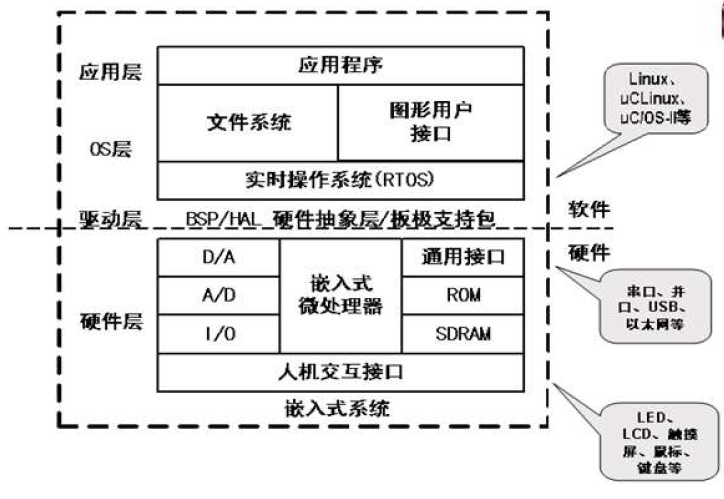

在嵌入式系统开发中，硬件抽象层（HAL）的构建往往始于寄存器定义。一个典型的微控制器外设（如USART、GPIO、TIM）可能包含数十个寄存器，每个寄存器又由多个位域组成。以STM32F4系列的USART外设为例，其包含7个寄存器、超过40个位域，手动编写对应的宏定义、结构体、访问函数不仅耗时，更易出错。

传统开发模式的痛点显而易见：

痛点	具体表现	影响
重复劳动	每个项目重复编写相似的寄存器宏	效率低下，开发周期延长
人为错误	位掩码计算错误、地址偏移失误	调试困难，硬件行为异常
维护困难	芯片版本升级后手动同步寄存器定义	遗漏更新，兼容性问题
风格不统一	多人协作时代码风格差异大	可读性差，代码审查成本高

代码生成工具的核心价值在于：将"人写代码"转变为"机器生成代码"，开发者只需维护高层次的寄存器描述文件（JSON/YAML/SVD），工具自动产出符合规范、零错误的C代码。这种模式在ARM CMSIS、NXP SDK、ESP-IDF等主流框架中已广泛应用。

---

二、整体架构设计

2.1 系统架构概览

本工具采用分层架构，将数据解析、模型构建、模板渲染、代码输出解耦：

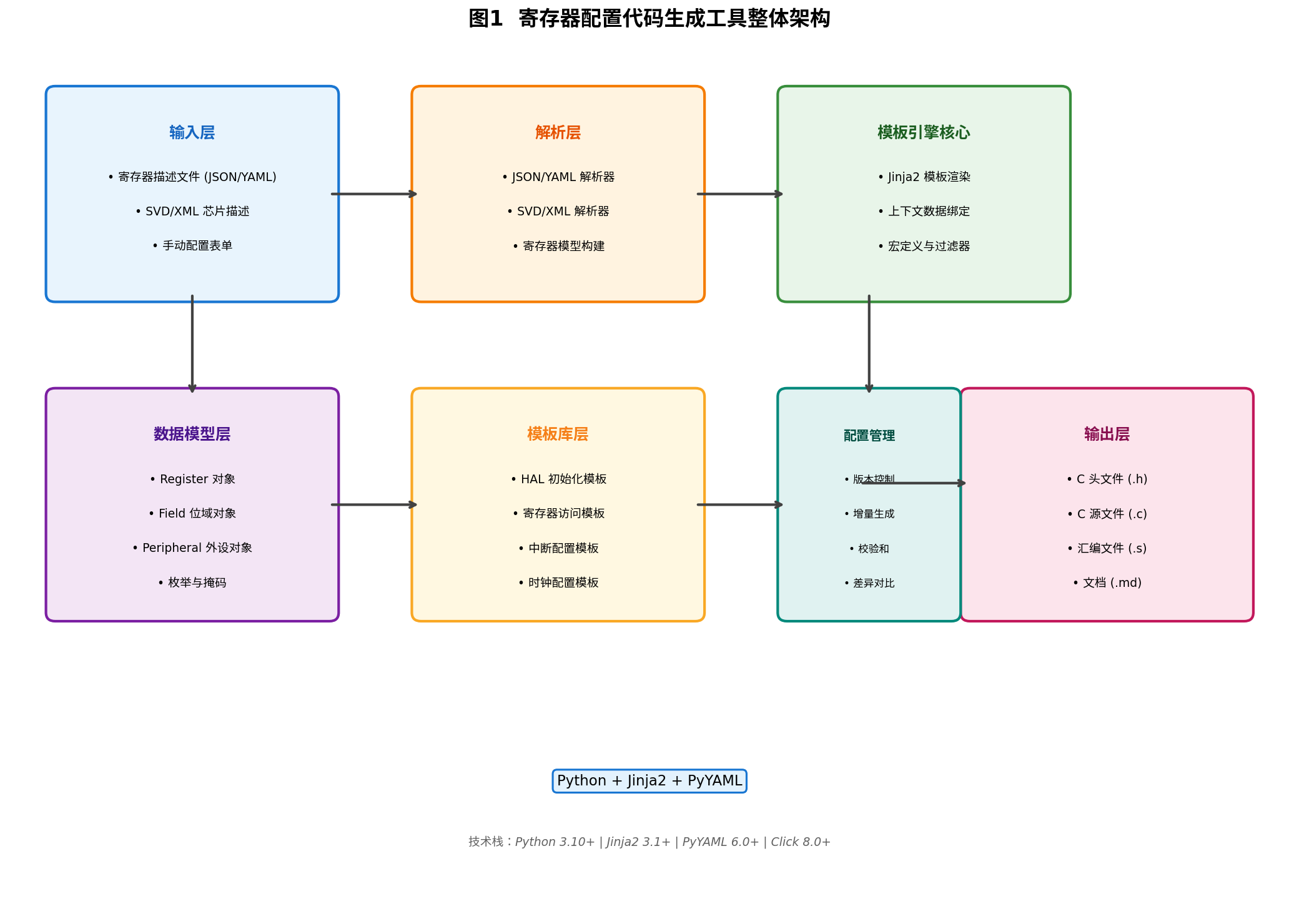

图1 寄存器配置代码生成工具整体架构

架构分为六层：

• 输入层：支持JSON、YAML、SVD/XML等多种寄存器描述格式
• 解析层：将输入文件解析为统一的内部数据模型
• 数据模型层：定义Register、Field、Peripheral等核心对象
• 模板库层：按功能分类的Jinja2模板集合（头文件、源文件、宏定义等）
• 模板引擎核心：Jinja2渲染环境，支持自定义过滤器与全局函数
• 输出层：生成C头文件(.h)、源文件(.c)、汇编(.s)及文档(.md)

2.2 核心数据模型

寄存器数据模型是连接输入解析与代码生成的桥梁，采用面向对象设计：

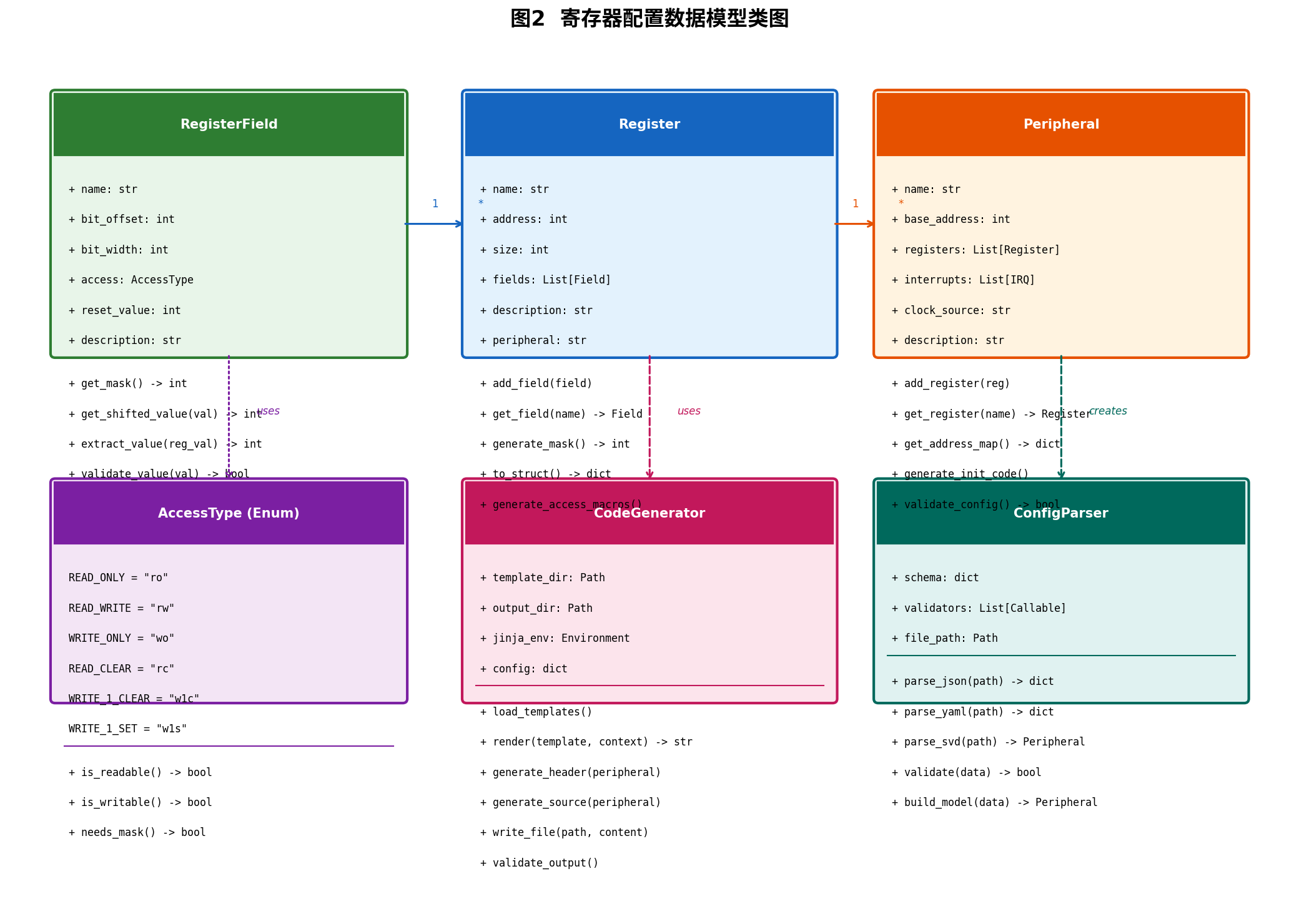

图2 寄存器配置数据模型类图

核心类设计如下：

# models/register.py
from enum import Enum, auto
from dataclasses import dataclass, field
from typing import List, Optional, Union

class AccessType(Enum):
    """寄存器位域访问类型枚举"""
    READ_ONLY = "ro"
    READ_WRITE = "rw"
    WRITE_ONLY = "wo"
    READ_CLEAR = "rc"           # 读清零
    WRITE_1_CLEAR = "w1c"       # 写1清零
    WRITE_1_SET = "w1s"         # 写1置位
    WRITE_0_CLEAR = "w0c"       # 写0清零

    def is_readable(self) -> bool:
        return self in (AccessType.READ_ONLY, AccessType.READ_WRITE,
                       AccessType.READ_CLEAR)

    def is_writable(self) -> bool:
        return self in (AccessType.READ_WRITE, AccessType.WRITE_ONLY,
                       AccessType.WRITE_1_CLEAR, AccessType.WRITE_1_SET,
                       AccessType.WRITE_0_CLEAR)

@dataclass
class RegisterField:
    """寄存器位域定义"""
    name: str
    bit_offset: int           # 位偏移量
    bit_width: int            # 位宽度
    access: AccessType        # 访问类型
    reset_value: int = 0      # 复位值
    description: str = ""     # 描述文本
    enumerated_values: List[dict] = field(default_factory=list)

    def get_mask(self) -> int:
        """计算位掩码"""
        return ((1 << self.bit_width) - 1) << self.bit_offset

    def get_shifted_value(self, value: int) -> int:
        """将值移位到正确位置"""
        return (value & ((1 << self.bit_width) - 1)) << self.bit_offset

    def extract_value(self, reg_value: int) -> int:
        """从寄存器值中提取位域值"""
        return (reg_value >> self.bit_offset) & ((1 << self.bit_width) - 1)

    def validate_value(self, value: int) -> bool:
        """验证值是否在有效范围内"""
        return 0 <= value < (1 << self.bit_width)

@dataclass
class Register:
    """寄存器定义"""
    name: str
    address: int              # 绝对地址或偏移地址
    size: int = 32            # 寄存器位宽（默认32位）
    fields: List[RegisterField] = field(default_factory=list)
    description: str = ""
    peripheral: str = ""     # 所属外设名称
    access: AccessType = AccessType.READ_WRITE

    def add_field(self, field: RegisterField) -> None:
        """添加位域并自动排序"""
        self.fields.append(field)
        self.fields.sort(key=lambda f: f.bit_offset, reverse=True)

    def get_field(self, name: str) -> Optional[RegisterField]:
        """按名称获取位域"""
        return next((f for f in self.fields if f.name == name), None)

    def generate_mask(self) -> int:
        """生成寄存器有效位掩码（所有位域的并集）"""
        mask = 0
        for f in self.fields:
            mask |= f.get_mask()
        return mask

    def to_struct(self) -> dict:
        """转换为字典，用于模板渲染"""
        return {
            "name": self.name,
            "address": f"0x{self.address:08X}",
            "size": self.size,
            "description": self.description,
            "fields": [self._field_to_dict(f) for f in self.fields],
            "has_fields": len(self.fields) > 0,
        }

    def _field_to_dict(self, field: RegisterField) -> dict:
        return {
            "name": field.name,
            "offset": field.bit_offset,
            "width": field.bit_width,
            "mask": f"0x{field.get_mask():08X}",
            "access": field.access.value,
            "reset": f"0x{field.reset_value:X}",
            "description": field.description,
        }

@dataclass
class Peripheral:
    """外设定义"""
    name: str
    base_address: int
    registers: List[Register] = field(default_factory=list)
    description: str = ""
    clock_source: Optional[str] = None
    interrupts: List[dict] = field(default_factory=list)

    def add_register(self, reg: Register) -> None:
        reg.peripheral = self.name
        self.registers.append(reg)

    def get_register(self, name: str) -> Optional[Register]:
        return next((r for r in self.registers if r.name == name), None)

    def get_address_map(self) -> dict:
        """生成地址映射表"""
        return {r.name: r.address for r in self.registers}

    def validate_config(self) -> List[str]:
        """验证外设配置一致性"""
        errors = []
        # 检查地址重叠
        addresses = [(r.name, r.address) for r in self.registers]
        for i, (n1, a1) in enumerate(addresses):
            for n2, a2 in addresses[i+1:]:
                if a1 == a2:
                    errors.append(f"地址冲突: {n1} 与 {n2} 地址相同 0x{a1:08X}")
        # 检查位域溢出
        for reg in self.registers:
            max_bit = max((f.bit_offset + f.bit_width for f in reg.fields), default=0)
            if max_bit > reg.size:
                errors.append(f"{reg.name}: 位域超出寄存器宽度 ({max_bit} > {reg.size})")
        return errors

---

三、Jinja2模板引擎深度解析

3.1 模板引擎工作原理

Jinja2是Python生态中最成熟的模板引擎之一，采用编译型实现：模板先被解析为抽象语法树（AST），再编译为Python字节码执行，性能远超解释型模板引擎。

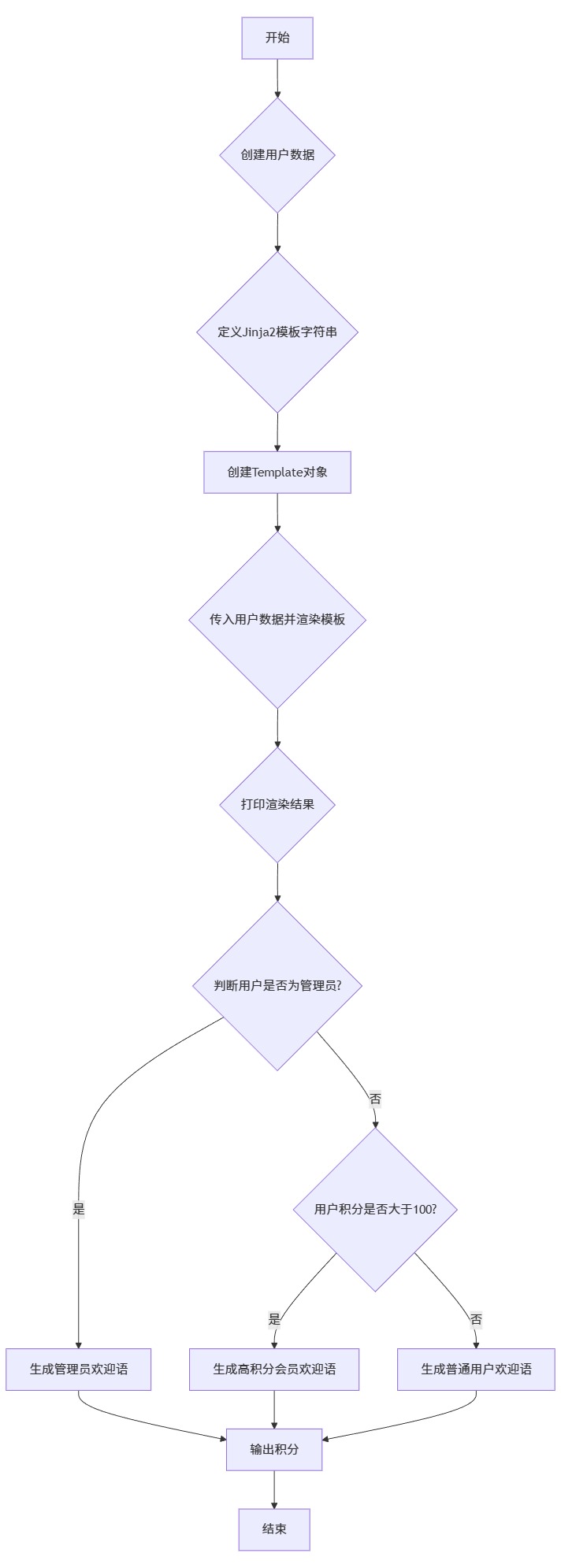

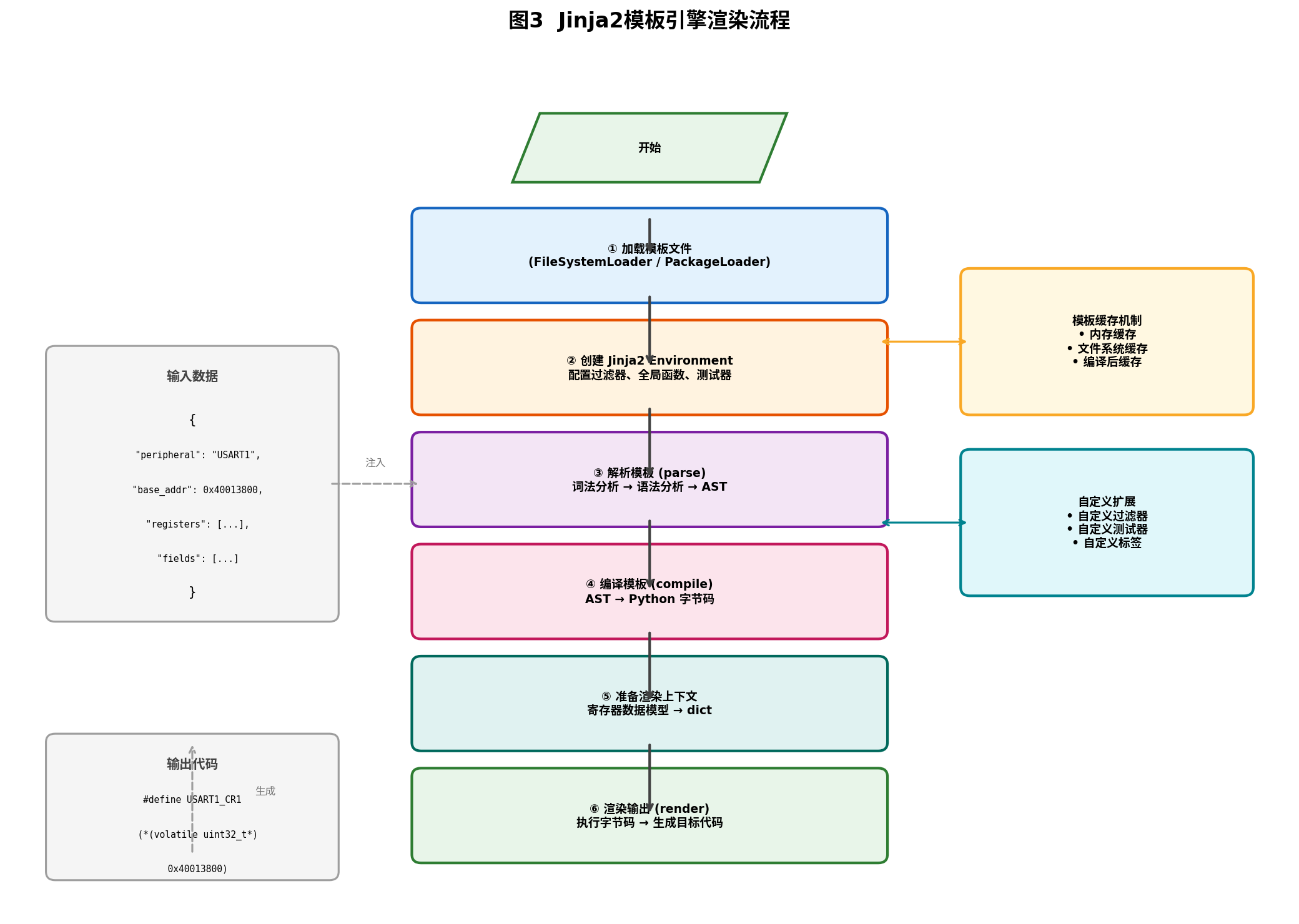

图3 Jinja2模板引擎渲染流程

渲染流程的六个阶段：

1. 加载模板：通过FileSystemLoader从磁盘加载模板文件
2. 创建Environment：配置全局变量、过滤器、测试器
3. 解析模板：词法分析 → 语法分析 → 生成AST
4. 编译模板：AST转换为Python字节码
5. 准备上下文：将寄存器数据模型转换为字典
6. 渲染输出：执行编译后的代码，生成目标文本

3.2 核心引擎实现

# generators/code_generator.py
import os
import hashlib
from pathlib import Path
from typing import Dict, List, Any, Optional
from jinja2 import Environment, FileSystemLoader, select_autoescape

class CodeGenerator:
    """寄存器配置代码生成器"""

    def __init__(self, template_dir: str, output_dir: str, config: Optional[dict] = None):
        self.template_dir = Path(template_dir)
        self.output_dir = Path(output_dir)
        self.output_dir.mkdir(parents=True, exist_ok=True)
        self.config = config or {}

        # 初始化Jinja2环境
        self.jinja_env = Environment(
            loader=FileSystemLoader(str(self.template_dir)),
            autoescape=select_autoescape(['html', 'xml']),
            trim_blocks=True,          # 去除块级标签后的首换行
            lstrip_blocks=True,        # 去除块级标签前的空格
            keep_trailing_newline=True, # 保留末尾换行
        )

        # 注册自定义过滤器
        self._register_filters()
        # 注册全局函数
        self._register_globals()

        # 模板编译缓存
        self._template_cache: Dict[str, Any] = {}

    def _register_filters(self) -> None:
        """注册自定义过滤器"""

        @self.jinja_env.filter('to_hex')
        def to_hex_filter(value: int, width: int = 8) -> str:
            """整数转十六进制字符串"""
            return f"0x{value:0{width}X}"

        @self.jinja_env.filter('to_bin')
        def to_bin_filter(value: int, width: int = 32) -> str:
            """整数转二进制字符串"""
            return f"0b{value:0{width}b}"

        @self.jinja_env.filter('snake_case')
        def snake_case_filter(value: str) -> str:
            """转换为snake_case命名"""
            import re
            s1 = re.sub('(.)([A-Z][a-z]+)', r'\1_\2', value)
            return re.sub('([a-z0-9])([A-Z])', r'\1_\2', s1).lower()

        @self.jinja_env.filter('screaming_snake')
        def screaming_snake_filter(value: str) -> str:
            """转换为SCREAMING_SNAKE_CASE"""
            return snake_case_filter(value).upper()

        @self.jinja_env.filter('camel_case')
        def camel_case_filter(value: str) -> str:
            """转换为camelCase"""
            parts = snake_case_filter(value).split('_')
            return parts[0] + ''.join(p.capitalize() for p in parts[1:])

        @self.jinja_env.filter('pascal_case')
        def pascal_case_filter(value: str) -> str:
            """转换为PascalCase"""
            parts = snake_case_filter(value).split('_')
            return ''.join(p.capitalize() for p in parts)

        @self.jinja_env.filter('comment_wrap')
        def comment_wrap_filter(text: str, width: int = 80, prefix: str = " * ") -> str:
            """自动换行注释文本"""
            import textwrap
            lines = textwrap.wrap(text, width=width-len(prefix))
            return '\n'.join(f"{prefix}{line}" for line in lines)

    def _register_globals(self) -> None:
        """注册全局可用函数"""

        def calculate_mask(offset: int, width: int) -> int:
            """计算位掩码"""
            return ((1 << width) - 1) << offset

        def generate_header_guard(filename: str) -> str:
            """生成头文件保护宏"""
            guard = filename.upper().replace('.', '_').replace('/', '_')
            return f"__{guard}__"

        def get_current_date() -> str:
            """获取当前日期"""
            from datetime import datetime
            return datetime.now().strftime("%Y-%m-%d")

        self.jinja_env.globals.update({
            'calculate_mask': calculate_mask,
            'header_guard': generate_header_guard,
            'today': get_current_date,
            'config': self.config,
        })

    def load_template(self, template_name: str) -> Any:
        """加载模板（带缓存）"""
        if template_name not in self._template_cache:
            self._template_cache[template_name] = self.jinja_env.get_template(template_name)
        return self._template_cache[template_name]

    def render(self, template_name: str, context: dict) -> str:
        """渲染模板"""
        template = self.load_template(template_name)
        return template.render(**context)

    def generate_header(self, peripheral: Peripheral, template: str = "hal_header.j2") -> str:
        """生成外设头文件"""
        context = {
            'peripheral': peripheral.to_struct(),
            'registers': [r.to_struct() for r in peripheral.registers],
            'filename': f"{peripheral.name.lower()}_hal.h",
        }
        return self.render(template, context)

    def generate_source(self, peripheral: Peripheral, template: str = "hal_source.j2") -> str:
        """生成外设源文件"""
        context = {
            'peripheral': peripheral.to_struct(),
            'registers': [r.to_struct() for r in peripheral.registers],
            'filename': f"{peripheral.name.lower()}_hal.c",
        }
        return self.render(template, context)

    def write_file(self, filename: str, content: str) -> Path:
        """写入文件并计算校验和"""
        filepath = self.output_dir / filename
        filepath.write_text(content, encoding='utf-8')

        # 计算MD5用于增量生成
        md5 = hashlib.md5(content.encode()).hexdigest()
        checksum_file = self.output_dir / f"{filename}.md5"
        checksum_file.write_text(md5)

        return filepath

    def generate_all(self, peripheral: Peripheral) -> Dict[str, Path]:
        """生成所有文件"""
        outputs = {}

        # 生成头文件
        header_content = self.generate_header(peripheral)
        outputs['header'] = self.write_file(
            f"{peripheral.name.lower()}_hal.h", header_content)

        # 生成源文件
        source_content = self.generate_source(peripheral)
        outputs['source'] = self.write_file(
            f"{peripheral.name.lower()}_hal.c", source_content)

        # 生成寄存器宏定义文件
        macro_content = self.render("register_macros.j2", {
            'peripheral': peripheral.to_struct(),
            'registers': [r.to_struct() for r in peripheral.registers],
        })
        outputs['macros'] = self.write_file(
            f"{peripheral.name.lower()}_reg.h", macro_content)

        return outputs

3.3 模板文件示例

{# templates/hal_header.j2 - HAL头文件模板 #}
{# 自动生成的寄存器配置头文件，请勿手动修改 #}
{# 生成时间: {{ today() }} #}

#ifndef {{ header_guard(filename) }}
#define {{ header_guard(filename) }}

#ifdef __cplusplus
extern "C" {
#endif

#include <stdint.h>

/* ============================================
 * {{ peripheral.description }}
 * 基地址: {{ peripheral.base_address }}
 * ============================================ */

#define {{ peripheral.name | screaming_snake }}_BASE    {{ peripheral.base_address }}

{% for reg in registers %}
/* --- {{ reg.name }} : {{ reg.description }} --- */
#define {{ peripheral.name | screaming_snake }}_{{ reg.name | screaming_snake }}_ADDR    ({{ peripheral.name | screaming_snake }}_BASE + {{ reg.address }})

{% if reg.has_fields %}
{% for field in reg.fields %}
/* {{ field.name }} : {{ field.description }} */
#define {{ peripheral.name | screaming_snake }}_{{ reg.name | screaming_snake }}_{{ field.name | screaming_snake }}_Pos     ({{ field.offset }}U)
#define {{ peripheral.name | screaming_snake }}_{{ reg.name | screaming_snake }}_{{ field.name | screaming_snake }}_Msk     (0x{{ "%08X" | format(field.mask | int(base=16)) }}U)
#define {{ peripheral.name | screaming_snake }}_{{ reg.name | screaming_snake }}_{{ field.name | screaming_snake }}        {{ peripheral.name | screaming_snake }}_{{ reg.name | screaming_snake }}_{{ field.name | screaming_snake }}_Msk

{% if field.access == 'rw' %}
/* 读写辅助宏 */
#define {{ peripheral.name | screaming_snake }}_{{ reg.name | screaming_snake }}_{{ field.name | screaming_snake }}_VAL(val)   (((val) << {{ field.name | screaming_snake }}_Pos) & {{ field.name | screaming_snake }}_Msk)
{% endif %}
{% endfor %}
{% endif %}

{% endfor %}

/* 寄存器结构体定义 */
typedef struct {
{% for reg in registers %}
    volatile uint32_t {{ reg.name | snake_case }};    /* !< {{ reg.description }} */
{% if not loop.last %}
{% endif %}
{% endfor %}
} {{ peripheral.name | pascal_case }}_TypeDef;

#ifdef __cplusplus
}
#endif

#endif /* {{ header_guard(filename) }} */

---

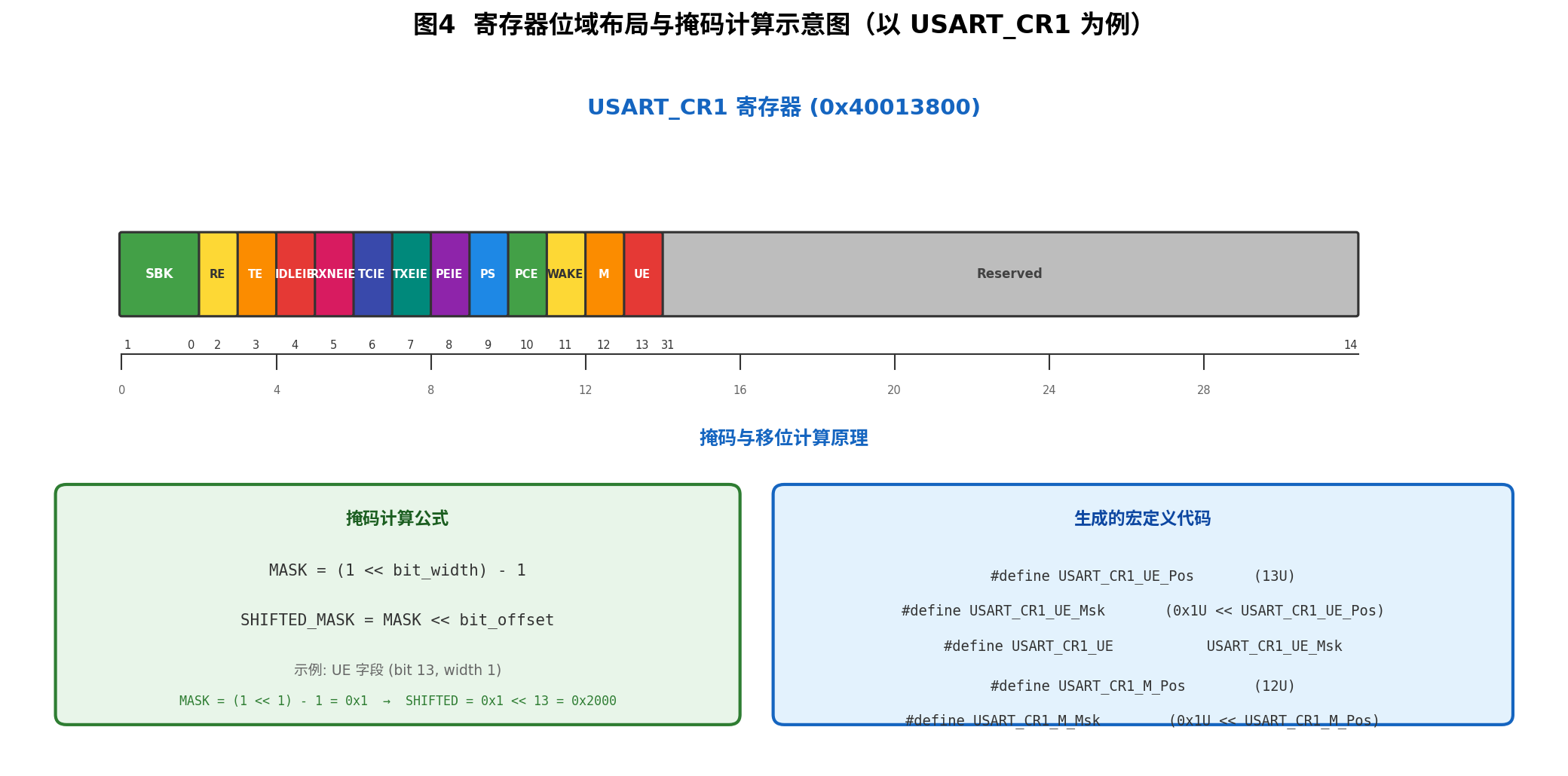

四、寄存器位域布局与掩码计算

理解位域的物理布局是生成正确代码的基础：

图4 寄存器位域布局与掩码计算示意图（以USART_CR1为例）

掩码计算的核心公式：

MASK = (1 << bit_width) - 1
SHIFTED_MASK = MASK << bit_offset

例如USART_CR1寄存器的UE字段（bit 13, width 1）：

• 基础掩码：MASK = (1 << 1) - 1 = 0x1
• 移位掩码：SHIFTED = 0x1 << 13 = 0x2000

工具自动生成以下宏定义：

#define USART_CR1_UE_Pos       (13U)
#define USART_CR1_UE_Msk       (0x1U << USART_CR1_UE_Pos)
#define USART_CR1_UE           USART_CR1_UE_Msk

---

五、CLI命令行工具与工程化实践

5.1 命令行交互设计

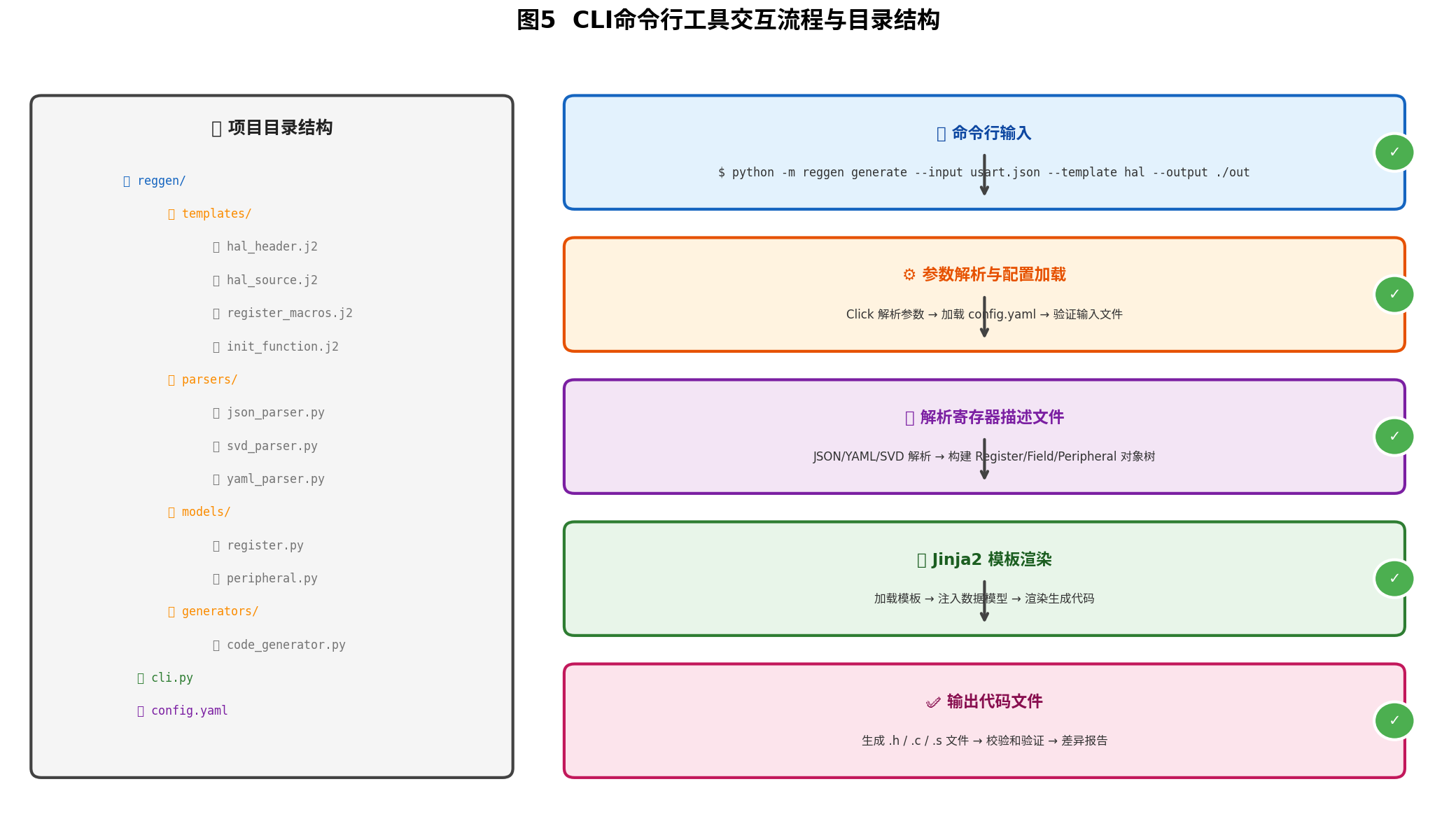

图5 CLI命令行工具交互流程与目录结构

使用Click库构建专业级CLI：

# cli.py
import click
import json
import yaml
from pathlib import Path
from parsers.json_parser import JSONParser
from parsers.yaml_parser import YAMLParser
from parsers.svd_parser import SVDParser
from generators.code_generator import CodeGenerator

@click.group()
@click.version_option(version="1.0.0")
def cli():
    """寄存器配置代码生成工具 (RegGen)"""
    pass

@cli.command()
@click.option('--input', '-i', required=True, type=click.Path(exists=True),
              help='输入寄存器描述文件 (JSON/YAML/SVD)')
@click.option('--output', '-o', default='./output', type=click.Path(),
              help='输出目录')
@click.option('--template', '-t', default='hal',
              type=click.Choice(['hal', 'bare', 'cmsis', 'custom']),
              help='模板风格')
@click.option('--platform', '-p', default='cortex-m',
              type=click.Choice(['cortex-m', 'riscv', 'xtensa', 'generic']),
              help='目标平台')
@click.option('--style', '-s', default='keil',
              type=click.Choice(['keil', 'gcc', 'iar', 'clang']),
              help='编译器风格')
@click.option('--check', is_flag=True, help='仅验证不生成')
@click.option('--diff', is_flag=True, help='与现有代码对比差异')
@click.option('--verbose', '-v', is_flag=True, help='详细输出')
def generate(input, output, template, platform, style, check, diff, verbose):
    """生成寄存器配置代码"""

    # 解析输入文件
    input_path = Path(input)
    parser = _get_parser(input_path.suffix)

    try:
        peripheral = parser.parse(input_path)
    except Exception as e:
        click.echo(f"[ERROR] 解析失败: {e}", err=True)
        raise click.Abort()

    # 验证配置
    errors = peripheral.validate_config()
    if errors:
        for err in errors:
            click.echo(f"[ERROR] {err}", err=True)
        if check:
            click.echo(f"验证完成: 发现 {len(errors)} 个错误")
            return
        raise click.Abort()

    if check:
        click.echo("验证通过: 配置正确")
        return

    # 加载配置
    config = {
        'platform': platform,
        'compiler_style': style,
        'template_set': template,
    }

    # 初始化生成器
    template_dir = Path(__file__).parent / 'templates' / template
    generator = CodeGenerator(str(template_dir), output, config)

    # 生成代码
    outputs = generator.generate_all(peripheral)

    # 输出结果
    click.echo(f"生成完成:")
    for key, path in outputs.items():
        size = path.stat().st_size
        click.echo(f"  [{key}] {path} ({size} bytes)")

    # 差异对比
    if diff:
        _show_diff(output, peripheral.name)

def _get_parser(suffix: str):
    """根据文件后缀获取解析器"""
    parsers = {
        '.json': JSONParser,
        '.yaml': YAMLParser,
        '.yml': YAMLParser,
        '.svd': SVDParser,
    }
    parser_cls = parsers.get(suffix.lower())
    if not parser_cls:
        raise click.BadParameter(f"不支持的文件格式: {suffix}")
    return parser_cls()

def _show_diff(output_dir: str, periph_name: str):
    """显示与现有代码的差异"""
    import difflib

    new_header = Path(output_dir) / f"{periph_name.lower()}_hal.h"
    old_header = Path(output_dir) / f"{periph_name.lower()}_hal.h.bak"

    if not old_header.exists():
        click.echo("无历史版本可对比")
        return

    new_lines = new_header.read_text().splitlines()
    old_lines = old_header.read_text().splitlines()

    diff = difflib.unified_diff(old_lines, new_lines,
                                fromfile=str(old_header),
                                tofile=str(new_header),
                                lineterm='')

    click.echo("\n差异对比:")
    for line in diff:
        if line.startswith('+'):
            click.secho(line, fg='green')
        elif line.startswith('-'):
            click.secho(line, fg='red')
        elif line.startswith('@@'):
            click.secho(line, fg='cyan')
        else:
            click.echo(line)

if __name__ == '__main__':
    cli()

5.2 输入文件示例（JSON格式）

{
    "name": "USART1",
    "base_address": "0x40013800",
    "description": "通用同步异步收发器1",
    "clock_source": "APB2",
    "interrupts": [
        {"name": "USART1_IRQn", "number": 37}
    ],
    "registers": [
        {
            "name": "SR",
            "address_offset": "0x00",
            "size": 32,
            "description": "状态寄存器",
            "fields": [
                {
                    "name": "PE",
                    "bit_offset": 0,
                    "bit_width": 1,
                    "access": "rc",
                    "reset_value": 0,
                    "description": "校验错误"
                },
                {
                    "name": "FE",
                    "bit_offset": 1,
                    "bit_width": 1,
                    "access": "rc",
                    "reset_value": 0,
                    "description": "帧格式错误"
                },
                {
                    "name": "TXE",
                    "bit_offset": 7,
                    "bit_width": 1,
                    "access": "ro",
                    "reset_value": 1,
                    "description": "发送数据寄存器空"
                },
                {
                    "name": "TC",
                    "bit_offset": 6,
                    "bit_width": 1,
                    "access": "rc",
                    "reset_value": 1,
                    "description": "发送完成"
                }
            ]
        },
        {
            "name": "CR1",
            "address_offset": "0x0C",
            "size": 32,
            "description": "控制寄存器1",
            "fields": [
                {
                    "name": "SBK",
                    "bit_offset": 0,
                    "bit_width": 1,
                    "access": "rw",
                    "reset_value": 0,
                    "description": "发送断开帧"
                },
                {
                    "name": "RWU",
                    "bit_offset": 1,
                    "bit_width": 1,
                    "access": "rw",
                    "reset_value": 0,
                    "description": "接收唤醒"
                },
                {
                    "name": "RE",
                    "bit_offset": 2,
                    "bit_width": 1,
                    "access": "rw",
                    "reset_value": 0,
                    "description": "接收使能"
                },
                {
                    "name": "TE",
                    "bit_offset": 3,
                    "bit_width": 1,
                    "access": "rw",
                    "reset_value": 0,
                    "description": "发送使能"
                },
                {
                    "name": "UE",
                    "bit_offset": 13,
                    "bit_width": 1,
                    "access": "rw",
                    "reset_value": 0,
                    "description": "USART使能"
                }
            ]
        }
    ]
}

---

六、增量生成与版本管理

6.1 增量生成机制

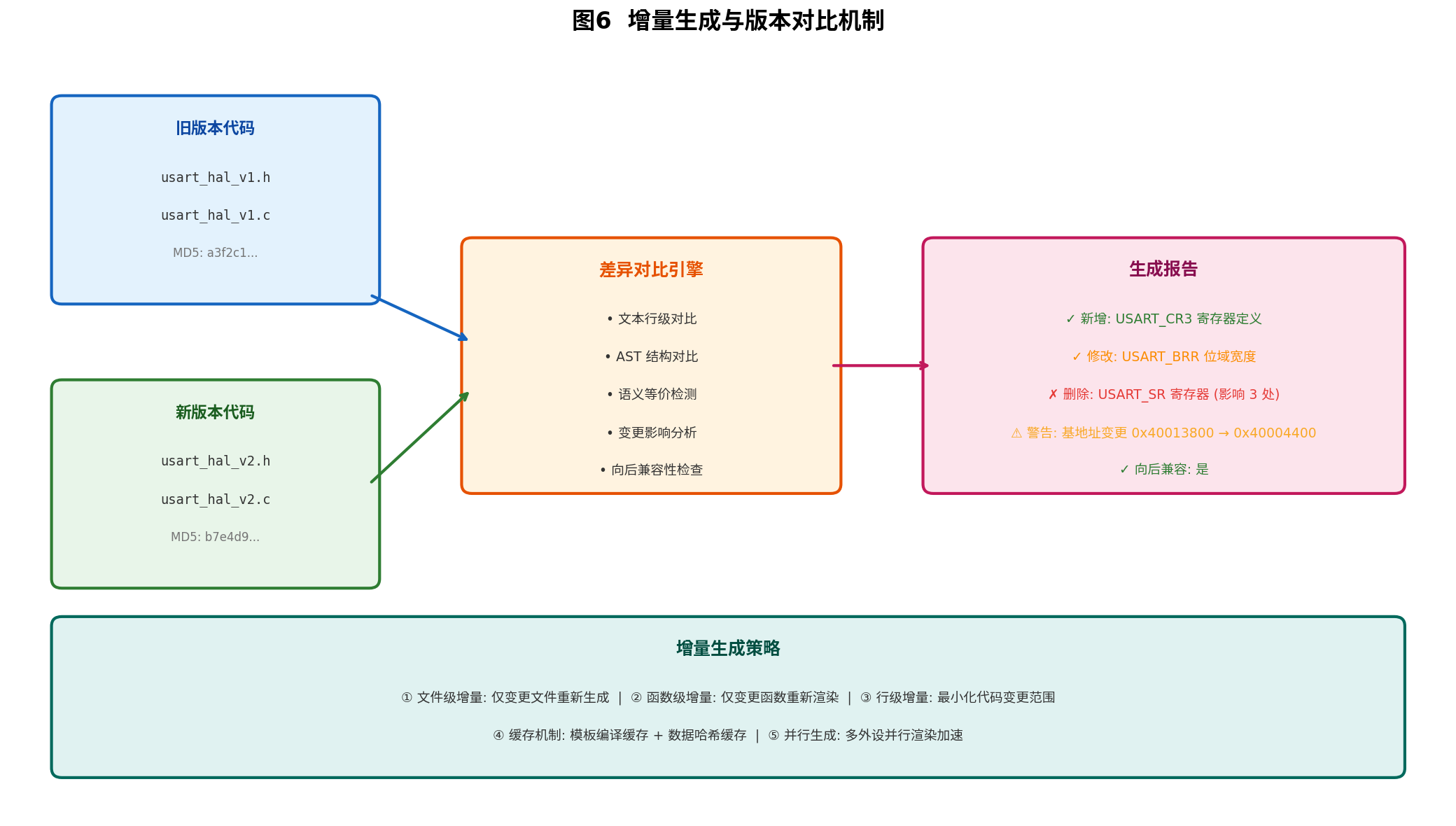

图6 增量生成与版本对比机制

增量生成策略实现：

# generators/incremental.py
import hashlib
import difflib
from pathlib import Path
from typing import Dict, List, Tuple

class IncrementalGenerator:
    """增量代码生成器"""

    def __init__(self, output_dir: Path, cache_dir: Path = None):
        self.output_dir = Path(output_dir)
        self.cache_dir = cache_dir or self.output_dir / '.reggen_cache'
        self.cache_dir.mkdir(exist_ok=True)

    def _compute_hash(self, content: str) -> str:
        """计算内容哈希"""
        return hashlib.sha256(content.encode()).hexdigest()[:16]

    def needs_update(self, filename: str, new_content: str) -> bool:
        """判断文件是否需要更新"""
        cache_file = self.cache_dir / f"{filename}.hash"
        new_hash = self._compute_hash(new_content)

        if not cache_file.exists():
            return True

        old_hash = cache_file.read_text().strip()
        return old_hash != new_hash

    def update_cache(self, filename: str, content: str) -> None:
        """更新缓存"""
        cache_file = self.cache_dir / f"{filename}.hash"
        cache_file.write_text(self._compute_hash(content))

    def generate_diff_report(self, old_content: str, new_content: str,
                            filename: str) -> str:
        """生成差异报告"""
        old_lines = old_content.splitlines()
        new_lines = new_content.splitlines()

        diff = list(difflib.unified_diff(
            old_lines, new_lines,
            fromfile=f"a/{filename}",
            tofile=f"b/{filename}",
            lineterm=''
        ))

        # 统计变更
        added = sum(1 for line in diff if line.startswith('+') and not line.startswith('+++'))
        removed = sum(1 for line in diff if line.startswith('-') and not line.startswith('---'))

        report = f"""## 差异报告: {filename}
- 新增行数: {added}
- 删除行数: {removed}
- 净变更: {added - removed}

'''diff'''
{chr(10).join(diff[:50])}  # 最多显示50行

        return report

    def smart_generate(self, filename: str, content: str,
                       force: bool = False) -> Tuple[bool, str]:
        """智能生成：仅在内容变化时写入"""
        output_path = self.output_dir / filename

        # 检查是否需要更新
        if not force and not self.needs_update(filename, content):
            return False, "内容未变化，跳过生成"

        # 保存旧版本用于对比
        if output_path.exists():
            old_content = output_path.read_text()
            report = self.generate_diff_report(old_content, content, filename)
        else:
            report = "新文件生成"

        # 写入新内容
        output_path.write_text(content)
        self.update_cache(filename, content)

        return True, report

---

七、多平台适配与代码风格定制

7.1 平台适配架构

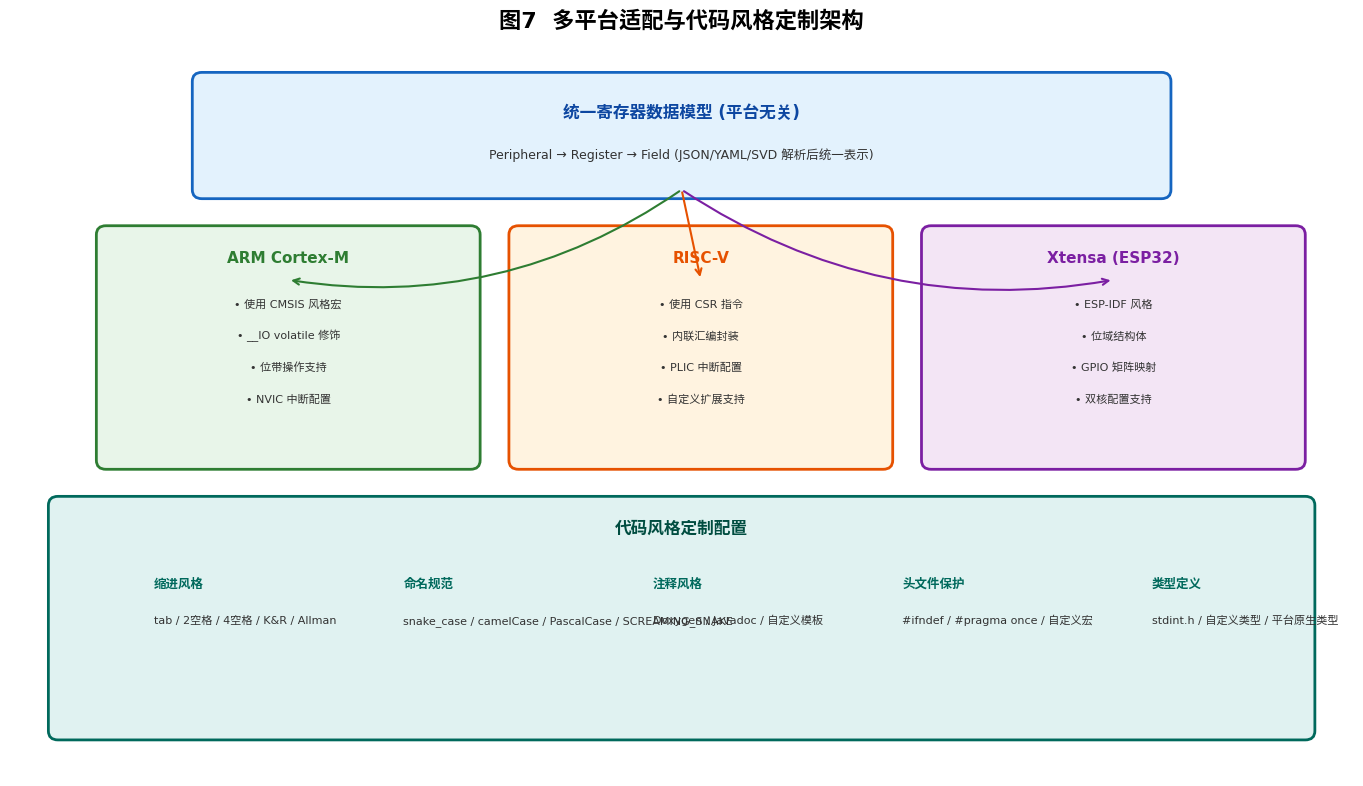

图7 多平台适配与代码风格定制架构

平台适配通过策略模式实现：

# platforms/base.py
from abc import ABC, abstractmethod
from typing import Dict

class PlatformAdapter(ABC):
    """平台适配器基类"""

    @abstractmethod
    def get_type_prefix(self) -> str:
        """获取类型前缀"""
        pass

    @abstractmethod
    def get_volatile_qualifier(self) -> str:
        """获取volatile修饰符"""
        pass

    @abstractmethod
    def get_interrupt_macro(self, irq_name: str, irq_num: int) -> str:
        """生成中断宏定义"""
        pass

    @abstractmethod
    def get_register_access_inline(self, reg_name: str, addr: str,
                                    field_name: str, offset: int,
                                    width: int) -> str:
        """生成内联寄存器访问函数"""
        pass

# platforms/cortex_m.py
class CortexMAdapter(PlatformAdapter):
    """ARM Cortex-M平台适配"""

    def get_type_prefix(self) -> str:
        return "__IO"

    def get_volatile_qualifier(self) -> str:
        return "volatile"

    def get_interrupt_macro(self, irq_name: str, irq_num: int) -> str:
        return f"#define {irq_name}    {irq_num}"

    def get_register_access_inline(self, reg_name: str, addr: str,
                                    field_name: str, offset: int,
                                    width: int) -> str:
        mask = ((1 << width) - 1) << offset
        return f"""__STATIC_INLINE void {reg_name}_{field_name}_Set(uint32_t val) {{
    {reg_name} = ({reg_name} & ~0x{mask:08X}U) | ((val << {offset}) & 0x{mask:08X}U);
}}"""

# platforms/riscv.py
class RISCVAdapter(PlatformAdapter):
    """RISC-V平台适配"""

    def get_type_prefix(self) -> str:
        return "volatile"

    def get_volatile_qualifier(self) -> str:
        return "volatile"

    def get_interrupt_macro(self, irq_name: str, irq_num: int) -> str:
        return f"#define {irq_name}    ({irq_num} + 16)  /* 外部中断偏移 */"

    def get_register_access_inline(self, reg_name: str, addr: str,
                                    field_name: str, offset: int,
                                    width: int) -> str:
        # RISC-V常用内联汇编或标准C
        mask = ((1 << width) - 1) << offset
        return f"""static inline void set_{reg_name.lower()}_{field_name.lower()}(uint32_t val) {{
    uint32_t tmp = *({self.get_volatile_qualifier()} uint32_t*){addr};
    tmp = (tmp & ~0x{mask:08X}U) | (val << {offset});
    *({self.get_volatile_qualifier()} uint32_t*){addr} = tmp;
}}"""

7.2 代码风格配置

# config.yaml - 代码风格配置
style:
  indentation: "4_spaces"      # tab / 2_spaces / 4_spaces
  brace_style: "allman"        # k&r / allman / gnu
  naming:
    macro: "SCREAMING_SNAKE"
    function: "snake_case"
    variable: "snake_case"
    type: "PascalCase"
  comments:
    style: "doxygen"           # doxygen / javadoc / custom
    language: "chinese"        # chinese / english / bilingual
  header_guard:
    style: "pragma_once"       # ifndef / pragma_once
    prefix: "REGGEN_"
  types:
    use_stdint: true           # 使用stdint.h
    custom_prefix: ""          # 自定义类型前缀

---

八、性能优化与基准测试

8.1 性能对比数据

图8 不同模板引擎生成性能对比

优化策略：

优化手段	实现方式	效果
模板编译缓存	Jinja2内置BytecodeCache	二次渲染提速10-50倍
并行生成	multiprocessing.Pool	多外设并行，线性加速
惰性加载	按需解析寄存器描述	减少内存占用
增量检测	SHA256内容哈希	避免不必要的文件写入

8.2 缓存实现

# generators/cache.py
from jinja2 import FileSystemBytecodeCache
import tempfile
import os

class OptimizedCodeGenerator(CodeGenerator):
    """带优化的代码生成器"""

    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)

        # 启用字节码缓存
        cache_dir = tempfile.gettempdir() + '/reggen_cache'
        os.makedirs(cache_dir, exist_ok=True)
        self.jinja_env.bytecode_cache = FileSystemBytecodeCache(cache_dir)

        # 启用自动重载（开发模式）
        self.jinja_env.auto_reload = False  # 生产环境关闭

    def batch_generate(self, peripherals: List[Peripheral],
                       max_workers: int = 4) -> Dict[str, Path]:
        """批量并行生成"""
        from concurrent.futures import ProcessPoolExecutor

        def _generate_one(periph):
            return self.generate_all(periph)

        results = {}
        with ProcessPoolExecutor(max_workers=max_workers) as executor:
            futures = {executor.submit(_generate_one, p): p.name
                      for p in peripherals}
            for future in futures:
                name = futures[future]
                try:
                    results[name] = future.result()
                except Exception as e:
                    self.logger.error(f"{name} 生成失败: {e}")

        return results

---

九、错误处理与验证机制

9.1 三层验证体系

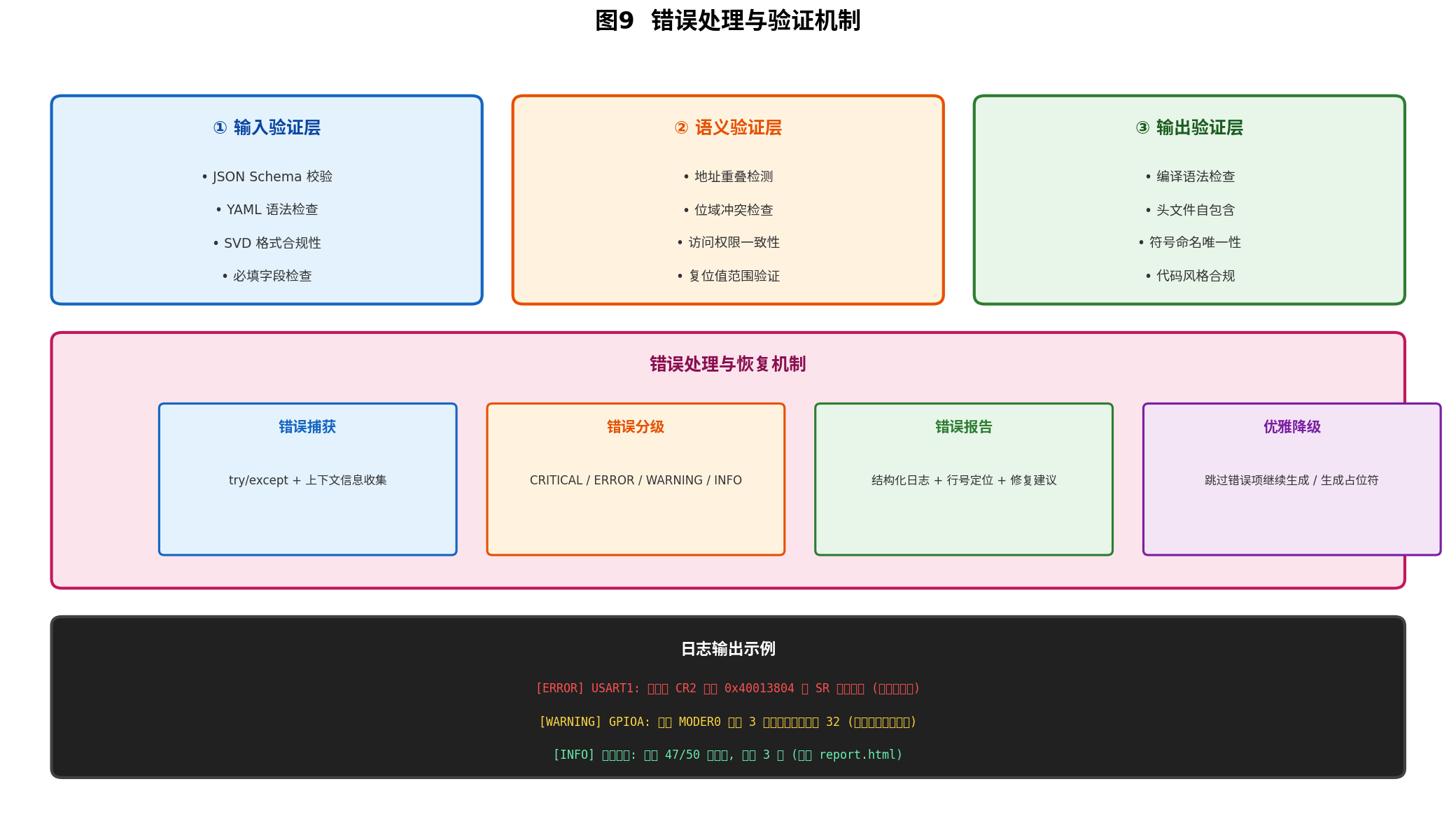

图9 错误处理与验证机制

# validators/chain.py
from typing import List, Callable, Optional
from dataclasses import dataclass

@dataclass
class ValidationError:
    level: str      # CRITICAL / ERROR / WARNING / INFO
    message: str
    location: str   # 错误位置
    suggestion: str # 修复建议

class ValidationChain:
    """验证链"""

    def __init__(self):
        self.validators: List[Callable] = []

    def add(self, validator: Callable) -> 'ValidationChain':
        self.validators.append(validator)
        return self

    def validate(self, peripheral: Peripheral) -> List[ValidationError]:
        errors = []
        for validator in self.validators:
            try:
                result = validator(peripheral)
                if result:
                    errors.extend(result)
            except Exception as e:
                errors.append(ValidationError(
                    level="CRITICAL",
                    message=f"验证器异常: {e}",
                    location="validator",
                    suggestion="检查验证器实现"
                ))
        return errors

# 预定义验证器
def check_address_overlap(peripheral: Peripheral) -> List[ValidationError]:
    """检查寄存器地址重叠"""
    errors = []
    regs = sorted(peripheral.registers, key=lambda r: r.address)
    for i, r1 in enumerate(regs):
        for r2 in regs[i+1:]:
            if r1.address == r2.address:
                errors.append(ValidationError(
                    level="CRITICAL",
                    message=f"寄存器地址重叠: {r1.name} 与 {r2.name}",
                    location=f"{peripheral.name}/{r1.name}",
                    suggestion=f"修改其中一个寄存器的地址偏移"
                ))
    return errors

def check_field_overflow(peripheral: Peripheral) -> List[ValidationError]:
    """检查位域溢出"""
    errors = []
    for reg in peripheral.registers:
        max_end = 0
        for field in reg.fields:
            end = field.bit_offset + field.bit_width
            if end > reg.size:
                errors.append(ValidationError(
                    level="ERROR",
                    message=f"位域溢出: {field.name} 结束位 {end} > 寄存器宽度 {reg.size}",
                    location=f"{peripheral.name}/{reg.name}/{field.name}",
                    suggestion=f"减小位宽度或调整偏移量"
                ))
            max_end = max(max_end, end)
    return errors

def check_naming_convention(peripheral: Peripheral) -> List[ValidationError]:
    """检查命名规范"""
    errors = []
    import re
    for reg in peripheral.registers:
        if not re.match(r'^[A-Z][A-Z0-9_]*$', reg.name):
            errors.append(ValidationError(
                level="WARNING",
                message=f"寄存器命名不规范: {reg.name}",
                location=f"{peripheral.name}/{reg.name}",
                suggestion="使用大写字母、数字和下划线"
            ))
    return errors

---

十、完整使用示例

10.1 安装与配置

# 安装依赖
pip install jinja2 pyyaml click

# 克隆工具
git clone https://github.com/example/reggen.git
cd reggen

# 查看帮助
python -m reggen --help

10.2 生成代码

# 从JSON描述生成HAL代码
python -m reggen generate \
    --input examples/usart1.json \
    --output ./output \
    --template hal \
    --platform cortex-m \
    --style keil

# 输出:
# 生成完成:
#   [header] output/usart1_hal.h (2847 bytes)
#   [source] output/usart1_hal.c (1523 bytes)
#   [macros] output/usart1_reg.h (4102 bytes)

10.3 生成的代码示例

/* 自动生成的寄存器配置头文件，请勿手动修改 */
/* 生成时间: 2024-01-15 */

#ifndef __USART1_HAL_H__
#define __USART1_HAL_H__

#ifdef __cplusplus
extern "C" {
#endif

#include <stdint.h>

/* ============================================
 * 通用同步异步收发器1
 * 基地址: 0x40013800
 * ============================================ */

#define USART1_BASE    0x40013800

/* --- SR : 状态寄存器 --- */
#define USART1_SR_ADDR    (USART1_BASE + 0x00)

/* PE : 校验错误 */
#define USART1_SR_PE_Pos     (0U)
#define USART1_SR_PE_Msk     (0x00000001U)
#define USART1_SR_PE         USART1_SR_PE_Msk

/* TXE : 发送数据寄存器空 */
#define USART1_SR_TXE_Pos     (7U)
#define USART1_SR_TXE_Msk     (0x00000080U)
#define USART1_SR_TXE         USART1_SR_TXE_Msk

/* --- CR1 : 控制寄存器1 --- */
#define USART1_CR1_ADDR    (USART1_BASE + 0x0C)

/* UE : USART使能 */
#define USART1_CR1_UE_Pos     (13U)
#define USART1_CR1_UE_Msk     (0x00002000U)
#define USART1_CR1_UE         USART1_CR1_UE_Msk

/* 读写辅助宏 */
#define USART1_CR1_UE_VAL(val)   (((val) << UE_Pos) & UE_Msk)

/* 寄存器结构体定义 */
typedef struct {
    volatile uint32_t SR;    /* !< 状态寄存器 */
    uint32_t RESERVED0[1];
    volatile uint32_t CR1;   /* !< 控制寄存器1 */
} USART1_TypeDef;

#ifdef __cplusplus
}
#endif

#endif /* __USART1_HAL_H__ */

---

十一、总结与展望

本文系统阐述了基于Python + Jinja2构建寄存器配置代码生成工具的完整方案，涵盖：

模块	核心要点
数据模型	Register/Field/Peripheral三层对象模型，支持复杂位域操作
模板引擎	Jinja2编译型渲染，自定义过滤器与全局函数
CLI工具	Click构建专业命令行，支持多格式输入、多平台输出
增量生成	SHA256哈希缓存，智能差异检测
多平台适配	策略模式支持Cortex-M/RISC-V/Xtensa
验证体系	三层验证链，结构化错误报告

未来演进方向：

1. SVD数据库集成：对接ARM CMSIS-SVD官方数据库，自动获取最新芯片定义
2. IDE插件开发：VS Code扩展，支持寄存器可视化配置与实时预览
3. AI辅助生成：基于大模型的寄存器描述自动补全与文档生成
4. CI/CD集成：GitHub Actions插件，提交时自动重新生成并验证

代码生成工具的本质是知识的一次编码、多次复用。将寄存器配置的领域知识固化到工具中，开发者得以聚焦于更高层次的架构设计与业务逻辑，这正是HAL设计最佳实践的核心要义。

---

转载自：https://blog.csdn.net/u014727709/article/details/162603747
欢迎 👍点赞✍评论⭐收藏，欢迎指正
