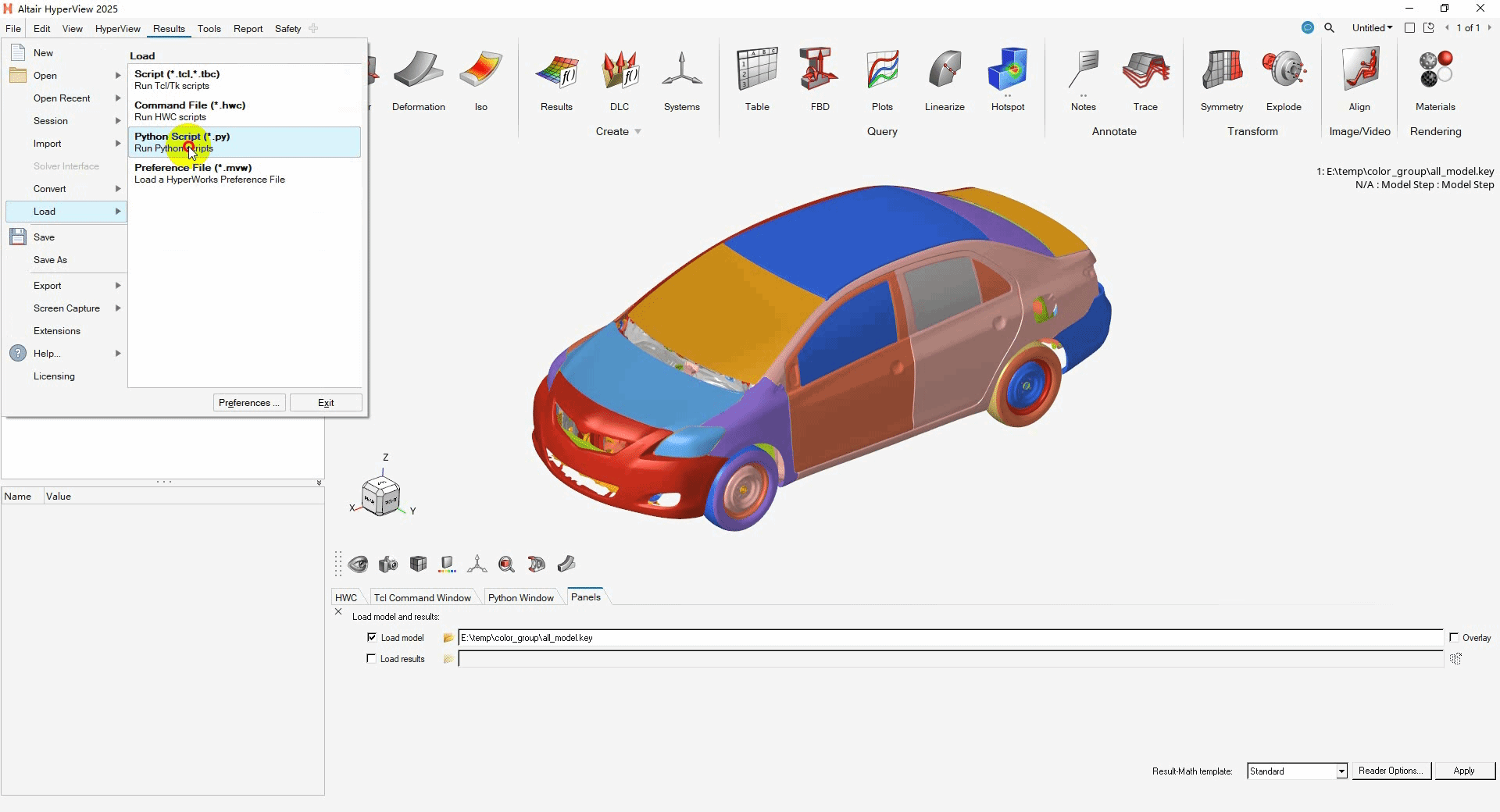

CAE仿真分析一般情况前期建模已将模型分成不同的组，每个组都对应自己独立的ID区间，基于此ID区间可将模型分组并配色，有助于后处理过程中快速选择部件，报告截图美观。

基于Python语言实现此功能的方法如下：

def group_and_color (group_name,color,*args):
    import hw
    import hw.hv as hv
    sess = hw.Session()
    # 获取当前激活的page
    page = sess.get(hw.Page)
    # 获取当前激活的window
    win = sess.get(hw.Window)
    # 获取当前激活的model
    model = win.getActiveModel()
    #
    #col1 = hv.Collection(hv.Part,model=model,populate=False)
    #col1.addByID(hv.Part,"74000000-74000020")
    # 创建 part set
    set1 = hv.Set(hv.Part,model=model,populate=False)
    # 按id 范围将需要的pid放入 set中
    if len(args) == 1:
        set1.addByID(hv.Part,"{args[0]}")
    if len(args) == 2:
        set1.addByID(hv.Part,f"{args[0]}-{args[1]}")
    if len(args) > 2:
        args_str = ",".join(str(arg) for arg in args)
        set1.addByID(hv.Part,args_str)
    # 设置set 名 颜色等属性
    set1.setAttributes(label=group_name)
    set1.setAttributes(drawStyle="shaded")
    set1.setAttributes(color=color)
#   True 显示  False 隐藏
    set1.setAttributes(visibility=True)
#
def part_and_color (color,pid):
    import hw
    import hw.hv as hv
    sess = hw.Session()
    # 获取当前激活的page
    page = sess.get(hw.Page)
    # 获取当前激活的window
    win = sess.get(hw.Window)
    # 获取当前激活的model
    model = win.getActiveModel()
    part = model.get(hv.Part,pid)
    part.setAttributes(color=color)
    part.setAttributes(meshMode="transparent")
#
def refresh_window ():
    import hw
    import hw.hv as hv
    sess = hw.Session()
    page = sess.get(hw.Page)
    win = sess.get(hw.Window)
    win.draw()
