自动化需求

获取集群内虚拟机的信息，便于统计以及查询（支持多集群）

版本：
python3.11
pyvmomi 9.0.0.0
pyvim 3.0.3

代码

import ssl
import datetime
import concurrent.futures
import pandas as pd
from pyVim.connect import SmartConnect, Disconnect
from pyVmomi import vim
from pyVmomi import vmodl

# ================= 配置区域 =================
VC_CONFIGS = {
    '192.168.1.250': {
        'user': 'administrator@vsphere.local',
        'pwd': 'xiaozhou@666.com'
    },
    # 示例：添加第二个vCenter
    # '192.168.1.100': {
    #     'user': 'administrator@vsphere.local',
    #     'pwd': 'YourPasswordHere'
    # }
}

# 导出文件名称
today = datetime.datetime.now().strftime("%Y%m%d")
OUTPUT_FILE = f"虚拟机巡检_{today}.xlsx"


# =======================================================================


def create_property_filter_spec(container, vim_type, properties):
    """创建 PropertyCollector 过滤器规范"""
    obj_spec = vmodl.query.PropertyCollector.ObjectSpec()
    obj_spec.obj = container
    obj_spec.selectSet = [
        vmodl.query.PropertyCollector.TraversalSpec(
            name='traverseEntities',
            path='view',
            skip=False,
            type=vim.view.ContainerView
        )
    ]

    prop_spec = vmodl.query.PropertyCollector.PropertySpec()
    prop_spec.type = vim_type
    prop_spec.pathSet = properties

    filter_spec = vmodl.query.PropertyCollector.FilterSpec()
    filter_spec.objectSet = [obj_spec]
    filter_spec.propSet = [prop_spec]
    return filter_spec


def get_cluster_name(host_mor, cluster_cache):
    """获取集群名称"""
    if not host_mor:
        return ''

    if host_mor in cluster_cache:
        return cluster_cache[host_mor]

    try:
        parent = host_mor.parent
        while parent:
            if isinstance(parent, vim.ClusterComputeResource):
                cluster_name = parent.name
                cluster_cache[host_mor] = cluster_name
                return cluster_name
            if hasattr(parent, 'parent'):
                parent = parent.parent
            else:
                break
        cluster_cache[host_mor] = ''
        return ''
    except Exception:
        cluster_cache[host_mor] = ''
        return ''


def calculate_uptime_days(vm, power_state, boot_time):
    """
    【核心修复】多重方式计算虚拟机运行天数
    优先使用 bootTime，失败时尝试其他方式
    """
    if power_state != 'poweredOn':
        return 0

    # 方式1：使用 runtime.bootTime（首选）
    if boot_time:
        try:
            if boot_time.tzinfo:
                boot_time = boot_time.replace(tzinfo=None)
            now = datetime.datetime.now()
            delta = now - boot_time
            days = round(delta.total_seconds() / 86400, 1)
            if days > 0:
                return days
        except Exception as e:
            pass

    # 方式2：如果 bootTime 失败，尝试从 guest 获取信息
    try:
        if hasattr(vm, 'guest') and hasattr(vm.guest, 'toolsRunningStatus'):
            # 如果 tools 正在运行，我们可以尝试其他方式
            # 这里作为备选方案，暂时返回 None 表示无法获取
            pass
    except Exception:
        pass

    # 方式3：尝试使用 config.modified（最后修改时间，仅作参考）
    try:
        if hasattr(vm, 'config') and hasattr(vm.config, 'modified'):
            modified_time = vm.config.modified
            if modified_time:
                if modified_time.tzinfo:
                    modified_time = modified_time.replace(tzinfo=None)
                now = datetime.datetime.now()
                delta = now - modified_time
                days = round(delta.total_seconds() / 86400, 1)
                # 注意：modified 不是启动时间，仅作为兜底
                return days
    except Exception:
        pass

    # 如果所有方式都失败，返回 None（在Excel中显示为空）
    return None


def get_vm_ip(guest_net, guest_ip):
    """获取IP地址"""
    try:
        if guest_ip and guest_ip != '127.0.0.1':
            return guest_ip

        if guest_net:
            for nic in guest_net:
                if hasattr(nic, 'ipAddress') and nic.ipAddress:
                    for ip in nic.ipAddress:
                        if ip and not ip.startswith('127.') and not ip.startswith('169.254.'):
                            return ip
        return ''
    except Exception:
        return ''


def get_datastore_names(datastores):
    """获取存储名称列表"""
    try:
        if not datastores:
            return ''
        ds_names = sorted(list({ds.name for ds in datastores}))
        return ', '.join(ds_names)
    except Exception:
        return ''


def get_vm_tools_status(tools_status):
    """Tools状态映射"""
    status_map = {
        'toolsNotInstalled': '未安装',
        'toolsNotRunning': '未运行',
        'toolsOld': '版本过旧',
        'toolsOk': '正常',
        'toolsBlacklisted': '已黑名单'
    }
    return status_map.get(tools_status, '')


def get_power_state(power_state):
    """电源状态映射"""
    state_map = {
        'poweredOn': '已开机',
        'poweredOff': '已关机',
        'suspended': '已挂起'
    }
    return state_map.get(power_state, '')


def process_single_vc(vc_ip, vc_cred):
    """使用 PropertyCollector 处理单个 vCenter"""
    print(f"正在连接 vCenter: {vc_ip} ...")
    si = None
    context = ssl._create_unverified_context()
    all_vm_info = []
    cluster_cache = {}
    debug_count = {'boot_time_null': 0, 'total': 0}

    try:
        # 连接vCenter
        si = SmartConnect(
            host=vc_ip,
            user=vc_cred['user'],
            pwd=vc_cred['pwd'],
            port=443,
            sslContext=context
        )
        content = si.content
        print(f"✅ 成功连接 vCenter: {vc_ip}")

        # 创建 ContainerView
        print(f"正在创建虚拟机视图...")
        container = content.viewManager.CreateContainerView(
            content.rootFolder, [vim.VirtualMachine], True
        )

        # 【修改】增加 config.modified 作为备选时间
        properties = [
            'name',
            'runtime.host',
            'runtime.powerState',
            'runtime.bootTime',
            'guest.ipAddress',
            'guest.net',
            'guest.toolsStatus',
            'config.hardware.memoryMB',
            'config.hardware.numCPU',
            'config.instanceUuid',
            'config.annotation',
            'config.modified',  # 新增：最后修改时间作为备选
            'datastore',
            'summary.storage.committed'
        ]

        # 创建 PropertyCollector 过滤器
        filter_spec = create_property_filter_spec(container, vim.VirtualMachine, properties)

        print(f"🚀 开始批量获取虚拟机属性 (PropertyCollector)...")
        pc = content.propertyCollector
        result = pc.RetrieveProperties(specSet=[filter_spec])

        container.Destroy()
        print(f"📊 {vc_ip} 共获取 {len(result)} 台虚拟机数据")

        # 解析结果
        print(f"正在解析数据...")
        for i, obj_content in enumerate(result, 1):
            try:
                # 将属性转换为字典
                props = {p.name: p.val for p in obj_content.propSet}

                # 获取主机和集群
                host_mor = props.get('runtime.host')
                host_name = host_mor.name if host_mor else ''
                cluster_name = get_cluster_name(host_mor, cluster_cache) if host_mor else ''

                # 获取电源状态
                power_state = props.get('runtime.powerState')

                # 【核心修复】计算运行天数
                debug_count['total'] += 1
                boot_time = props.get('runtime.bootTime')

                if power_state == 'poweredOn' and not boot_time:
                    debug_count['boot_time_null'] += 1

                # 传递完整 props 给计算函数
                uptime_days = calculate_uptime_days(
                    None,  # 这里不需要完整 vm 对象
                    power_state,
                    boot_time
                )

                # 如果 bootTime 失败，尝试使用 config.modified
                if uptime_days is None and power_state == 'poweredOn':
                    modified_time = props.get('config.modified')
                    if modified_time:
                        try:
                            if modified_time.tzinfo:
                                modified_time = modified_time.replace(tzinfo=None)
                            now = datetime.datetime.now()
                            delta = now - modified_time
                            uptime_days = round(delta.total_seconds() / 86400, 1)
                        except Exception:
                            pass

                # 计算已用空间（GB）
                committed_bytes = props.get('summary.storage.committed', 0)
                used_space_gb = round(committed_bytes / (1024 ** 3), 2) if committed_bytes else 0

                # 构建信息字典
                vm_info = {
                    'vCenter IP': vc_ip,
                    '虚拟机名称': props.get('name', ''),
                    '所在集群': cluster_name,
                    '所在主机': host_name,
                    '电源状态': get_power_state(power_state),
                    'IP地址': get_vm_ip(props.get('guest.net'), props.get('guest.ipAddress')),
                    '内存大小(GB)': round(props.get('config.hardware.memoryMB', 0) / 1024, 2),
                    'CPU数量': props.get('config.hardware.numCPU', 0),
                    'UUID': props.get('config.instanceUuid', ''),
                    '备注信息': props.get('config.annotation', '').strip() if props.get('config.annotation') else '',
                    'vmtools状态': get_vm_tools_status(props.get('guest.toolsStatus')),
                    '运行天数': uptime_days,  # 可能是数字或None
                    '存储名称': get_datastore_names(props.get('datastore')),
                    '已用空间(GB)': used_space_gb
                }
                all_vm_info.append(vm_info)

                if i % 1000 == 0:
                    print(f"   {vc_ip} 已解析: {i}/{len(result)}")

            except Exception as e:
                print(f"   ⚠️  解析第 {i} 台虚拟机时出错: {str(e)}")
                continue

        # 打印调试信息
        print(f"\n📊 {vc_ip} 运行天数统计:")
        print(f"   总计虚拟机: {debug_count['total']}")

        print(f"✅ {vc_ip} 处理完成，共收集 {len(all_vm_info)} 台")

    except Exception as e:
        print(f"❌ 处理 vCenter {vc_ip} 失败: {str(e)}")
        import traceback
        traceback.print_exc()
    finally:
        if si:
            Disconnect(si)
            print(f"已断开 vCenter {vc_ip} 连接\n")

    return all_vm_info


def main():
    print("=" * 60)
    print("🚀 多vCenter虚拟机信息收集工具")
    print("=" * 60)

    start_time = datetime.datetime.now()
    total_vm_list = []

    # 多 vCenter 并发处理
    print(f"\n开始处理 {len(VC_CONFIGS)} 个 vCenter...")
    with concurrent.futures.ThreadPoolExecutor(max_workers=len(VC_CONFIGS)) as executor:
        future_to_vc = {
            executor.submit(process_single_vc, vc_ip, vc_cred): vc_ip
            for vc_ip, vc_cred in VC_CONFIGS.items()
        }

        for future in concurrent.futures.as_completed(future_to_vc):
            vc_ip = future_to_vc[future]
            try:
                vc_vm_list = future.result()
                total_vm_list.extend(vc_vm_list)
            except Exception as e:
                print(f"❌ vCenter {vc_ip} 处理异常: {str(e)}")

    # 导出到Excel
    if total_vm_list:
        print(f"\n📝 正在导出 {len(total_vm_list)} 台虚拟机信息到 {OUTPUT_FILE} ...")
        df = pd.DataFrame(total_vm_list)

        # 按要求的列顺序排列
        column_order = [
            'vCenter IP', '虚拟机名称', '所在集群', '所在主机',
            '电源状态', 'IP地址', '内存大小(GB)', 'CPU数量',
            'UUID', '备注信息', 'vmtools状态', '运行天数', '存储名称', '已用空间(GB)'
        ]
        df = df[column_order]

        # 使用 openpyxl 引擎
        with pd.ExcelWriter(OUTPUT_FILE, engine='openpyxl') as writer:
            df.to_excel(writer, index=False, sheet_name='虚拟机清单')

            # 调整列宽
            worksheet = writer.sheets['虚拟机清单']
            column_widths = {
                'A': 15, 'B': 30, 'C': 20, 'D': 25, 'E': 10,
                'F': 18, 'G': 12, 'H': 10, 'I': 35, 'J': 30,
                'K': 12, 'L': 12, 'M': 40, 'N': 15
            }
            for col, width in column_widths.items():
                worksheet.column_dimensions[col].width = width

        end_time = datetime.datetime.now()
        elapsed = (end_time - start_time).total_seconds()
        print(f"✅ 导出完成！文件: {OUTPUT_FILE}")
        print(f"⏱️  总耗时: {elapsed:.2f} 秒")
    else:
        print("⚠️  未收集到任何虚拟机信息")


if __name__ == "__main__":
    main()

使用方法

在代码内填入vc的有关信息，然后运行脚本即可得到虚拟机信息的xlsx文件

200台虚拟机获取速度约1s

获取的信息包括vCenter IP    虚拟机名称    所在集群    所在主机    电源状态    IP地址    内存大小(GB)    CPU数量    UUID    备注信息    vmtools状态    运行天数    存储名称    已用空间(GB)

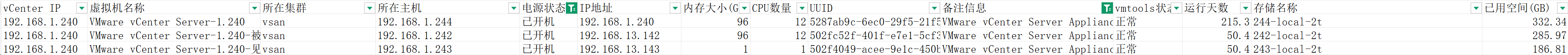

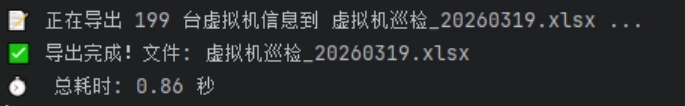

效果如下图：

脚本为ai编写，使用前请使用测试环境进行测试
