GLM-Image 是一种图像生成模型，采用混合自回归+扩散解码器架构。

近日，智谱开源了首个工业级离散自回归图像生成模型 GLM-Image，GLM-Image 采用混合架构，将自回归模块与扩散解码器相结合。自回归部分部分基于 GLM-4-9B-0414 并由其初始化，该模型拥有 90 亿个参数；而扩散解码器则遵循 CogView4 的思路，采用单流 DiT 结构，拥有 70 亿个参数。在整体图像生成质量方面，GLM-Image 与主流的潜在扩散方法相符，但在文本渲染和知识密集型生成场景中展现出显著优势。它在需要精确语义理解和复杂信息表达的任务中表现尤为出色，同时保持了高保真度和细粒度细节生成的强大能力。除了文本到图像的生成之外，GLM-Image 还支持丰富的图像到图像任务，包括图像编辑、风格迁移、身份保持生成和多主体一致性等。

效果展示

文生图

图生图

相关链接

• 博客：https://docs.z.ai/guides/image/glm-image
• 主页：https://z.ai/blog/glm-image
• 模型：

• https://modelscope.cn/models/ZhipuAI/GLM-Image
• https://huggingface.co/zai-org/GLM-Image

介绍

GLM-Image 是一种图像生成模型，采用混合自回归+扩散解码器架构。在整体图像生成质量方面，GLM-Image 与主流的潜在扩散方法相符，但在文本渲染和知识密集型生成场景中展现出显著优势。它在需要精确语义理解和复杂信息表达的任务中表现尤为出色，同时保持了高保真度和细粒度细节生成的强大能力。除了文本到图像的生成之外，GLM-Image 还支持丰富的图像到图像任务，包括图像编辑、风格迁移、身份保持生成和多主体一致性等。

方法概述

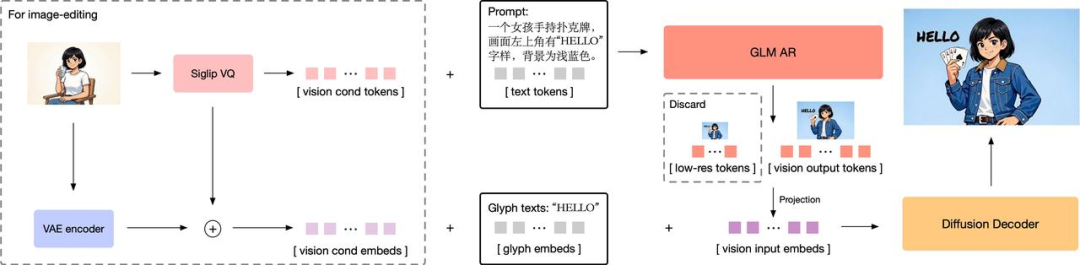

• 模型架构：混合自回归+扩散解码器设计。

• 自回归生成器：一个基于GLM-4-9B-0414初始化的 9B 参数模型，并扩展了词汇表以包含视觉标记。该模型首先生成约 256 个标记的紧凑编码，然后扩展到 1K 至 4K 个标记，对应于 1K 至 2K 的高分辨率图像输出。

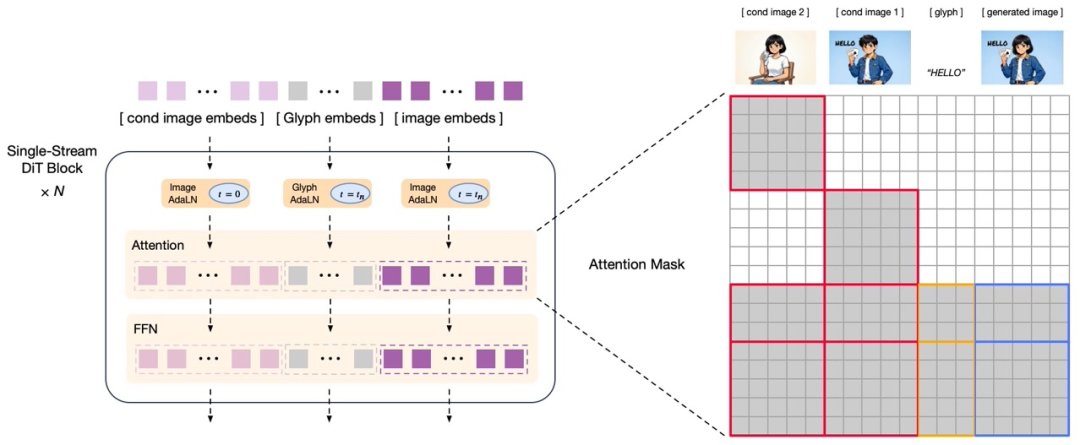

• 扩散解码器：一种基于单流 DiT 架构的 7B 参数解码器，用于潜在空间图像解码。它配备了字形编码器文本模块，显著提高了图像中文本的渲染精度。



• 训练后采用解耦强化学习：该模型引入了使用 GRPO 算法的细粒度模块化反馈策略，从而显著提高了语义理解和视觉细节质量。
• 自回归模块：提供低频反馈信号，侧重于美学和语义一致性，从而提高指令遵循性和艺术表现力。
• 解码器模块：提供高频反馈，以提高细节保真度和文本准确性，从而实现高度逼真的纹理以及更精确的文本渲染。

GLM-Image 支持在单个模型中同时生成文本到图像和图像到图像。

• 文本转图像：根据文本描述生成高细节图像，在信息密集的场景中表现尤为出色。
• 图像到图像：支持多种任务，包括图像编辑、风格迁移、多主体一致性以及人物和物体的身份保留生成。

评估指标

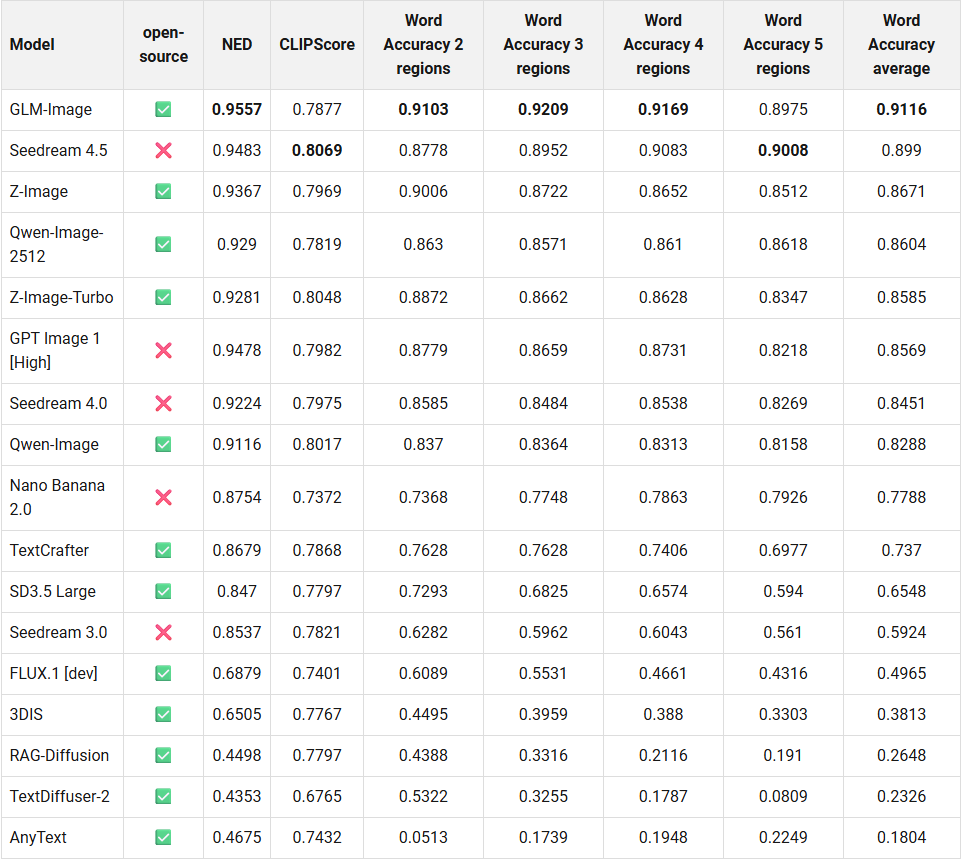

文本渲染基准测试

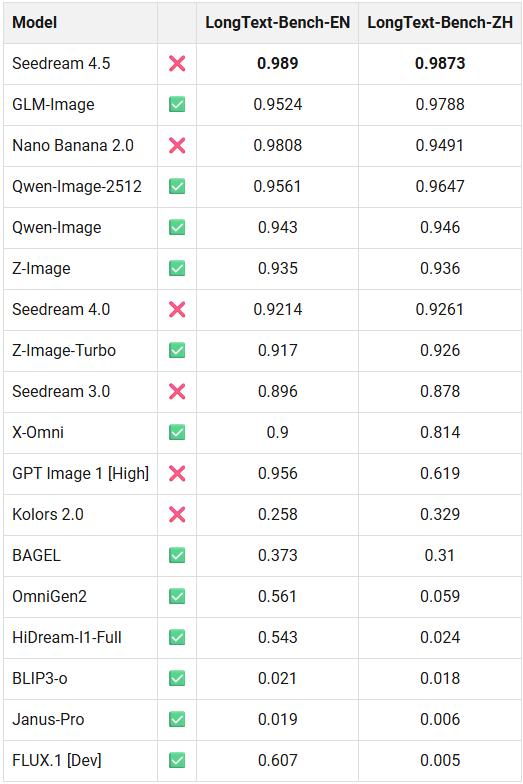

长文本基准测试

快速入门

pip install git+https://github.com/huggingface/transformers.git
pip install git+https://github.com/huggingface/diffusers.git

文本转图像生成

import torch
from diffusers.pipelines.glm_image import GlmImagePipeline

pipe = GlmImagePipeline.from_pretrained("zai-org/GLM-Image", torch_dtype=torch.bfloat16, device_map="cuda")
prompt = "A beautifully designed modern food magazine style dessert recipe illustration, themed around a raspberry mousse cake. The overall layout is clean and bright, divided into four main areas: the top left features a bold black title 'Raspberry Mousse Cake Recipe Guide', with a soft-lit close-up photo of the finished cake on the right, showcasing a light pink cake adorned with fresh raspberries and mint leaves; the bottom left contains an ingredient list section, titled 'Ingredients' in a simple font, listing 'Flour 150g', 'Eggs 3', 'Sugar 120g', 'Raspberry puree 200g', 'Gelatin sheets 10g', 'Whipping cream 300ml', and 'Fresh raspberries', each accompanied by minimalist line icons (like a flour bag, eggs, sugar jar, etc.); the bottom right displays four equally sized step boxes, each containing high-definition macro photos and corresponding instructions, arranged from top to bottom as follows: Step 1 shows a whisk whipping white foam (with the instruction 'Whip egg whites to stiff peaks'), Step 2 shows a red-and-white mixture being folded with a spatula (with the instruction 'Gently fold in the puree and batter'), Step 3 shows pink liquid being poured into a round mold (with the instruction 'Pour into mold and chill for 4 hours'), Step 4 shows the finished cake decorated with raspberries and mint leaves (with the instruction 'Decorate with raspberries and mint'); a light brown information bar runs along the bottom edge, with icons on the left representing 'Preparation time: 30 minutes', 'Cooking time: 20 minutes', and 'Servings: 8'. The overall color scheme is dominated by creamy white and light pink, with a subtle paper texture in the background, featuring compact and orderly text and image layout with clear information hierarchy."
image = pipe(
    prompt=prompt,
    height=32 * 32,
    width=36 * 32,
    num_inference_steps=50,
    guidance_scale=1.5,
    generator=torch.Generator(device="cuda").manual_seed(42),
).images[0]

image.save("output_t2i.png")

图生图

import torch
from diffusers.pipelines.glm_image import GlmImagePipeline
from PIL import Image

pipe = GlmImagePipeline.from_pretrained("zai-org/GLM-Image", torch_dtype=torch.bfloat16, device_map="cuda")
image_path = "cond.jpg"
prompt = "Replace the background of the snow forest with an underground station featuring an automatic escalator."
image = Image.open(image_path).convert("RGB")
image = pipe(
    prompt=prompt,
    image=[image],  # can input multiple images for multi-image-to-image generation such as [image, image1]
    height=33 * 32, # Must set height even it is same as input image
    width=32 * 32, # Must set width even it is same as input image
    num_inference_steps=50,
    guidance_scale=1.5,
    generator=torch.Generator(device="cuda").manual_seed(42),
).images[0]

image.save("output_i2i.png")
