vue-element-plus-admin(vue3)二次开发入门指南(9)-用Tauri v2打包成windows桌面程序(exe)访问后端自签名https API 问题
当我们根据 二次开发入门指南(8)中的教程把.env.win 的VITE_API_BASE_PATH=https://{你的IP}:9200 配置文件如下 这里设置的是IP是127.0.0.1
# 环境
VITE_NODE_ENV=production
# 接口前缀
VITE_API_BASE_PATH=https://127.0.0.1:9200
# 打包路径
VITE_BASE_PATH=/dist-win/
# 是否删除debugger
VITE_DROP_DEBUGGER=false
# 是否删除console.log
VITE_DROP_CONSOLE=false
# 是否sourcemap
VITE_SOURCEMAP=true
# 输出路径
VITE_OUT_DIR=dist-win
# 标题
VITE_APP_TITLE=二次开发测试
# 是否包分析
VITE_USE_BUNDLE_ANALYZER=false
# 是否全量引入element-plus样式
VITE_USE_ALL_ELEMENT_PLUS_STYLE=false
# 是否开启mock
VITE_USE_MOCK=true
# 是否切割css
VITE_USE_CSS_SPLIT=true
# 是否使用在线图标
VITE_USE_ONLINE_ICON=true
# 是否隐藏全局设置按钮
VITE_HIDE_GLOBAL_SETTING=false

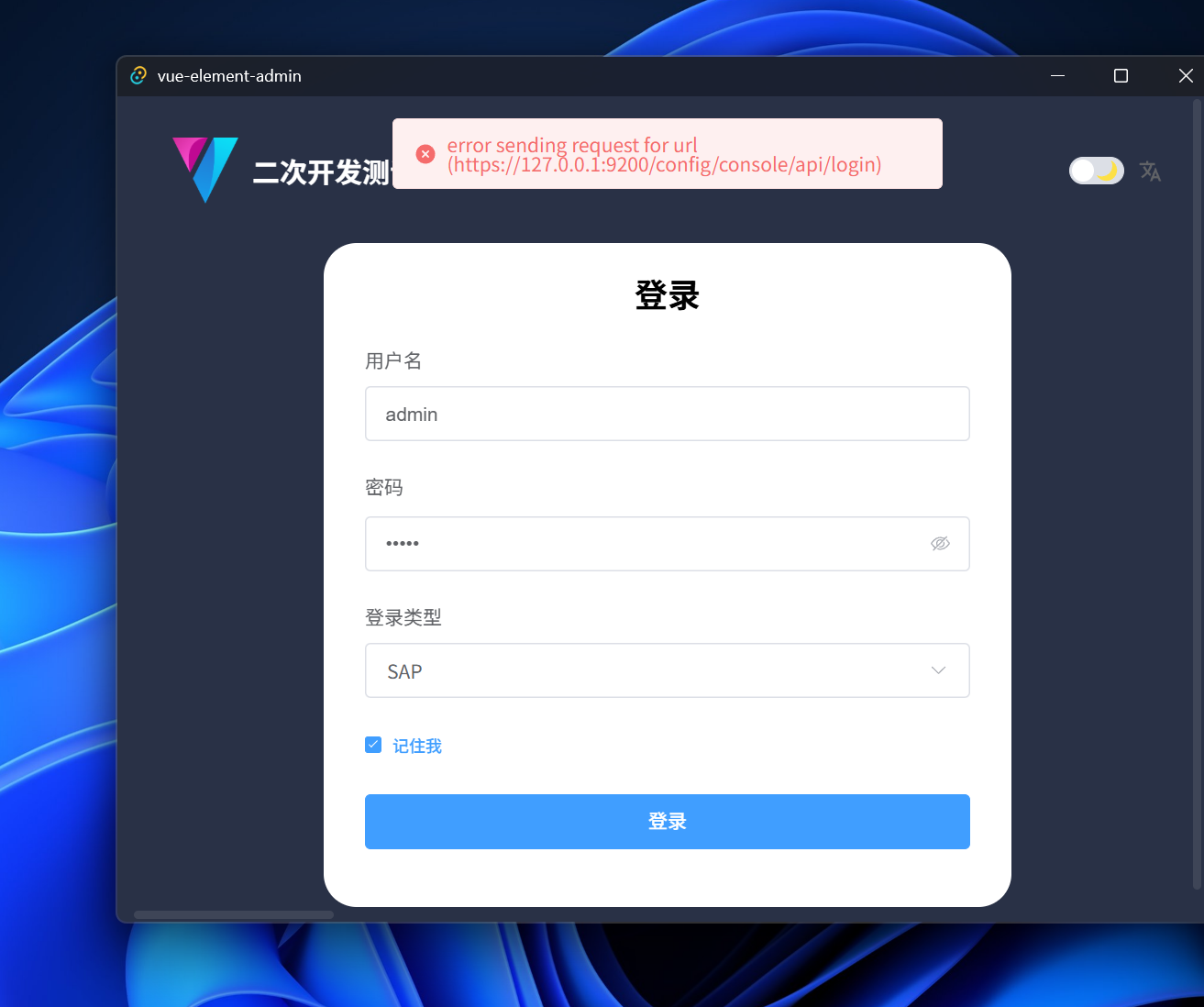

访问自签名https web服务会报下面错误

因为vue-element-plus-admin使用的axios做为封装API请求基础框架,无法直接使用tauri的tauri-plugin-http,根据二次开发入门指南(8)中的教程中的依赖,我们使用的是axios-tauri-api-adapter 是2.0.6 ,使用的tauri-plugin-http v2.3.0来达到访问后端API的目的。当我们把后端地址改为自签名的https地址时候,由于无法做服务器验证所以会发生此错误。
通过观察 tauri-plugin-http v2.3.0的代码command.rs和index.ts,

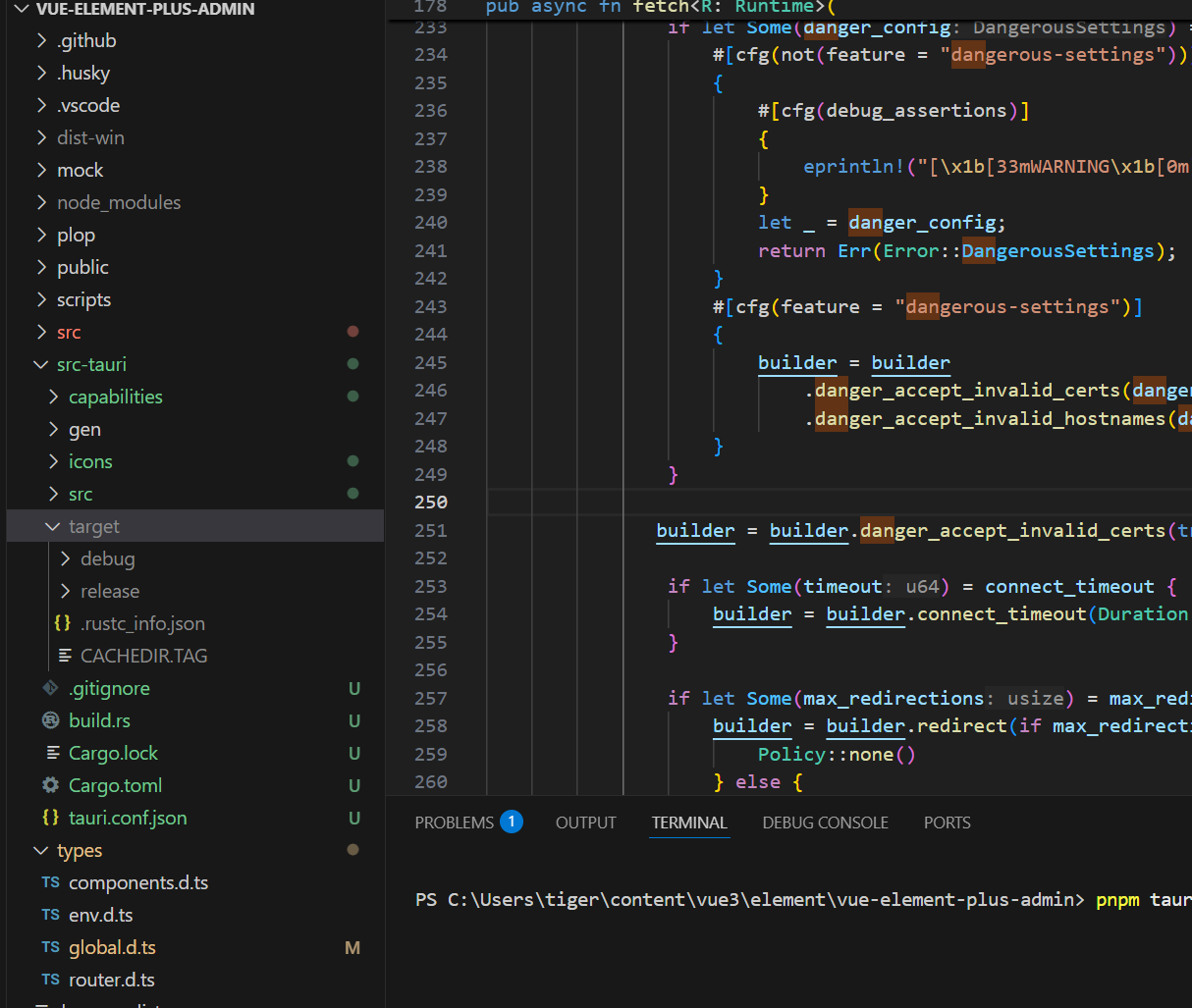

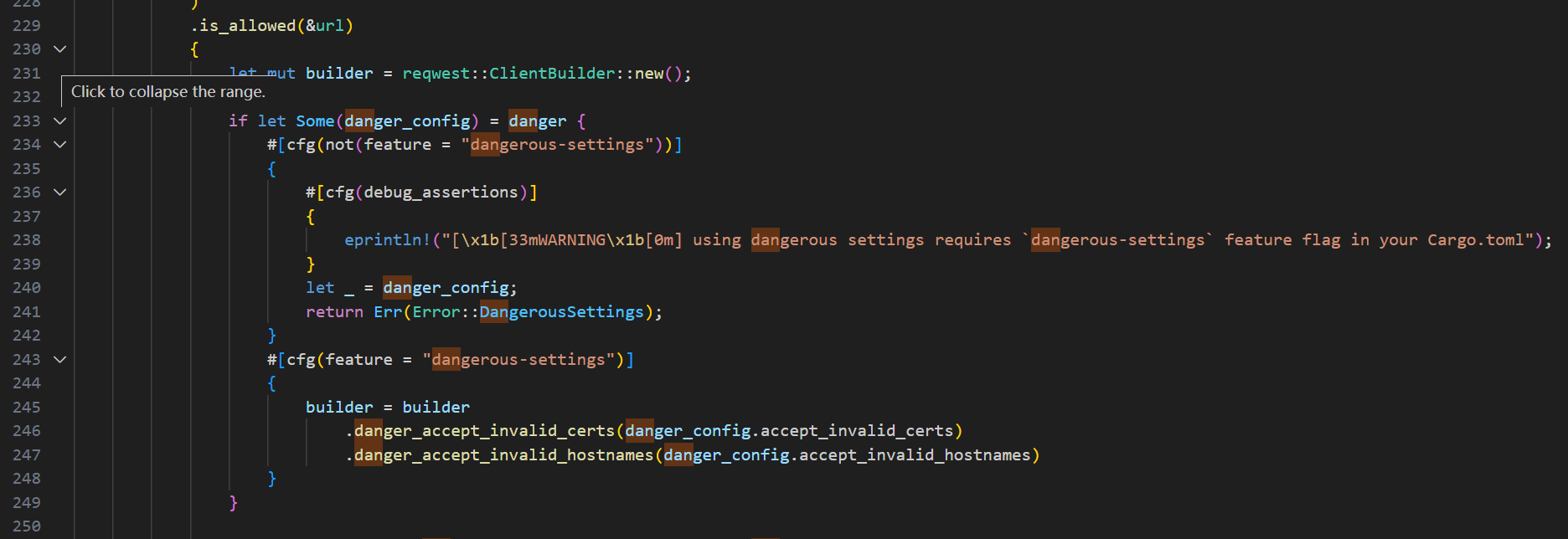

command.rs 在C:\Users\{用户}\.cargo\registry\src\{你的index码}\tauri-plugin-http-2.3.0\src\ 文件夹下,如下图233-250行

我们可以通过条件编译的方式编译出实现访问自签名的功能 tauri-plugin-http
index.ts在 C:\Users\{用户}\.cargo\registry\src\{你的index码}\tauri-plugin-http-2.3.0\guest-js\ 文件夹下如下图
// Copyright 2019-2023 Tauri Programme within The Commons Conservancy
// SPDX-License-Identifier: Apache-2.0
// SPDX-License-Identifier: MIT
/**
* Make HTTP requests with the Rust backend.
*
* ## Security
*
* This API has a scope configuration that forces you to restrict the URLs that can be accessed using glob patterns.
*
* For instance, this scope configuration only allows making HTTP requests to all subdomains for `tauri.app` except for `https://private.tauri.app`:
* ```json
* {
* "permissions": [
* {
* "identifier": "http:default",
* "allow": [{ "url": "https://*.tauri.app" }],
* "deny": [{ "url": "https://private.tauri.app" }]
* }
* ]
* }
* ```
* Trying to execute any API with a URL not configured on the scope results in a promise rejection due to denied access.
*
* @module
*/
import { invoke } from '@tauri-apps/api/core'
/**
* Configuration of a proxy that a Client should pass requests to.
*
* @since 2.0.0
*/
export interface Proxy {
/**
* Proxy all traffic to the passed URL.
*/
all?: string | ProxyConfig
/**
* Proxy all HTTP traffic to the passed URL.
*/
http?: string | ProxyConfig
/**
* Proxy all HTTPS traffic to the passed URL.
*/
https?: string | ProxyConfig
}
export interface ProxyConfig {
/**
* The URL of the proxy server.
*/
url: string
/**
* Set the `Proxy-Authorization` header using Basic auth.
*/
basicAuth?: {
username: string
password: string
}
/**
* A configuration for filtering out requests that shouldn't be proxied.
* Entries are expected to be comma-separated (whitespace between entries is ignored)
*/
noProxy?: string
}
/**
* Options to configure the Rust client used to make fetch requests
*
* @since 2.0.0
*/
export interface ClientOptions {
/**
* Defines the maximum number of redirects the client should follow.
* If set to 0, no redirects will be followed.
*/
maxRedirections?: number
/** Timeout in milliseconds */
connectTimeout?: number
/**
* Configuration of a proxy that a Client should pass requests to.
*/
proxy?: Proxy
/**
* Configuration for dangerous settings on the client such as disabling SSL verification.
*/
danger?: DangerousSettings
}
/**
* Configuration for dangerous settings on the client such as disabling SSL verification.
*
* @since 2.3.0
*/
export interface DangerousSettings {
/**
* Disables SSL verification.
*/
acceptInvalidCerts?: boolean
/**
* Disables hostname verification.
*/
acceptInvalidHostnames?: boolean
}
const ERROR_REQUEST_CANCELLED = 'Request canceled'
/**
* Fetch a resource from the network. It returns a `Promise` that resolves to the
* `Response` to that `Request`, whether it is successful or not.
*
* @example
* ```typescript
* const response = await fetch("http://my.json.host/data.json");
* console.log(response.status); // e.g. 200
* console.log(response.statusText); // e.g. "OK"
* const jsonData = await response.json();
* ```
*
* @since 2.0.0
*/
export async function fetch(
input: URL | Request | string,
init?: RequestInit & ClientOptions
): Promise<Response> {
// abort early here if needed
const signal = init?.signal
if (signal?.aborted) {
throw new Error(ERROR_REQUEST_CANCELLED)
}
const maxRedirections = init?.maxRedirections
const connectTimeout = init?.connectTimeout
const proxy = init?.proxy
const danger = init?.danger
// Remove these fields before creating the request
if (init) {
delete init.maxRedirections
delete init.connectTimeout
delete init.proxy
delete init.danger
}
const headers = init?.headers
? init.headers instanceof Headers
? init.headers
: new Headers(init.headers)
: new Headers()
const req = new Request(input, init)
const buffer = await req.arrayBuffer()
const data =
buffer.byteLength !== 0 ? Array.from(new Uint8Array(buffer)) : null
// append new headers created by the browser `Request` implementation,
// if not already declared by the caller of this function
for (const [key, value] of req.headers) {
if (!headers.get(key)) {
headers.set(key, value)
}
}
const headersArray =
headers instanceof Headers
? Array.from(headers.entries())
: Array.isArray(headers)
? headers
: Object.entries(headers)
// eslint-disable-next-line @typescript-eslint/no-unsafe-assignment
const mappedHeaders: Array<[string, string]> = headersArray.map(
([name, val]) => [
name,
// we need to ensure we have all header values as strings
// eslint-disable-next-line
typeof val === 'string' ? val : (val as any).toString()
]
)
// abort early here if needed
if (signal?.aborted) {
throw new Error(ERROR_REQUEST_CANCELLED)
}
const rid = await invoke<number>('plugin:http|fetch', {
clientConfig: {
method: req.method,
url: req.url,
headers: mappedHeaders,
data,
maxRedirections,
connectTimeout,
proxy,
danger
}
})
const abort = () => invoke('plugin:http|fetch_cancel', { rid })
// abort early here if needed
if (signal?.aborted) {
// we don't care about the result of this proimse
// eslint-disable-next-line @typescript-eslint/no-floating-promises
abort()
throw new Error(ERROR_REQUEST_CANCELLED)
}
signal?.addEventListener('abort', () => void abort())
interface FetchSendResponse {
status: number
statusText: string
headers: [[string, string]]
url: string
rid: number
}
const {
status,
statusText,
url,
headers: responseHeaders,
rid: responseRid
} = await invoke<FetchSendResponse>('plugin:http|fetch_send', {
rid
})
const body = await invoke<ArrayBuffer | number[]>(
'plugin:http|fetch_read_body',
{
rid: responseRid
}
)
const res = new Response(
body instanceof ArrayBuffer && body.byteLength !== 0
? body
: body instanceof Array && body.length > 0
? new Uint8Array(body)
: null,
{
status,
statusText
}
)
// url and headers are read only properties
// but seems like we can set them like this
//
// we define theme like this, because using `Response`
// constructor, it removes url and some headers
// like `set-cookie` headers
Object.defineProperty(res, 'url', { value: url })
Object.defineProperty(res, 'headers', {
value: new Headers(responseHeaders)
})
return res
}
前端调用时候,通过设置ClientOptions 里面的danger :DangerousSettings选项来实现调用自签名的https后端API,但是我们使用的是axios-tauri-api-adapter来调用tauri-plugin-http,无法实现这种方式的调用,那我们只能通过修改command.rs的方式来实现调用自签名的https(对host和签名不作验证),修改如下,在C:\Users\{用户}\.cargo\registry\src\{你的index码}\tauri-plugin-http-2.3.0\src\command.rs的250行添加一行
builder = builder.danger_accept_invalid_certs(true).danger_accept_invalid_hostnames(true);

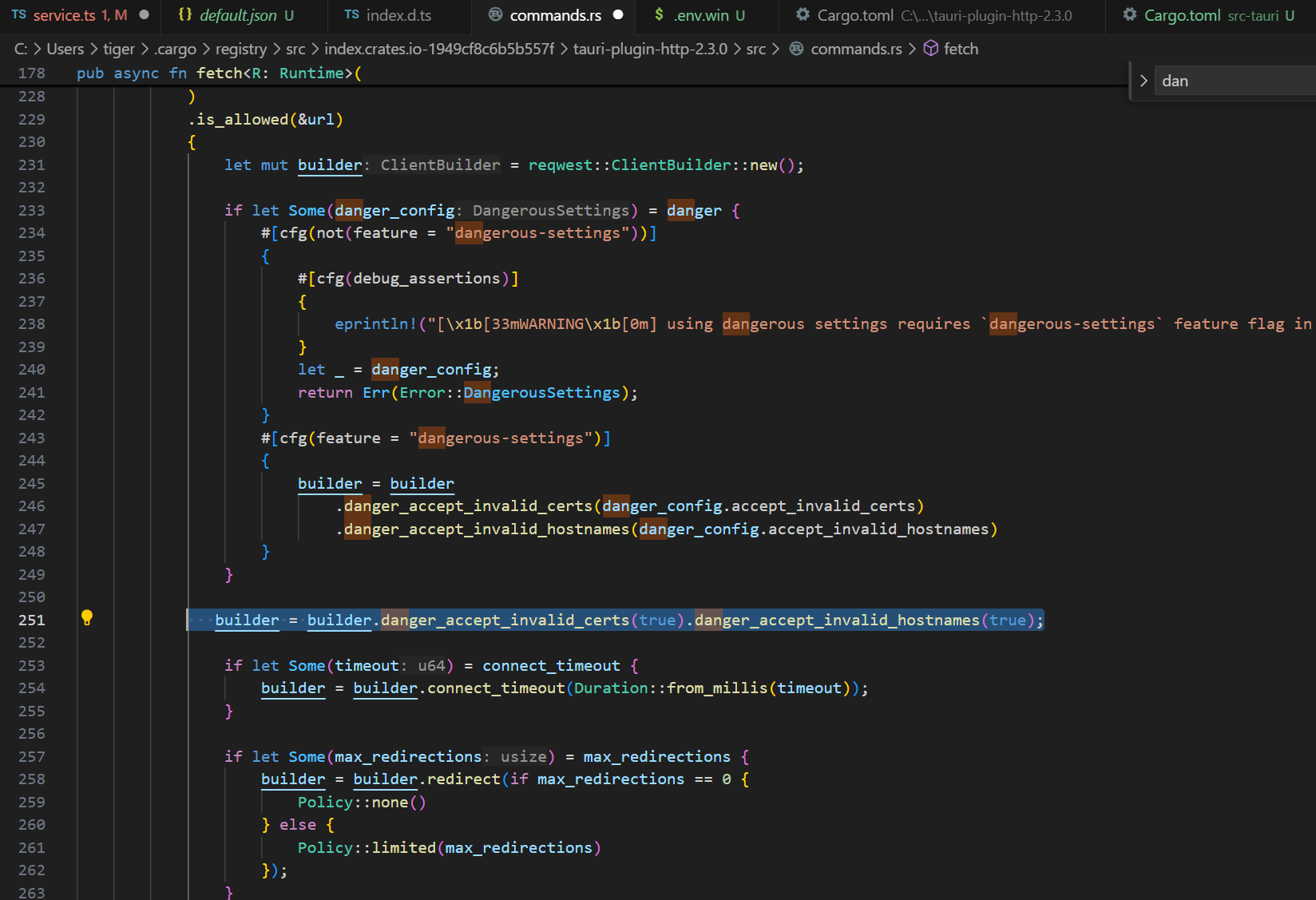

如下图所示

修改完保存后,需要在vscode里删掉vue-element-plus-admin\src-tauri\target 文件夹,以防止有缓存

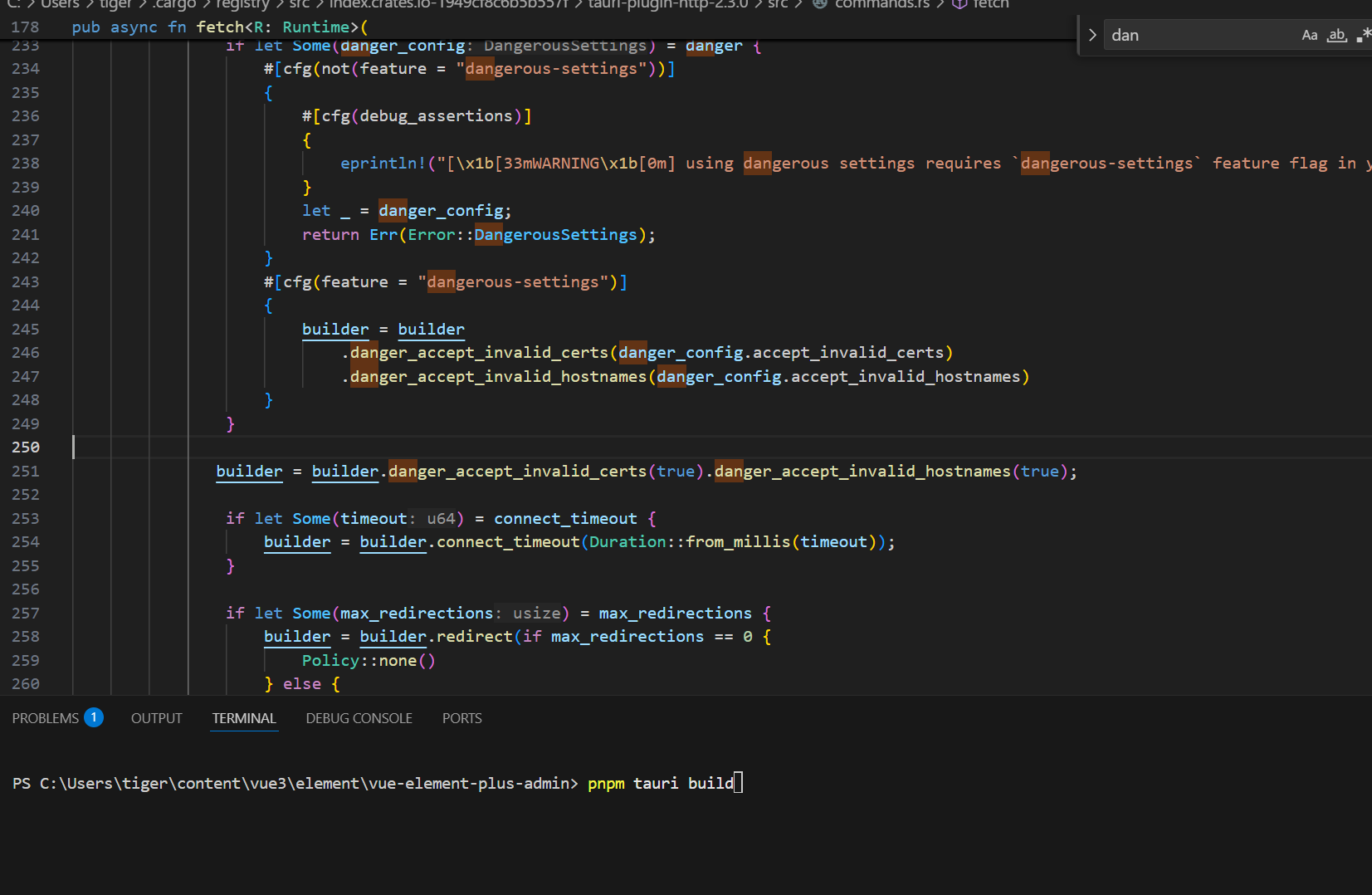

然后在终端里执行打包命令如下图

执行完打包命令得到的window安装包就能正确使用自签名的https的后端API了

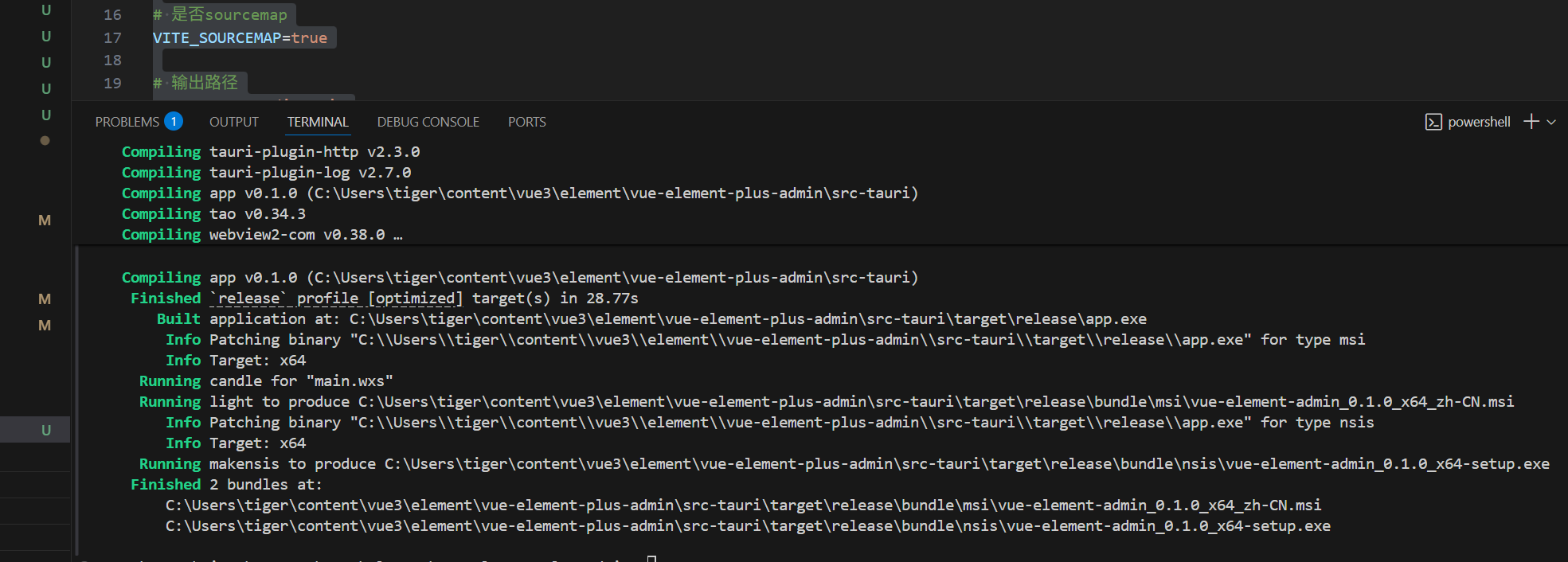

如下图所示
