一.Layer-3 Networking Extension

neutron l3作为一种API扩展，向租户提供了路由和NAT功能。

l3扩展包含两种资源：

router：在不同内部子网中转发数据包；通过指定内部网关做NAT。每一个子网对应router上的一个端口，这个端口的ip就是子网的网关。

floating ip：代表一个外部网络的IP，映射到内部网络的端口上。当网络的router:external属性为True时，floating ip才能定义。

这两种资源都对应有不同的属性。支持CRUD操作。

二.代码分析

既然neutron中支持了l3扩展，那么怎样通过API来创建router或者floating ip，以提供路由以及NAT的功能的呢？

主要有以下几个步骤：
1.租户通过horizon，nova命令或者自定义的脚本，发送与router或floating ip相关的操作。
2.这些API请求发送到neutron server，通过neutron提供的API extension相对应。
3.实现这些API extension的操作，比如说create_router，则由具体的plugin和database来共同完成。
4.plugin会通过rpc机制与计算网络节点上运行的l3 agent来执行l3 转发和NAT的功能。

l3.py

源代码目录：neutron/extensions/l3.py

class RouterPluginBase(object):

    @abc.abstractmethod
    def create_router(self, context, router):
        pass

    @abc.abstractmethod
    def update_router(self, context, id, router):
        pass

    @abc.abstractmethod
    def get_router(self, context, id, fields=None):
        pass

    @abc.abstractmethod
    def delete_router(self, context, id):
        pass

    @abc.abstractmethod
    def get_routers(self, context, filters=None, fields=None,
                    sorts=None, limit=None, marker=None, page_reverse=False):
        pass

    @abc.abstractmethod
    def add_router_interface(self, context, router_id, interface_info):
        pass

    @abc.abstractmethod
    def remove_router_interface(self, context, router_id, interface_info):
        pass

    @abc.abstractmethod
    def create_floatingip(self, context, floatingip):
        pass

    @abc.abstractmethod
    def update_floatingip(self, context, id, floatingip):
        pass

    @abc.abstractmethod
    def get_floatingip(self, context, id, fields=None):
        pass

    @abc.abstractmethod
    def delete_floatingip(self, context, id):
        pass

    @abc.abstractmethod
    def get_floatingips(self, context, filters=None, fields=None,
                        sorts=None, limit=None, marker=None,
                        page_reverse=False):
        pass

    def get_routers_count(self, context, filters=None):
        raise NotImplementedError()

    def get_floatingips_count(self, context, filters=None):
        raise NotImplementedError()

   这个模块中，class RouterPluginBase定义了plugin中需要实现的方法。


l3_db.py

源码目录：/neutron/db/l3_db.py
这个模块中，class L3_NAT_db_mixin继承了上面l3模块的class RouterPluginBase，因此在RouterPluginBase中定义的抽象方法就要在这里实现了。
类注释中写道，Mixin class to add L3/NAT router methods to db_plugin_base_v2。

在类的开始，有这样一段代码：

@property
    def l3_rpc_notifier(self):
        if not hasattr(self, '_l3_rpc_notifier'):
            self._l3_rpc_notifier = l3_rpc_agent_api.L3AgentNotifyAPI()
        return self._l3_rpc_notifier

   说明l3_rpc_notifier，是模块l3_rpc_agent_api中类L3AgentNotifyAPI的一个实例。


l3_rpc_agent_api模块源码在/neutron/api/rpc/agentnotifiers/l3_rpc_agent_api.py。

class L3AgentNotifyAPI(n_rpc.RpcProxy):
    """API for plugin to notify L3 agent."""
    BASE_RPC_API_VERSION = '1.0'

    def __init__(self, topic=topics.L3_AGENT):
        super(L3AgentNotifyAPI, self).__init__(
            topic=topic, default_version=self.BASE_RPC_API_VERSION)

    def _notification_host(self, context, method, payload, host):
        """Notify the agent that is hosting the router."""        ...

    def _agent_notification(self, context, method, router_ids,
                            operation, data):
        """Notify changed routers to hosting l3 agents."""
        ...
def _notification(self, context, method, router_ids, operation, data):
        """Notify all the agents that are hosting the routers."""
        ...def _notification_fanout(self, context, method, router_id):
        """Fanout the deleted router to all L3 agents."""
        ...def agent_updated(self, context, admin_state_up, host):
        self._notification_host(context, 'agent_updated',
                                {'admin_state_up': admin_state_up},
                                host)

    def router_deleted(self, context, router_id):
        self._notification_fanout(context, 'router_deleted', router_id)

    def routers_updated(self, context, router_ids, operation=None, data=None):
        if router_ids:
            self._notification(context, 'routers_updated', router_ids,
                               operation, data)

    def router_removed_from_agent(self, context, router_id, host):
        self._notification_host(context, 'router_removed_from_agent',
                                {'router_id': router_id}, host)

    def router_added_to_agent(self, context, router_ids, host):
        self._notification_host(context, 'router_added_to_agent',
                                router_ids, host)

这个类主要用于plugin发送rpc通知给l3 agent。

rpc处理

在上面的l3_db.py中，会将涉及router和floating ip的处理读取或者写入到数据中。但是还有一些操作不仅如此，还需要通过rpc（通过调用l3_rpc_agent_api中的函数，这些操作大部分会去调用routers_updated），通知l3 agent进行处理。

这些需要处理的地方包括：update_router，delete_router，add_router_interface，remove_router_interface，create_floatingip，update_floatingip，delete_floatingip，disassociate_floatingips等操作。

l3_agent.py

源码目录：neutron/agent/l3_agent.py

l3 agent使用Linux ip协议栈和iptables来实现router和NAT的功能。

这时候，如果在horizon的界面创建一个路由，不进行任何操作的话，plugin只会操作数据库，l3 agent不会作处理。而当update router，如设置外部网关时，l3才会去处理请求。

l3 agent使用service框架启动服务，其manager类为neutron.agent.l3_agent.L3NATAgentWithStateReport，该类继承自L3NATAgent，主要实现了基于rpc的_report_state向PluginReportStateAPI(topic为q-plugin)汇报状态信息，这些信息由各个plugin来处理（比如ml2中通过start_rpc_listeners来注册该topic的消费者）。

L3NATAgent类是最主要的L3 Manager类，该类继承关系为 class L3NATAgent(firewall_l3_agent.FWaaSL3AgentRpcCallback, manager.Manager) ；FWaaSL3AgentRpcCallback主要是加载防火墙驱动，并创建RPC与Plugin通信。

再来看L3NATAgent的创建过程：

   def __init__(self, host, conf=None):
        if conf:
            self.conf = conf
        else:
            self.conf = cfg.CONF
        self.root_helper = config.get_root_helper(self.conf)
        self.router_info = {}

        self._check_config_params()

        try:
　　　　　　  # import driver from l3_agent.init
            # Example: interface_driver = neutron.agent.linux.interface.OVSInterfaceDriver
            self.driver = importutils.import_object(
                self.conf.interface_driver,
                self.conf
            )
        except Exception:
            msg = _("Error importing interface driver "
                    "'%s'") % self.conf.interface_driver
            LOG.error(msg)
            raise SystemExit(1)

        self.context = context.get_admin_context_without_session()
       ＃ Agent side of the l3 agent RPC API, topic is 'q-l3-plugin'
        self.plugin_rpc = L3PluginApi(topics.L3PLUGIN, host)
        self.fullsync = True
        self.updated_routers = set()
        self.removed_routers = set()
        self.sync_progress = False

        self._clean_stale_namespaces = self.conf.use_namespaces
        # Start RPC Loop
        self.rpc_loop = loopingcall.FixedIntervalLoopingCall(
            self._rpc_loop)
        self.rpc_loop.start(interval=RPC_LOOP_INTERVAL)
        super(L3NATAgent, self).__init__(conf=self.conf)

        self.target_ex_net_id = None

上面的self.plugin_rpc会处理neutron-server转发过来的请求，这个请求是通过service_plugins的方式处理的：

neutron.service_plugins =
    dummy = neutron.tests.unit.dummy_plugin:DummyServicePlugin
    router = neutron.services.l3_router.l3_router_plugin:L3RouterPlugin
    firewall = neutron.services.firewall.fwaas_plugin:FirewallPlugin
    lbaas = neutron.services.loadbalancer.plugin:LoadBalancerPlugin
    vpnaas = neutron.services.vpn.plugin:VPNDriverPlugin
    metering = neutron.services.metering.metering_plugin:MeteringPlugin

self.rpc_loop会循环检测从plugin发送过来的rpc请求：

  @lockutils.synchronized('l3-agent', 'neutron-')
    def _rpc_loop(self):
        # _rpc_loop and _sync_routers_task will not be
        # executed in the same time because of lock.
        # so we can clear the value of updated_routers
        # and removed_routers, but they can be updated by
        # updated_routers and removed_routers rpc call
        try:
            LOG.debug(_("Starting RPC loop for %d updated routers"),
                      len(self.updated_routers))
            if self.updated_routers:  # 保存了需要本次处理的router信息
                # We're capturing and clearing the list, and will
                # process the "captured" updates in this loop,
                # and any updates that happen due to a context switch
                # will be picked up on the next pass.
                updated_routers = set(self.updated_routers)
                self.updated_routers.clear()
                router_ids = list(updated_routers)
                routers = self.plugin_rpc.get_routers(
                    self.context, router_ids)
                # routers with admin_state_up=false will not be in the fetched
                fetched = set([r['id'] for r in routers])
                ＃不在fetched中而在updated_routers中，说明需删除
                self.removed_routers.update(updated_routers - fetched)

                self._process_routers(routers)
            self._process_router_delete()
            LOG.debug(_("RPC loop successfully completed"))
        except Exception:
            LOG.exception(_("Failed synchronizing routers"))
            self.fullsync = True

_process_routers

如果有rpc请求过来，即需要更新路由信息，或者添加路由子接口，创建floating ip等操作，都会在这里执行。这个函数里会去调用_process_routers函数，在_process_routers函数中会去创建绿色线程，执行process_router函数。可以说，l3 agent调用网络设备的工作都会在process_router中进行。

    def process_router(self, ri):
        ri.iptables_manager.defer_apply_on()
        ex_gw_port = self._get_ex_gw_port(ri)
        internal_ports = ri.router.get(l3_constants.INTERFACE_KEY, [])
        existing_port_ids = set([p['id'] for p in ri.internal_ports])
        current_port_ids = set([p['id'] for p in internal_ports
                                if p['admin_state_up']])
        new_ports = [p for p in internal_ports if
                     p['id'] in current_port_ids and
                     p['id'] not in existing_port_ids]
        old_ports = [p for p in ri.internal_ports if
                     p['id'] not in current_port_ids]
        for p in new_ports:
            self._set_subnet_info(p)
            self.internal_network_added(ri, p['network_id'], p['id'],
                                        p['ip_cidr'], p['mac_address'])
            ri.internal_ports.append(p)

        for p in old_ports:
            self.internal_network_removed(ri, p['id'], p['ip_cidr'])
            ri.internal_ports.remove(p)

        existing_devices = self._get_existing_devices(ri)
        current_internal_devs = set([n for n in existing_devices
                                     if n.startswith(INTERNAL_DEV_PREFIX)])
        current_port_devs = set([self.get_internal_device_name(id) for
                                 id in current_port_ids])
        stale_devs = current_internal_devs - current_port_devs
        for stale_dev in stale_devs:
            LOG.debug(_('Deleting stale internal router device: %s'),
                      stale_dev)
            self.driver.unplug(stale_dev,
                               namespace=ri.ns_name,
                               prefix=INTERNAL_DEV_PREFIX)

        # Get IPv4 only internal CIDRs
        internal_cidrs = [p['ip_cidr'] for p in ri.internal_ports
                          if netaddr.IPNetwork(p['ip_cidr']).version == 4]
        # TODO(salv-orlando): RouterInfo would be a better place for
        # this logic too
        ex_gw_port_id = (ex_gw_port and ex_gw_port['id'] or
                         ri.ex_gw_port and ri.ex_gw_port['id'])

        interface_name = None
        if ex_gw_port_id:
            interface_name = self.get_external_device_name(ex_gw_port_id)
        if ex_gw_port and ex_gw_port != ri.ex_gw_port:
            self._set_subnet_info(ex_gw_port)
            self.external_gateway_added(ri, ex_gw_port,
                                        interface_name, internal_cidrs)
        elif not ex_gw_port and ri.ex_gw_port:
            self.external_gateway_removed(ri, ri.ex_gw_port,
                                          interface_name, internal_cidrs)

        stale_devs = [dev for dev in existing_devices
                      if dev.startswith(EXTERNAL_DEV_PREFIX)
                      and dev != interface_name]
        for stale_dev in stale_devs:
            LOG.debug(_('Deleting stale external router device: %s'),
                      stale_dev)
            self.driver.unplug(stale_dev,
                               bridge=self.conf.external_network_bridge,
                               namespace=ri.ns_name,
                               prefix=EXTERNAL_DEV_PREFIX)

        # Process static routes for router
        self.routes_updated(ri)
        # Process SNAT rules for external gateway
        ri.perform_snat_action(self._handle_router_snat_rules,
                               internal_cidrs, interface_name)

        # Process SNAT/DNAT rules for floating IPs
        fip_statuses = {}
        try:
            if ex_gw_port:
                existing_floating_ips = ri.floating_ips
                self.process_router_floating_ip_nat_rules(ri)
                ri.iptables_manager.defer_apply_off()
                # Once NAT rules for floating IPs are safely in place
                # configure their addresses on the external gateway port
                fip_statuses = self.process_router_floating_ip_addresses(
                    ri, ex_gw_port)
        except Exception:
            # TODO(salv-orlando): Less broad catching
            # All floating IPs must be put in error state
            for fip in ri.router.get(l3_constants.FLOATINGIP_KEY, []):
                fip_statuses[fip['id']] = l3_constants.FLOATINGIP_STATUS_ERROR

        if ex_gw_port:
            # Identify floating IPs which were disabled
            ri.floating_ips = set(fip_statuses.keys())
            for fip_id in existing_floating_ips - ri.floating_ips:
                fip_statuses[fip_id] = l3_constants.FLOATINGIP_STATUS_DOWN
            # Update floating IP status on the neutron server
            self.plugin_rpc.update_floatingip_statuses(
                self.context, ri.router_id, fip_statuses)

        # Update ex_gw_port and enable_snat on the router info cache
        ri.ex_gw_port = ex_gw_port
        ri.enable_snat = ri.router.get('enable_snat')

process_router函数所做的工作有：

1.处理内部接口

这个是在router添加和删除子接口时工作。它会调用internal_network_added和internal_network_removed这个两个函数。

在internal_network_added和internal_network_removed这个两个函数会去调用OVSInterfaceDriver的plug和unplug函数，这两个函数最终会用ip link 和ip addr的命令去处理接口和ip地址。

2.处理外部网关
router添加和删除外部网关。调用external_gateway_added和external_gateway_removed函数，同样也会调用plug和unplug函数，用ip link 和ip addr的命令进行最终处理

3.为外部网关做SNAT

调用_handle_router_snat_rules函数，使用iptables来加链和删除链。

在我的测试网络中，router上有3个接口，外部网关地址为192.168.39.2，内部两个子网的网关为10.1.0.1，10.2.0.1。iptables规则如下：


         iptables -t nat -A POSTROUTING ! -i qg-fcb1a762-1f ! -o qg-fcb1a762-1f -m conntrack ! --ctstate DNAT -j ACCEPT

         iptables -t nat -A snat -s 10.2.0.1 /24 -j SNAT --to- source 192.168.39.2

         iptables -t nat -A snat -s 10.1.0.1 /24 -j SNAT --to- source 192.168.39.2

qg-fcb1a762-1f为外部网关接口的索引，使用ip netns exec $namespace ip link list可查看。

4.为floating ip做SNAT/DNAT

和浮动IP相关，如创建，更新，删除，绑定到一个云主机的接口，解绑定等。

不同neutron版本这部分的处理不同，这里是基于Icehouse rc1版本的，在havava stable版本，只有一个函数来处理iptables规则和floating ip。

process_router_floating_ip_nat_rules ：当floating ip与云主机绑定时，会先清除已有的floating_ip规则，再加上要添加的iptables规则,同时重新加载清除的iptables规则。

比如，一个云主机10.1.0.2上绑定了一个floating ip（192.168.39.5）。那么最终会在iptable不同的链中添加iptables规则，float-snat为neutron自定义链。


         iptables -t nat -A PREROUTING -d 192.168.39.5 -j DNAT --to 10.1.0.2

         iptables -t nat -A OUTPUT -d 192.168.39.5 -j DNAT --to 10.1.0.2

         iptables -t nat -A float-snat -s 10.1.0.2 -j SNAT --to 192.168.39.5

process_router_floating_ip_addresses：

将floating ip和云主机绑定时，使用ip addr add命令添加ip地址。
解除floating ip和云主机绑定时，使用ip addr del命令将floating ip删除。

类图

本文转自http://squarey.me/cloud-virtualization/neutron-l3-analyse.html，有部分删改。

1. keepalived vrrp/conntrackd

High availability features will be implemented as extensions or drivers.A first extension/driver will be based on VRRP.

A new scheduler will be also added in order to be able to spawn multiple instances of a same router in many places.

Conntrackd will be used to maintain the TCP sessions going through the router. One instance of conntrackd per virtual router, then one per namespace.

Blueprints: https://blueprints.launchpad.net/neutron/+spec/l3-high-availability
wiki:        https://wiki.openstack.org/wiki/Neutron/L3_High_Availability_VRRP
analysis:    http://blog.csdn.net/quqi99/article/details/18799877

2. neutron DVR based multi-host l3-agent

Provide Distributed Virtual Routing functionality with OVS, to improve the performance.

在Openstack中L3router会造成流量集中的问题。不论东西向还是南北向的流量都需要流过网络节点的虚拟路由器。为了解决流量集中的问题，社区正在开打分布式虚拟路由器(DVR)的feature。

   https://blueprints.launchpad.net/neutron/+spec/neutron-ovs-dvr
   https://wiki.openstack.org/wiki/Neutron/DVR_L2_Agent
   http://m.blog.csdn.net/blog/maoliping455mlp455/36899391
   http://blog.csdn.net/quqi99/article/details/20711303

3. Neutron Multi-host DHCP and L3

Goal here is to have a DHCP implementation that provides the same properties as nova-network's "multi_host" functionality, where the DHCP server for a particular VM runs directly on the same hypervisor as the VM itself (with the exception of when a VM migrates).

This blueprints is in drafting, and will not merge in upstream.

   https://blueprints.launchpad.net/neutron/+spec/quantum-multihost

4. crontab using neutron-client

http://m.blog.csdn.net/blog/maoliping455mlp455/23428897

So this when we neutron-l3-agent is down, we can see that it will not affect the existed VMs. And we can easily use monitd to make process "neutron-l3-agent" is always alive. We can use the following script, and run a crontab(every 10 sec) on the server which installed neutronclient (But not on the controller nodes):

#!/usr/bin/python
from neutronclient.v2_0 import client as neutronclient

TENANT_NAME="admin"
USERNAME="admin"
PASSWORD="admin"
AUTH_URL="https://10.224.159.107:443/v2.0/"

neutron = neutronclient.Client(auth_url=AUTH_URL,
                               username=USERNAME,
                               password=PASSWORD,
                               tenant_name=TENANT_NAME)

agents = neutron.list_agents()
alive_l3_agents = []
dead_l3_agents = []

for agent in agents['agents']:
    if agent['binary'] == 'neutron-l3-agent' and agent['alive'] == True:
        alive_l3_agents.append(agent)
    if agent['binary'] == 'neutron-l3-agent' and agent['alive'] != True:
        dead_l3_agents.append(agent)

if len(alive_l3_agents) == 0 :
    print "No active L3"

if len(dead_l3_agents) == 0 :
    print "No dead L3"

routers = neutron.list_routers()
dead_routers = []

for dead_l3_agent in dead_l3_agents:
    dead_routers = neutron.list_routers_on_l3_agent(dead_l3_agent['id'])
    for dead_router in dead_routers['routers']:
        neutron.remove_router_from_l3_agent(dead_l3_agent['id'], dead_router['id'])
        print "remove_router_from_l3_agent : L3 id is %s, router id is %s" %(dead_l3_agent['id'], dead_router['id'])
        # Currently, only add to the first alive agent
        neutron.add_router_to_l3_agent(alive_l3_agents[0]['id'], {"router_id":dead_router['id']})
        print "add_router_to_l3_agent : L3 id is %s, router id is %s" %(alive_l3_agents[0]['id'], dead_router['id'])

5. HA of other components

(1) Database: active-passive (pacemarker + DRBD); active-active (Galera)
   http://blog.csdn.net/quqi99/article/details/9392789

(2) MQ: MQ cluster
   http://blog.csdn.net/quqi99/article/details/9394121

(3) Cinder: Local File System (Raid10 + LVM); Distrubte File System (Ceph)
   http://blog.csdn.net/quqi99/article/details/9396413
    http://blog.csdn.net/quqi99/article/details/10894833

(4) All stateless services, like (keystone|glance|nova|neutron)-api, nova-schedule etc (haproxy + pacemarker)

(5) l3-agent: VRRP + keeplived + ip conntracked
   https://blueprints.launchpad.net/neutron/+spec/l3-high-availability
   http://blog.csdn.net/quqi99/article/details/18799877

当neutron启用L3 agent时，如果在配置文件中配置了external_network_bridge，从这个bridge上出去的包只能是untag的。但在DC中，极有可能被分配的是某一vlan。这种情况下，在配置文件中就要如下设置：

[plain] view plain copy

/etc/neutron/l3_agent.ini
# Name of bridge used for external network traffic. This should be set to
# empty value for the linux bridge
external_network_bridge = ""

设定external网络可以参照以下命令：

neutron net-create --shared vlan840 --provider:network_type vlan --provider:physical_network physnet1 --provider:segmentation_id 840 --router:external=True

其他设置可以参考以下blog：

http://www.ustack.com/blog/neutron_intro/

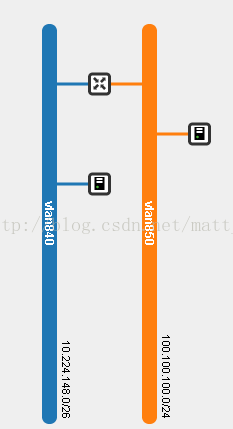

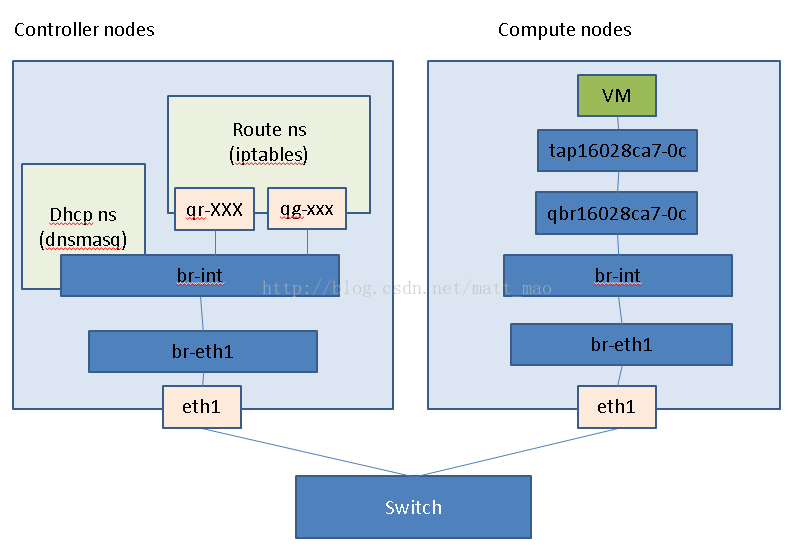

设定完成后拓补如下：

、

我们可以在vlan840上直接起虚机，也可以在vlan850（内部网络上）启动虚机。

在网络节点上看到：

[plain] view plain copy

# ovs-vsctl show
418f4819-8ad6-4fe5-a959-3605eee4852b
Bridge "br-eth1"
Port "phy-br-eth1"
Interface "phy-br-eth1"
Port "br-eth1"
Interface "br-eth1"
type: internal
Port "eth1"
Interface "eth1"
Bridge br-int
Port "tapa570fb69-fb"
tag: 5
Interface "tapa570fb69-fb"
type: internal
Port "qr-f01fed18-ad"
tag: 5
Interface "qr-f01fed18-ad"
type: internal
Port br-int
Interface br-int
type: internal
Port "tapa7b25e2f-ad"
tag: 1
Interface "tapa7b25e2f-ad"
type: internal
Port "qg-d2f9cb0b-11"
tag: 3
Interface "qg-d2f9cb0b-11"
type: internal
Port "tapa85a86f8-c1"
tag: 3
Interface "tapa85a86f8-c1"
type: internal
Port "int-br-eth1"
Interface "int-br-eth1"
ovs_version: "1.11.0"

qr-XXX和qg-YYY都在br-eth1上，qg-YYY和qr-XXX之间是L3 agent通过iptables的nat转换来实现的。

转：

Openstack Neutron Provider Network虚机数据流

本文分析了一下neutron provider network的环境下虚拟机数据流。

实验环境如下：

Openstack : Havana （Neutron ML2+openvswitch agent, Vlan模式）

Provider Network : Vlan 100, 网段 100.100.100.0/24, 网关100.100.100.1

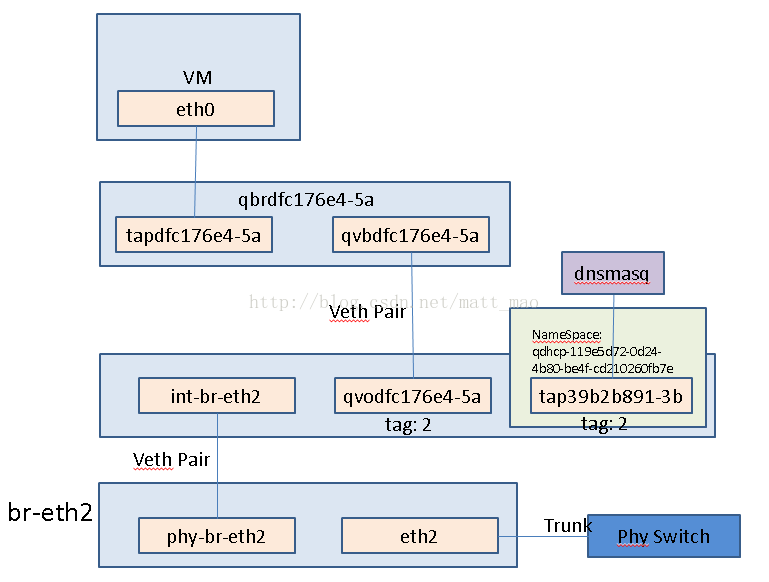

虚机网络拓扑环境如下：

我们以在虚拟机中ping 8.8.8.8为例说明数据流。

在虚机中当我们敲下ping 8.8.8.8以后, 我们的kernel会查找路由表看看我们有没有8.8.8.8的路由。
在虚机中ifconfig和ip route的结果如下：

# ifconfig
eth0 Link encap:Ethernet HWaddr FA:16:3E:2E:FD:E1
inet addr:100.100.100.2 Bcast:100.100.100.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:1906 errors:0 dropped:0 overruns:0 frame:0
TX packets:1709 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:147567 (144.1 KiB) TX bytes:233064 (227.6 KiB)
# ip route show
169.254.169.254 via 100.100.100.3 dev eth0 proto static
100.100.100.0/24 dev eth0 proto kernel scope link src 100.100.100.2
169.254.0.0/16 dev eth0 scope link metric 1002
default via 100.100.100.1 dev eth0

我们发现在虚机中并没有到8.8.8.8的直连路由，因此我们会把包发送给默认网关100.100.100.1。
此时我们首先会发送ARP广播请求默认网关的MAC。当默认网关会应我们ARP请求后，我们就得到了需要的默认网关的MAC。
我们会将ICMP Request包发出，这个包源IP是100.100.100.2，目的IP是8.8.8.8，源MAC是FA:16:3E:2E:FD:E1，目的MAC是默认网关的MAC。

之后这个包就被发送到了tapdfc176e4-5a。
下面是tapdfc176e4-5a在计算节点上的相关配置：
# ifconfig tapdfc176e4-5a
tapdfc176e4-5a Link encap:Ethernet HWaddr FE:16:3E:2E:FD:E1
inet6 addr: fe80::fc16:3eff:fe2e:fde1/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:217 errors:0 dropped:0 overruns:0 frame:0
TX packets:249 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:500
RX bytes:28180 (27.5 KiB) TX bytes:21472 (20.9 KiB)

# brctl show
bridge name bridge idSTP enabledinterfaces
qbr6750eac8-57 8000.d6c128fae672noqvb6750eac8-57
tap6750eac8-57
qbrdfc176e4-5a 8000.7e07e8dd1cf6noqvbdfc176e4-5a
tapdfc176e4-5a
virbr0 8000.525400e75eaayesvirbr0-nic

此处可以看到tapdfc176e4-5a被连接到了linux bridge qbrdfc176e4-5a上，而不是连接到OVS的br-int上。原因是如果将tapdfc176e4-5a直接连到br-int上，Security Group就没有机会执行过滤规则。
目前Security Group是用iptables实现的。在iptables中有一个feature叫做bridge-nf-call-iptables，可以过滤桥上的流。我们可以通过以下命令查看是否开启：
# cat /proc/sys/net/bridge/bridge-nf-call-iptables
1

我们可以使用iptables -nvL 查看这个VM在filter表中的Security Group：
Chain neutron-openvswi-idfc176e4-5 (1 references)
pkts bytes target prot opt in out source destination
0 0 DROP all -- * * 0.0.0.0/0 0.0.0.0/0 state INVALID
318 20107 RETURN all -- * * 0.0.0.0/0 0.0.0.0/0 state RELATED,ESTABLISHED
1 60 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:22
0 0 RETURN udp -- * * 100.100.100.3 0.0.0.0/0 udp spt:67 dpt:68
0 0 RETURN udp -- * * 100.100.100.4 0.0.0.0/0 udp spt:67 dpt:68
0 0 neutron-openvswi-sg-fallback all -- * * 0.0.0.0/0 0.0.0.0/0
Chain neutron-openvswi-odfc176e4-5 (2 references)
pkts bytes target prot opt in out source destination
0 0 RETURN udp -- * * 0.0.0.0/0 0.0.0.0/0 udp spt:68 dpt:67
299 31689 neutron-openvswi-sdfc176e4-5 all -- * * 0.0.0.0/0 0.0.0.0/0
0 0 DROP udp -- * * 0.0.0.0/0 0.0.0.0/0 udp spt:67 dpt:68
0 0 DROP all -- * * 0.0.0.0/0 0.0.0.0/0 state INVALID
295 31365 RETURN all -- * * 0.0.0.0/0 0.0.0.0/0 state RELATED,ESTABLISHED
4 324 RETURN all -- * * 0.0.0.0/0 0.0.0.0/0
0 0 neutron-openvswi-sg-fallback all -- * * 0.0.0.0/0 0.0.0.0/0

在Neutron中会对进入/流出虚机的流量进行过滤，neutron-openvswi-idfc176e4-5链是进入虚机流的访问控制规则。neutron-openvswi-odfc176e4-5链是流出虚机流的访问控制规则。
这两个连是在neutron-openvswi-sg-chain中被调用的：
Chain neutron-openvswi-sg-chain (4 references)
pkts bytes target prot opt in out source destination
319 20167 neutron-openvswi-idfc176e4-5 all -- * * 0.0.0.0/0 0.0.0.0/0 PHYSDEV match --physdev-out tapdfc176e4-5a --physdev-is-bridged
299 31689 neutron-openvswi-odfc176e4-5 all -- * * 0.0.0.0/0 0.0.0.0/0 PHYSDEV match --physdev-in tapdfc176e4-5a --physdev-is-bridged

在packet从桥和Security Group流出后，他会来到br-int的qvodfc176e4-5a,这个接口可以看到是"tag: 2"，这表示这个接口是"Access口"，vlan id是2。
OVS输出如下：
# ovs-vsctl show
47115847-b828-47f3-bbdb-e18d4b0fd11e
Bridge br-int
Port "tap39b2b891-3b"
tag: 2
Interface "tap39b2b891-3b"
type: internal
Port br-int
Interface br-int
type: internal
Port "qvo6750eac8-57"
tag: 1
Interface "qvo6750eac8-57"
Port "qvodfc176e4-5a"
tag: 2
Interface "qvodfc176e4-5a"
Port "int-br-eth2"
Interface "int-br-eth2"
Port "qr-441abe6b-8b"
tag: 1
Interface "qr-441abe6b-8b"
type: internal
Bridge br-ex
Port br-ex
Interface br-ex
type: internal
Port "qg-019b0743-e4"
Interface "qg-019b0743-e4"
type: internal
Port "eth3"
Interface "eth3"
Bridge "br-eth2"
Port "eth2"
Interface "eth2"
Port "br-eth2"
Interface "br-eth2"
type: internal
Port "phy-br-eth2"
Interface "phy-br-eth2"
ovs_version: "1.11.0"

虚拟交换机br-int会将packet从int-br-eth2发送出去，而"int-br-eth2"和"phy-br-eth2"是veth pair，因此包会从phy-br-eth2流入br-eth2，以下是OVS的openflow输出：
# ovs-ofctl show br-eth2
OFPT_FEATURES_REPLY (xid=0x2): dpid:00000800270731f9
n_tables:254, n_buffers:256
capabilities: FLOW_STATS TABLE_STATS PORT_STATS QUEUE_STATS ARP_MATCH_IP
actions: OUTPUT SET_VLAN_VID SET_VLAN_PCP STRIP_VLAN SET_DL_SRC SET_DL_DST SET_NW_SRC SET_NW_DST SET_NW_TOS SET_TP_SRC SET_TP_DST ENQUEUE
1(eth2): addr:08:00:27:07:31:f9
config: 0
state: 0
speed: 0 Mbps now, 0 Mbps max
2(phy-br-eth2): addr:a2:e1:41:5c:cc:bf
config: 0
state: 0
current: 10GB-FD COPPER
speed: 10000 Mbps now, 0 Mbps max
LOCAL(br-eth2): addr:08:00:27:07:31:f9
config: 0
state: 0
speed: 0 Mbps now, 0 Mbps max
OFPT_GET_CONFIG_REPLY (xid=0x4): frags=normal miss_send_len=0

# ovs-ofctl dump-flows br-eth2
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=3968.876s, table=0, n_packets=20, n_bytes=2052, idle_age=1947, priority=4,in_port=2,dl_vlan=1 actions=mod_vlan_vid:1001,NORMAL
cookie=0x0, duration=3967.173s, table=0, n_packets=218, n_bytes=28424, idle_age=502, priority=4,in_port=2,dl_vlan=2 actions=mod_vlan_vid:100,NORMAL
cookie=0x0, duration=3972.688s, table=0, n_packets=10, n_bytes=764, idle_age=1986, priority=2,in_port=2 actions=drop
cookie=0x0, duration=3976.268s, table=0, n_packets=411, n_bytes=77162, idle_age=14, priority=1 actions=NORMAL

我们需要特别关注以下openflow条目：
cookie=0x0, duration=3967.173s, table=0, n_packets=218, n_bytes=28424, idle_age=502, priority=4,in_port=2,dl_vlan=2 actions=mod_vlan_vid:100,NORMAL

"dl_vlan=2" 是说当packet的vlan tag为2。我们的packet是从Tag为2的"Access口"进来的，因此会带有tag为2的vlan头。
"action = mod_vlan_vid:100" 执行修改vlan头的action，将vlan id改为100。
"NORMAL" 执行标准交换机动作。

也就是说在br-eth2上的openflow规则会将我们的packet转为vlan id为100的packet。我们回过头来看br-int的openflow条目，会发现也有类似规则，不过是将vlan id从100改为2。
下面是br-int上的openflow条目：
# ovs-ofctl show br-int
OFPT_FEATURES_REPLY (xid=0x2): dpid:000032774807d443
n_tables:254, n_buffers:256
capabilities: FLOW_STATS TABLE_STATS PORT_STATS QUEUE_STATS ARP_MATCH_IP
actions: OUTPUT SET_VLAN_VID SET_VLAN_PCP STRIP_VLAN SET_DL_SRC SET_DL_DST SET_NW_SRC SET_NW_DST SET_NW_TOS SET_TP_SRC SET_TP_DST ENQUEUE
1(int-br-eth2): addr:4e:1d:f3:fe:23:12
config: 0
state: 0
current: 10GB-FD COPPER
speed: 10000 Mbps now, 0 Mbps max
2(qvodfc176e4-5a): addr:36:92:d2:25:b7:8d
config: 0
state: 0
current: 10GB-FD COPPER
speed: 10000 Mbps now, 0 Mbps max
3(qr-441abe6b-8b): addr:f6:01:00:00:00:00
config: PORT_DOWN
state: LINK_DOWN
speed: 0 Mbps now, 0 Mbps max
4(qvo6750eac8-57): addr:fe:63:44:8b:9d:28
config: 0
state: 0
current: 10GB-FD COPPER
speed: 10000 Mbps now, 0 Mbps max
7(tap39b2b891-3b): addr:f6:01:00:00:00:00
config: PORT_DOWN
state: LINK_DOWN
speed: 0 Mbps now, 0 Mbps max
LOCAL(br-int): addr:32:77:48:07:d4:43
config: 0
state: 0
speed: 0 Mbps now, 0 Mbps max
OFPT_GET_CONFIG_REPLY (xid=0x4): frags=normal miss_send_len=0

# ovs-ofctl dump-flows br-int
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=3960.902s, table=0, n_packets=2, n_bytes=748, idle_age=1949, priority=3,in_port=1,dl_vlan=1001 actions=mod_vlan_vid:1,NORMAL
cookie=0x0, duration=3959.222s, table=0, n_packets=242, n_bytes=21940, idle_age=494, priority=3,in_port=1,dl_vlan=100 actions=mod_vlan_vid:2,NORMAL
cookie=0x0, duration=3965.248s, table=0, n_packets=166, n_bytes=54124, idle_age=6, priority=2,in_port=1 actions=drop
cookie=0x0, duration=3969.286s, table=0, n_packets=608, n_bytes=69908, idle_age=494, priority=1 actions=NORMAL

当我们的packet在br-eth2上被转发到eth2，并带有vlan id 100从eth2上发送出去，就会发送到物理交换机上。物理交换机与compute节点是通过trunk连接的，只要配置了vlan100就能将包转发到网关上，最后由网关将包转发出去

转：

Neutron L3 Agent packet flow

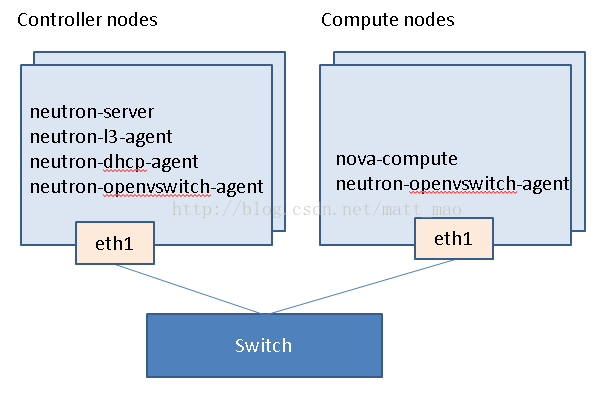

部署环境如下：

目前我们将neutron-l3-agent放在controller节点上，之后会将其移至专属的network节点，专属的network节点的网卡能力更强些。

以下是网络逻辑拓扑：

从虚机到计算节点的eth1的packet flow与provider network是一致的，可以参照：

http://blog.csdn.net/matt_mao/article/details/17231045

不同的地方是虚机获取的网关地址是qr-XXX的ip地址。这样虚机的数据流就会进入controller节点。

例如：

[plain] view plain copy

# ip netns exec qrouter-942b3c47-0c90-44c9-b01d-8c6c7f4368a1 ifconfig
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 b) TX bytes:0 (0.0 b)
qg-123e8e11-94 Link encap:Ethernet HWaddr FA:16:3E:5F:96:A1
inet addr:10.224.159.170 Bcast:10.224.159.191 Mask:255.255.255.224
inet6 addr: fe80::f816:3eff:fe5f:96a1/64 Scope:Link
UP BROADCAST RUNNING MTU:1500 Metric:1
RX packets:899 errors:0 dropped:0 overruns:0 frame:0
TX packets:12 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:56096 (54.7 KiB) TX bytes:941 (941.0 b)
qr-f1977c17-37 Link encap:Ethernet HWaddr FA:16:3E:F6:C9:36
inet addr:192.168.76.1 Bcast:192.168.76.255 Mask:255.255.255.0
inet6 addr: fe80::f816:3eff:fef6:c936/64 Scope:Link
UP BROADCAST RUNNING MTU:1500 Metric:1
RX packets:25 errors:0 dropped:0 overruns:0 frame:0
TX packets:13 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:2375 (2.3 KiB) TX bytes:1208 (1.1 KiB)

虚机的默认网关地址是qr-f1977c17-37的ip地址，数据流就会进入controller的这个netns，然后经过内核的netfilter进行SNAT后，如果你没有设置floating ip，则源地址变为qg-123e8e11-94的地址。

[plain] view plain copy

[root@ci91szcmp001 ~]# ip netns exec qrouter-942b3c47-0c90-44c9-b01d-8c6c7f4368a1 iptables -nvL -t nat
Chain PREROUTING (policy ACCEPT 960 packets, 46441 bytes)
pkts bytes target prot opt in out source destination
960 46441 neutron-l3-agent-PREROUTING all -- * * 0.0.0.0/0 0.0.0.0/0
Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
3 221 neutron-l3-agent-POSTROUTING all -- * * 0.0.0.0/0 0.0.0.0/0
3 221 neutron-postrouting-bottom all -- * * 0.0.0.0/0 0.0.0.0/0
Chain OUTPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
0 0 neutron-l3-agent-OUTPUT all -- * * 0.0.0.0/0 0.0.0.0/0
Chain neutron-l3-agent-OUTPUT (1 references)
pkts bytes target prot opt in out source destination
Chain neutron-l3-agent-POSTROUTING (1 references)
pkts bytes target prot opt in out source destination
0 0 ACCEPT all -- !qg-123e8e11-94 !qg-123e8e11-94 0.0.0.0/0 0.0.0.0/0 ! ctstate DNAT
Chain neutron-l3-agent-PREROUTING (1 references)
pkts bytes target prot opt in out source destination
0 0 REDIRECT tcp -- * * 0.0.0.0/0 169.254.169.254 tcp dpt:80 redir ports 9697
Chain neutron-l3-agent-float-snat (1 references)
pkts bytes target prot opt in out source destination
Chain neutron-l3-agent-snat (1 references)
pkts bytes target prot opt in out source destination
3 221 neutron-l3-agent-float-snat all -- * * 0.0.0.0/0 0.0.0.0/0
3 221 SNAT all -- * * 192.168.76.0/24 0.0.0.0/0 to:10.224.159.170
Chain neutron-postrouting-bottom (1 references)
pkts bytes target prot opt in out source destination
3 221 neutron-l3-agent-snat all -- * * 0.0.0.0/0 0.0.0.0/0

如果设置了floating ip，则在接口qg-123e8e11-94上可以找到这个floating ip：

[plain] view plain copy

# ip netns exec qrouter-942b3c47-0c90-44c9-b01d-8c6c7f4368a1 ip route
10.224.159.160/27 dev qg-123e8e11-94 proto kernel scope link src 10.224.159.170
192.168.76.0/24 dev qr-f1977c17-37 proto kernel scope link src 192.168.76.1
default via 10.224.159.161 dev qg-123e8e11-94

并且会添加以下SNAT和DNAT规则：

[plain] view plain copy

[root@ci91szcmp001 ~]# ip netns exec qrouter-942b3c47-0c90-44c9-b01d-8c6c7f4368a1 iptables -nvL -t nat
Chain PREROUTING (policy ACCEPT 1101 packets, 53272 bytes)
pkts bytes target prot opt in out source destination
1101 53272 neutron-l3-agent-PREROUTING all -- * * 0.0.0.0/0 0.0.0.0/0
Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
6 428 neutron-l3-agent-POSTROUTING all -- * * 0.0.0.0/0 0.0.0.0/0
6 428 neutron-postrouting-bottom all -- * * 0.0.0.0/0 0.0.0.0/0
Chain OUTPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
0 0 neutron-l3-agent-OUTPUT all -- * * 0.0.0.0/0 0.0.0.0/0
Chain neutron-l3-agent-OUTPUT (1 references)
pkts bytes target prot opt in out source destination
0 0 DNAT all -- * * 0.0.0.0/0 10.224.159.171 to:192.168.76.2
Chain neutron-l3-agent-POSTROUTING (1 references)
pkts bytes target prot opt in out source destination
0 0 ACCEPT all -- !qg-123e8e11-94 !qg-123e8e11-94 0.0.0.0/0 0.0.0.0/0 ! ctstate DNAT
Chain neutron-l3-agent-PREROUTING (1 references)
pkts bytes target prot opt in out source destination
0 0 REDIRECT tcp -- * * 0.0.0.0/0 169.254.169.254 tcp dpt:80 redir ports 9697
0 0 DNAT all -- * * 0.0.0.0/0 10.224.159.171 to:192.168.76.2
Chain neutron-l3-agent-float-snat (1 references)
pkts bytes target prot opt in out source destination
0 0 SNAT all -- * * 192.168.76.2 0.0.0.0/0 to:10.224.159.171
Chain neutron-l3-agent-snat (1 references)
pkts bytes target prot opt in out source destination
6 428 neutron-l3-agent-float-snat all -- * * 0.0.0.0/0 0.0.0.0/0
0 0 SNAT all -- * * 192.168.76.0/24 0.0.0.0/0 to:10.224.159.170
Chain neutron-postrouting-bottom (1 references)
pkts bytes target prot opt in out source destination
6 428 neutron-l3-agent-snat all -- * * 0.0.0.0/0 0.0.0.0/0
