Actors 异步编程模型剖析：C++实现与工程实践
·
🎭 Actors异步编程模型剖析：C++实现与工程实践
Reference：
Actors 基于消息驱动的异步编程模型

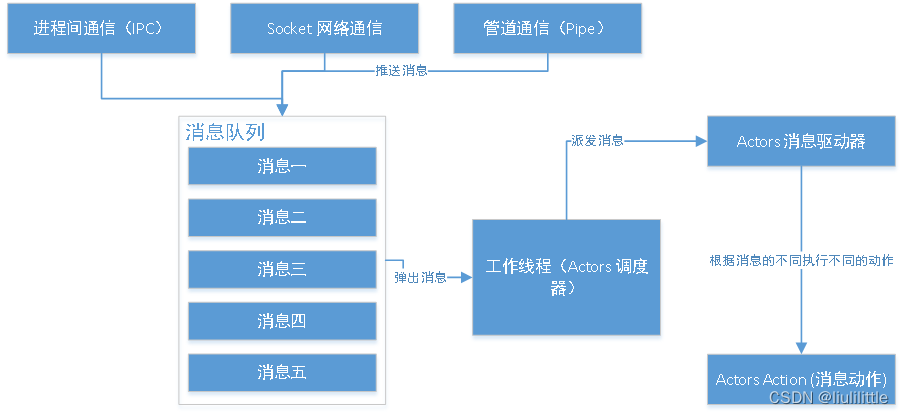

Structure：
Publisher/Consumer：
🧩 一、Actor模型核心架构
1.1 线程-执行器关系拓扑
关键说明：
- 每个线程包含一个执行器(Executor)，负责调度本线程内的所有Actor
- Actor间通过异步消息通信，跨越线程边界时不共享内存
- 每个Actor绑定到单个线程，确保状态修改的线程安全性
1.2 C++ Actor系统核心类图
🧩 二、消息处理核心机制
2.1 消息生命周期流程图
2.2 消息结构内存布局
+---------------+----------------+----------------+----------------+----------------+
| 动作ID(4B) | 序列ID(8B) | 来源地址(8B) | 时间戳(8B) | 载荷长度(4B) |
+---------------+----------------+----------------+----------------+----------------+
| 载荷数据(变长) | 填充字节(可选) |
+---------------------------------------------------------------+----------------+
2.3 C++消息序列化实现
struct MessageHeader {
uint32_t actionId;
uint64_t sequenceId;
Address origin;
std::chrono::steady_clock::time_point timestamp;
uint32_t payloadLength;
};
class MessageSerializer {
public:
template <typename T>
static std::vector<uint8_t> serialize(uint32_t actionId, const T& data) {
std::vector<uint8_t> buffer;
MessageHeader header{
.actionId = actionId,
.sequenceId = nextSequenceId(),
.origin = getCurrentAddress(),
.timestamp = std::chrono::steady_clock::now(),
.payloadLength = sizeof(T)
};
// 写入头部
const uint8_t* headerBytes = reinterpret_cast<const uint8_t*>(&header);
buffer.insert(buffer.end(), headerBytes, headerBytes + sizeof(header));
// 写入负载
const uint8_t* dataBytes = reinterpret_cast<const uint8_t*>(&data);
buffer.insert(buffer.end(), dataBytes, dataBytes + sizeof(T));
return buffer;
}
template <typename T>
static T deserialize(const std::vector<uint8_t>& buffer) {
if (buffer.size() < sizeof(MessageHeader) + sizeof(T)) {
throw std::runtime_error("Invalid message buffer");
}
const MessageHeader* header =
reinterpret_cast<const MessageHeader*>(buffer.data());
if (header->payloadLength != sizeof(T)) {
throw std::runtime_error("Payload size mismatch");
}
const uint8_t* payloadStart = buffer.data() + sizeof(MessageHeader);
return *reinterpret_cast<const T*>(payloadStart);
}
};
🧩 三、共享资源安全访问模型
3.1 资源竞争问题对比
核心优势：资源管理器作为唯一访问入口，消除资源竞争条件
3.2 C++资源管理器实现
class ResourceManager : public Actor {
public:
ResourceManager() {
// 注册消息处理器
dispatcher.registerHandler(ACTION_UPDATE,
const Message& msg { handleUpdate(msg); });
dispatcher.registerHandler(ACTION_QUERY,
const Message& msg { handleQuery(msg); });
}
private:
SharedResource resource_; // 受管理的共享资源
void handleUpdate(const Message& msg) {
auto update = MessageSerializer::deserialize<ResourceUpdate>(msg.payload);
std::lock_guard lock(resourceMutex_);
resource_.applyUpdate(update);
// 可选的ACK响应
if (msg.header.sequenceId != 0) {
sendAck(msg.header.origin, msg.header.sequenceId);
}
}
void handleQuery(const Message& msg) {
auto query = MessageSerializer::deserialize<ResourceQuery>(msg.payload);
ResourceData result;
{
std::lock_guard lock(resourceMutex_);
result = resource_.executeQuery(query);
}
auto response = MessageSerializer::serialize(ACTION_RESULT, result);
send(msg.header.origin, response);
}
std::mutex resourceMutex_; // 仅当资源非线程安全时使用
};
🧩 四、可靠消息传输协议
4.1 ARQ协议状态机
4.2 C++可靠通道实现
class ReliableChannel {
public:
void sendGuaranteed(const Address& dest, const std::vector<uint8_t>& payload) {
uint64_t seqId = generateSequenceId();
pendingMap_[seqId] = { dest, payload, std::chrono::steady_clock::now() };
doSend(dest, payload, seqId);
startTimeoutChecker();
}
void onAckReceived(uint64_t ackedSeqId) {
std::lock_guard lock(mutex_);
pendingMap_.erase(ackedSeqId);
}
private:
struct PendingMessage {
Address dest;
std::vector<uint8_t> payload;
std::chrono::steady_clock::time_point sendTime;
};
void doSend(const Address& dest,
const std::vector<uint8_t>& payload,
uint64_t seqId) {
auto message = buildMessage(dest, payload, seqId);
networkInterface.send(message);
}
void startTimeoutChecker() {
if (checkerRunning_) return;
checkerRunning_ = true;
executor_.post([this] {
while (!pendingMap_.empty()) {
auto now = std::chrono::steady_clock::now();
std::unique_lock lock(mutex_);
for (auto it = pendingMap_.begin(); it != pendingMap_.end(); ) {
if (now - it->second.sendTime > TIMEOUT) {
// 重发超时消息
doSend(it->second.dest,
it->second.payload,
it->first);
it->second.sendTime = now;
++it;
} else {
++it;
}
}
lock.unlock();
std::this_thread::sleep_for(RECHECK_INTERVAL);
}
checkerRunning_ = false;
});
}
std::mutex mutex_;
std::atomic_bool checkerRunning_{false};
std::unordered_map<uint64_t, PendingMessage> pendingMap_;
const std::chrono::milliseconds TIMEOUT{200};
const std::chrono::milliseconds RECHECK_INTERVAL{50};
};
🧩 五、内存优化机制
5.1 内存池架构设计
5.2 C++内存池核心实现
class MessageAllocator {
public:
void* allocate(size_t size) {
if (size <= SMALL_BLOCK_SIZE) {
return smallPool_.allocate();
} else if (size <= MEDIUM_BLOCK_SIZE) {
return mediumPool_.allocate();
} else {
return largePool_.allocate(size);
}
}
void deallocate(void* ptr, size_t size) {
if (size <= SMALL_BLOCK_SIZE) {
smallPool_.deallocate(ptr);
} else if (size <= MEDIUM_BLOCK_SIZE) {
mediumPool_.deallocate(ptr);
} else {
largePool_.deallocate(ptr, size);
}
}
private:
static constexpr size_t SMALL_BLOCK_SIZE = 128;
static constexpr size_t MEDIUM_BLOCK_SIZE = 4096;
class FixedSizePool {
public:
void* allocate();
void deallocate(void* ptr);
// 实现细节...
};
class VariableSizePool {
public:
void* allocate(size_t size);
void deallocate(void* ptr, size_t size);
// 实现细节...
};
FixedSizePool smallPool_{SMALL_BLOCK_SIZE, 10000};
FixedSizePool mediumPool_{MEDIUM_BLOCK_SIZE, 5000};
VariableSizePool largePool_;
};
// 定制化分配器
template <typename T>
class ActorAllocator {
public:
using value_type = T;
ActorAllocator(MessageAllocator& baseAlloc)
: baseAllocator_(baseAlloc) {}
T* allocate(size_t n) {
size_t size = n * sizeof(T);
return static_cast<T*>(baseAllocator_.allocate(size));
}
void deallocate(T* p, size_t n) {
size_t size = n * sizeof(T);
baseAllocator_.deallocate(p, size);
}
private:
MessageAllocator& baseAllocator_;
};
🧩 六、高级主题：死锁预防
6.1 逻辑死锁产生场景
6.2 死锁预防解决方案
6.3 C++调用链追踪实现
class CallChain {
public:
struct Entry {
ActorAddress address;
std::chrono::steady_clock::time_point timestamp;
};
static CallChain& current() {
thread_local CallChain instance;
return instance;
}
void push(ActorAddress addr) {
std::lock_guard lock(mutex_);
chain_.push_back({addr, std::chrono::steady_clock::now()});
}
void pop() {
std::lock_guard lock(mutex_);
if (!chain_.empty()) {
chain_.pop_back();
}
}
bool checkDeadlockRisk(ActorAddress target) const {
std::lock_guard lock(mutex_);
return std::any_of(chain_.begin(), chain_.end(),
const Entry& entry {
return entry.address == target;
});
}
private:
std::vector<Entry> chain_;
mutable std::mutex mutex_;
};
// 在消息发送前检查
void ActorSystem::sendWithDeadlockCheck(
ActorAddress target,
const std::vector<uint8_t>& payload)
{
auto& chain = CallChain::current();
if (chain.checkDeadlockRisk(target)) {
throw DeadlockRisk("Potential deadlock detected");
}
chain.push(target);
try {
sendDirect(target, payload);
} catch (...) {
chain.pop();
throw;
}
}
🧩 七、工程最佳实践
7.1 领域驱动设计集成
7.2 C++项目组织结构
my_project/
├── actors/
│ ├── core/ // Actor核心框架
│ │ ├── actor.hpp
│ │ ├── mailbox.cpp
│ │ └── dispatcher.hpp
│ ├── memory/ // 内存管理
│ │ ├── allocator.hpp
│ │ └── pool.cpp
│ └── network/ // 网络传输
│ ├── reliable_channel.hpp
│ └── socket_adapter.cpp
├── domain/ // 业务领域
│ ├── user/ // 用户域
│ │ ├── user_actor.hpp
│ │ └── user_model.hpp
│ └── order/ // 订单域
│ ├── order_actor.cpp
│ └── order_service.hpp
└── utils/ // 工具类
├── serializer.hpp
└── logger.cpp
7.3 调试与监控建议
- 消息轨迹追踪：为每条消息分配唯一TraceID
- 死锁检测器：周期性检查环形调用链
- 内存分析器：
- 可视化拓扑：实时显示Actor间通信关系
📝 适用于C++的Actors模型实现原则
-
严格的消息边界：
- 强制使用值语义传递数据
- 禁止跨Actor共享可变状态
- 所有通信必须通过消息队列
-
基于ID的分发机制：
// 注册处理函数示例 dispatcher.registerHandler(ACTION_LOGIN, const Message& msg { auto cred = deserialize<LoginCred>(msg.payload); return processLogin(cred); }); -
资源单一所有权：
-
异步优先的设计哲学：
- 非阻塞处理是核心原则
- 回调机制处理长期操作
- Future/Promise模式整合
工程建议：对于高性能C++系统，结合Actor模型与数据流处理（如Pipelining），可以在简化并发控制的同时实现极高的吞吐量。关键在于合理划分Actor边界和精心设计消息协议。
