Java Selenium实战秘籍：快速搭建自动化测试框架

测试也算程序员？

802人浏览 · 2025-09-24 16:16:49

测试也算程序员？ · 2025-09-24 16:16:49 发布

在软件测试领域，自动化测试已成为提升效率和质量的关键。

本文是一篇面向开发人员和测试工程师的实战教程，详细介绍了如何在Mac系统上搭建Java Selenium自动化测试环境，包括Maven、Java、Selenium和ChromeDriver的安装与配置。

文章还通过具体示例，展示了如何结合Cucumber实现行为驱动开发（BDD）测试，从环境搭建到测试脚本编写，再到运行测试，内容丰富且实用。

无论是初学者还是有一定经验的工程师，都能从中获得有价值的参考。

Maven安装与环境变量配置

从Maven官网

https://maven.apache.org/download.cgi下载stable版本，

本次下载的是Stable 3.8.8 Release，下载后解压缩，把maven文件夹放置到本地路径，如“/Users/pingguo/Documents/apache-maven-3.8.8”

输入sudo vim .bash_profile,打开编辑页，输入i（input）进入编辑模式，输入命令

export PATH=$PATH:/path/to/your/program

按esc退出编辑模式，再按shift+：wq，保存并退出。

通过env命令查看所有环境变量，找到上述路径则表示添加成功。

如不生效，则输入命令vim ~/.bashrc

export PATH=/usr/local/maven/bin:$PATH

输入source ~/.bashrc使生效

然后输入mvn -v得到：

Apache Maven 3.8.8 (4c87b05d9aedce574290d1acc98575ed5eb6cd39) Maven home:/usr/local/mavenJava version: 21.0.5，vendor: Oracle Corporation, runtime:/Library/Java/JavaVir tualMachines/jdk-21.jdk/Contents/HomeDefault locale: zh_CN_#Hans, platform encoding:UTF-8OS name: "mac os x", version:"15.2", arch:"aarch64", family: "mac"

AI写代码

在IntelliJ Idea新建maven project，pom.xml里复制依赖。

可打开

https://mvnrepository.com/artifact/org.seleniumhq.selenium/selenium-java/3.141.59，（找到usage最多的版本）复制pom到所建项目的pom文件里，修改后的如下

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>.testauto</groupId>
<artifactId>test</artifactId>
<version>0.0.1-SNAPSHOT</version>
<dependencies>

<dependency>
<groupId>org.seleniumhq.selenium</groupId>
<artifactId>selenium-java</artifactId>
<version>3.141.59</version>
</dependency>
</dependencies>
</project>

在https://mvnrepository.com/artifact/org.testng/testng/7.1.0查询testng，复制依赖添加到pom.xml。

安装jdk，默认mac不用配置环境变量。

下载selenium，

https://selenium-release.storage.googleapis.com/index.html?path=3.9/。

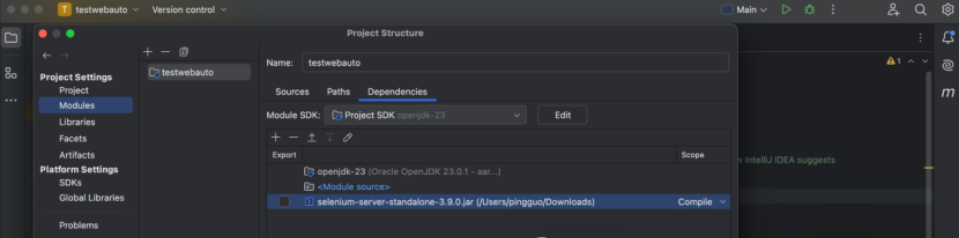

安装依赖，右上角设置页->project structure->Modules，新增Dependencies，导入jar包。

下载chromedriver驱动，复制到IJ的bin文件夹下

安装java，配置环境变量，编辑环境变量文件

vim ~/.bash_profile

按住i，输入

JAVA_HOME="/Library/Java/JavaVirtualMachines/jdk-21.jdk/Contents/Home"

export JAVA_HOME

CLASS_PATH="$JAVA_HOME/lib"

PATH=".$PATH=$JAVA_HOME/bin"

按esc退出，按住shift：wq保存并退出编辑

执行命令使配置生效:

source .bash_profile

在终端输入java -version验证：

java -version
java version "21.0.5"2024-10-15 LTS
Java(TM) SE Runtime Environment(build 21.0.5+9-LTS-239)
Java HotSpot(TM) 64-Bit Server VM (build 21.0.5+9-LTS-239，mixed mode, sharing)

然后在src/test/java下新建package，可命名为com.test,再新建class，命名为FirstWebTest，添加代码：

package com.test;
import org.openqa.selenium.chrome.ChromeDriver;
public class FirstWebTest {
public static void main(String []args) {
ChromeDriver chromeDriver = new ChromeDriver();
}
}

执行java application时报错，

下载chromedriver，几番寻找，终于找到含有最新版chrome的driver下载网址，

https://registry.npmmirror.com/binary.html?path=chrome-for-testing/

把下载好的对应版本复制到src/test/resources下。

本次chrome版本是131.0.6778.265。

将下载的driver放到/usr/local/bin中

sudo mv /Users/pingguo/Downloads/chromedriver-mac-arm64/chromedriver /usr/local/bin

再执行run as java application时提示无法打开chromedriver，因为无法验证开发者，因为mac不信任下载的webdriver文件，打开安全隐私模式添加信任即可：

sudo xattr -d com.apple.

quarantine /usr/local/bin/chromedriver

在控制台启动chromedriver，得到如下

chromedriver
Starting ChromeDriver 131.0.6778.264 (2d05e31515360f4da764174f7c448b33e36da871-refs/branch-heads/6778@{#4323}) on port 0
Only local connections are allowed.
Please see https://chromedriver.chromium.org/security-considerations for suggestions on keeping ChromeDriver safe.
ChromeDriver was started successfully on port 54241.

第一个java selenium maven程序

打开百度

package come.autotest;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.testng.annotations.AfterClass;
import org.testng.annotations.BeforeClass;
import org.testng.annotations.Test;
import java.nio.file.Path;
import java.nio.file.Paths;
public class webtest {
public WebDriver webDriver;
@BeforeClass
public void setUp(){
Path p1 = Paths.get("src","drivers", "chromedriver");
System.setProperty("webdriver.chrome.driver",p1.toAbsolutePath().toString());
//创建浏览器实例
webDriver = new ChromeDriver();
}
@Test
public void openHomepage() throws InterruptedException {
webDriver.manage().window().maximize();
webDriver.get("https://www.baidu.com");
Thread.sleep(2);
}
@AfterClass
public void tearDown(){
webDriver.quit();
}
}

使用Cucumber

在pom.xml中添加依赖

<dependency>
<groupId>io.cucumber</groupId>
<artifactId>cucumber-java</artifactId>
<version>7.15.0</version>
<scope>test</scope>
</dependency>

为避免后面用到把junit依赖也加上


<dependency>
<groupId>io.cucumber</groupId>
<artifactId>cucumber-junit</artifactId>
<version>7.15.0</version>
<scope>test</scope>
</dependency>

在终端输入，以新建cucumber项目

mvn archetype:generate \
"-DarchetypeGroupId=io.cucumber" \
"-DarchetypeArtifactId=cucumber-archetype" \
"-DarchetypeVersion=7.15.0" \
"-DgroupId=hellocucumber" \
"-DartifactId=hellocucumber" \
"-Dpackage=hellocucumber" \
"-Dversion=1.0.0-SNAPSHOT" \

安装成功后显示如下

[INFO] Project created from Archetype in dir: /Users/pingguo/hellocucumber
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 0.744 s

在刚创建的项目文件夹下打开项目，cd hellocucumber

在IntelliJ Idea中打开这个项目

这时就拥有一个cucumber的第一个项目了。

为了确保项目工作正常，在打开的路径下来运行cucumber，继续在终端执行命令：

mvn test

得到结果如下，有一份示例的测试通过：

[INFO] Running hellocucumber.RunCucumberTest
Scenario: The example # hellocucumber/example.feature:3
Given an example scenario # hellocucumber.StepDefinitions.anExampleScenario()
When all step definitions are implemented # hellocucumber.StepDefinitions.allStepDefinitionsAreImplemented()
Then the scenario passes # hellocucumber.StepDefinitions.theScenarioPasses()
[INFO] Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.109 s -- in hellocucumber.RunCucumberTest
[INFO]
[INFO] Results:
[INFO]
[INFO] Tests run: 1, Failures: 0, Errors: 0, Skipped: 0
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 01:04 min

在src/test/resources/hellocucumber/example.feature文件中，看到有示例的场景.scenario已经被定义好：

Feature: An example

  Scenario: The example
  Given an example scenario
  When all step definitions are implemented
  Then the scenario passes

现在来把它写成另一个场景：来验证周六不是周五

Feature:Is it Friday yet?
  Everyone wants to know when it's Friday

  Scenario: Saturday isn't Friday
  Given today is Saturday
  When I ask whether it's Friday yet
  Then I should be told "No"

最好命名一个与内容相近的文件名，如is_friday_yet.feature。

cucumber是这样执行的，首先第一行以Feature开头，描述名称，与文件名相近，接着第四行以Scenario关键词开头验证场景，末三行分别以Given、When、Then关键词来展开场景的步骤。

再次执行mvn test，会收到一个步骤未被定义的错误：

[ERROR] Tests run: 2, Failures: 0, Errors: 1, Skipped: 0, Time elapsed: 0.135 s <<< FAILURE! -- in hellocucumber.RunCucumberTest
[ERROR] Is it Friday yet?.Saturday isn't Friday -- Time elapsed: 0.024 s <<< ERROR!
io.cucumber.junit.platform.engine.UndefinedStepException:
The step 'today is Saturday' and 2 other step(s) are undefined.

根据提示于是在

src/test/java/hellocucumber/StepDefinitions.java中定义：

@Given("today is Saturday")
public void today_is_saturday() {
// Write code here that turns the phrase above into concrete actions
// throw new io.cucumber.java.PendingException();
}
@When("I ask whether it's Friday yet")
public void i_ask_whether_it_s_friday_yet() {
// Write code here that turns the phrase above into concrete actions
// throw new io.cucumber.java.PendingException();
}
@Then("I should be told {string}")
public void i_should_be_told(String string) {
// Write code here that turns the phrase above into concrete actions
// throw new io.cucumber.java.PendingException();
}

再次运行mvn test，得到的结果通过了✅：

[INFO] Running hellocucumber.RunCucumberTest

Scenario: The example # hellocucumber/example.feature:3

Given an example scenario # hellocucumber.StepDefinitions.anExampleScenario()

When all step definitions are implemented # hellocucumber.StepDefinitions.allStepDefinitionsAreImplemented()

Then the scenario passes # hellocucumber.StepDefinitions.theScenarioPasses()

Scenario: Saturday isn't Friday # hellocucumber/is_friday_yet.feature:4

Given today is Saturday # hellocucumber.StepDefinitions.today_is_saturday()

When I ask whether it's Friday yet # hellocucumber.StepDefinitions.i_ask_whether_it_s_friday_yet()

Then I should be told "No" # hellocucumber.StepDefinitions.i_should_be_told(java.lang.String)

[INFO] Tests run: 2, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.110 s -- in hellocucumber.RunCucumberTest

[INFO]

[INFO] Results:

[INFO]

[INFO] Tests run: 2, Failures: 0, Errors: 0, Skipped: 0

[INFO]

[INFO] ------------------------------------------------------------------------

[INFO] BUILD SUCCESS

[INFO] ------------------------------------------------------------------------

[INFO] Total time: 1.475 s

接下来充实一下代码

class IsItFriday {
static String isItFriday(String today) {
return "No";
}
}
public class StepDefinitions {
private String today;
private String actualAnswer;
@Given("today is Saturday")
public void today_is_Saturday() {
today = "Saturday";
}
@When("I ask whether it's Friday yet")
public void i_ask_whether_it_s_Friday_yet() {
actualAnswer = IsItFriday.isItFriday(today);
}
@Then("I should be told {string}")
public void i_should_be_told(String expectedAnswer) {
assertEquals(expectedAnswer, actualAnswer);
}

再次运行得到：

[INFO] Running hellocucumber.RunCucumberTest

Scenario: The example # hellocucumber/example.feature:3

Given an example scenario # hellocucumber.StepDefinitions.anExampleScenario()

When all step definitions are implemented # hellocucumber.StepDefinitions.allStepDefinitionsAreImplemented()

Then the scenario passes # hellocucumber.StepDefinitions.theScenarioPasses()

Scenario: Saturday isn't Friday # hellocucumber/is_friday_yet.feature:4

Given today is Saturday # hellocucumber.StepDefinitions.today_is_Saturday()

When I ask whether it's Friday yet # hellocucumber.StepDefinitions.i_ask_whether_it_s_Friday_yet()

Then I should be told "No" # hellocucumber.StepDefinitions.i_should_be_told(java.lang.String)

[INFO] Tests run: 2, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.114 s -- in hellocucumber.RunCucumberTest

[INFO]

[INFO] Results:

[INFO]

[INFO] Tests run: 2, Failures: 0, Errors: 0, Skipped: 0

[INFO]

[INFO] --------------------------------------------------------------

[INFO] BUILD SUCCESS

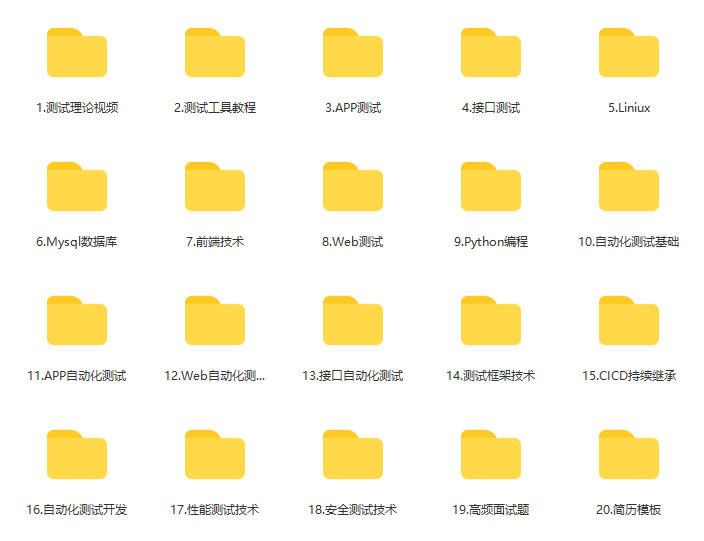

感谢每一个认真阅读我文章的人，礼尚往来总是要有的，虽然不是什么很值钱的东西，如果你用得到的话可以直接拿走：
