基于大数据的共享单车数据分析可视化系统介绍

基于大数据的共享单车数据分析可视化系统是一个综合运用Hadoop和Spark大数据框架进行海量单车数据处理与分析的毕业设计项目,系统采用HDFS分布式文件系统存储共享单车的骑行数据,通过Spark SQL和Pandas进行数据清洗与转换,结合NumPy完成复杂的统计计算任务。后端技术方面提供了Python语言的Django框架和Java语言的Spring Boot框架两个版本供选择,前端采用Vue框架搭配ElementUI组件库构建用户交互界面,使用Echarts图表库实现数据可视化展示,整个系统功能涵盖了用户管理、共享单车数据管理、时间维度分析、环境维度分析、用户行为分析以及综合需求分析六大核心模块。系统通过Hadoop的MapReduce思想处理TB级别的单车轨迹数据,利用Spark的内存计算优势将数据分析速度提升数十倍,时间维度分析模块可以按小时、天、周、月等不同时间粒度统计单车使用频率和高峰时段,环境维度分析模块结合天气、温度、节假日等外部因素探索其对单车使用的影响规律,用户行为分析模块深入挖掘用户的骑行习惯、路径偏好和使用时长分布,综合需求分析模块则整合多维度数据为单车投放和调度提供决策支持,整个系统从数据采集、存储、处理到可视化呈现形成完整的大数据分析闭环。

基于大数据的共享单车数据分析可视化系统演示视频

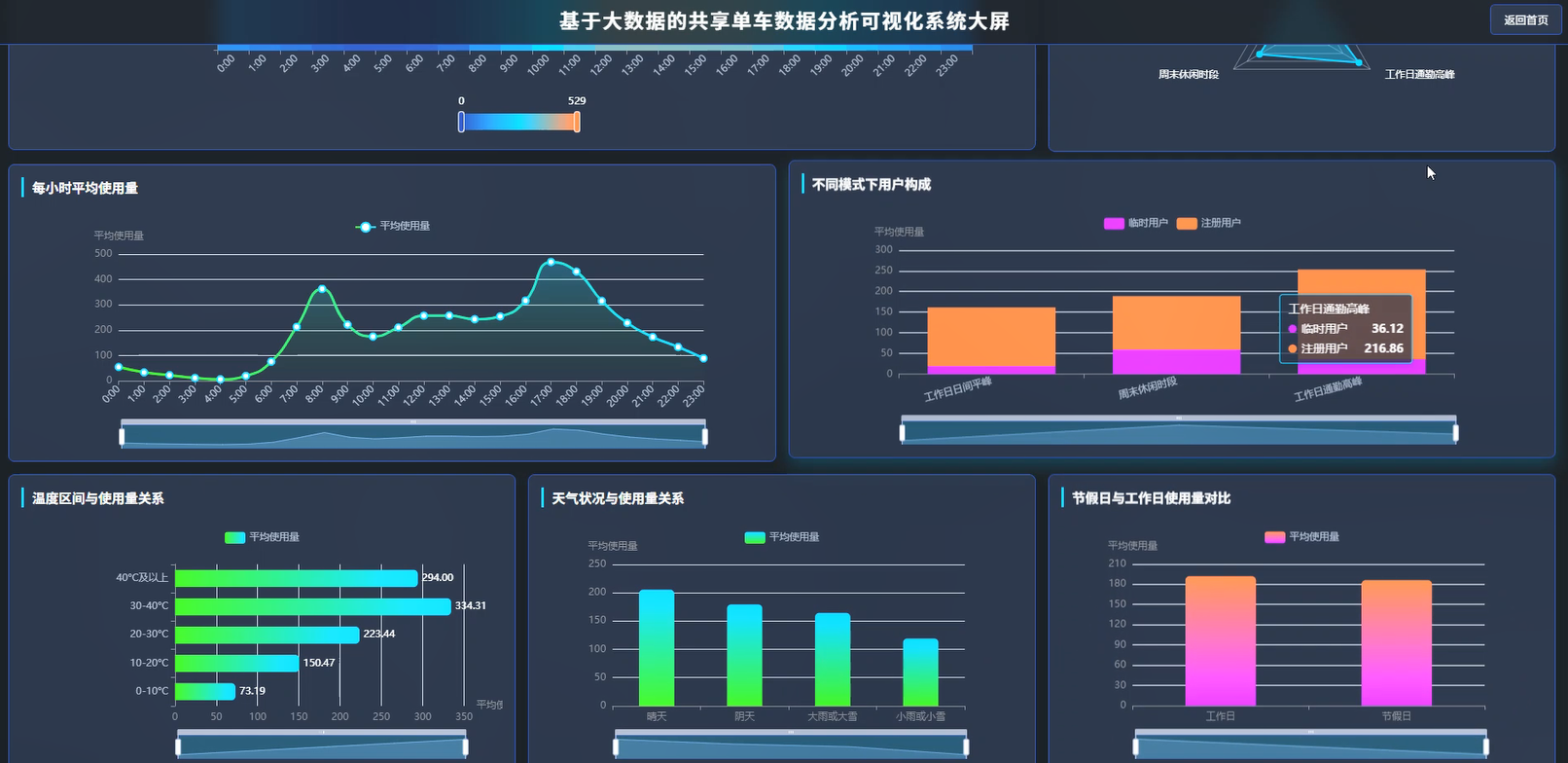

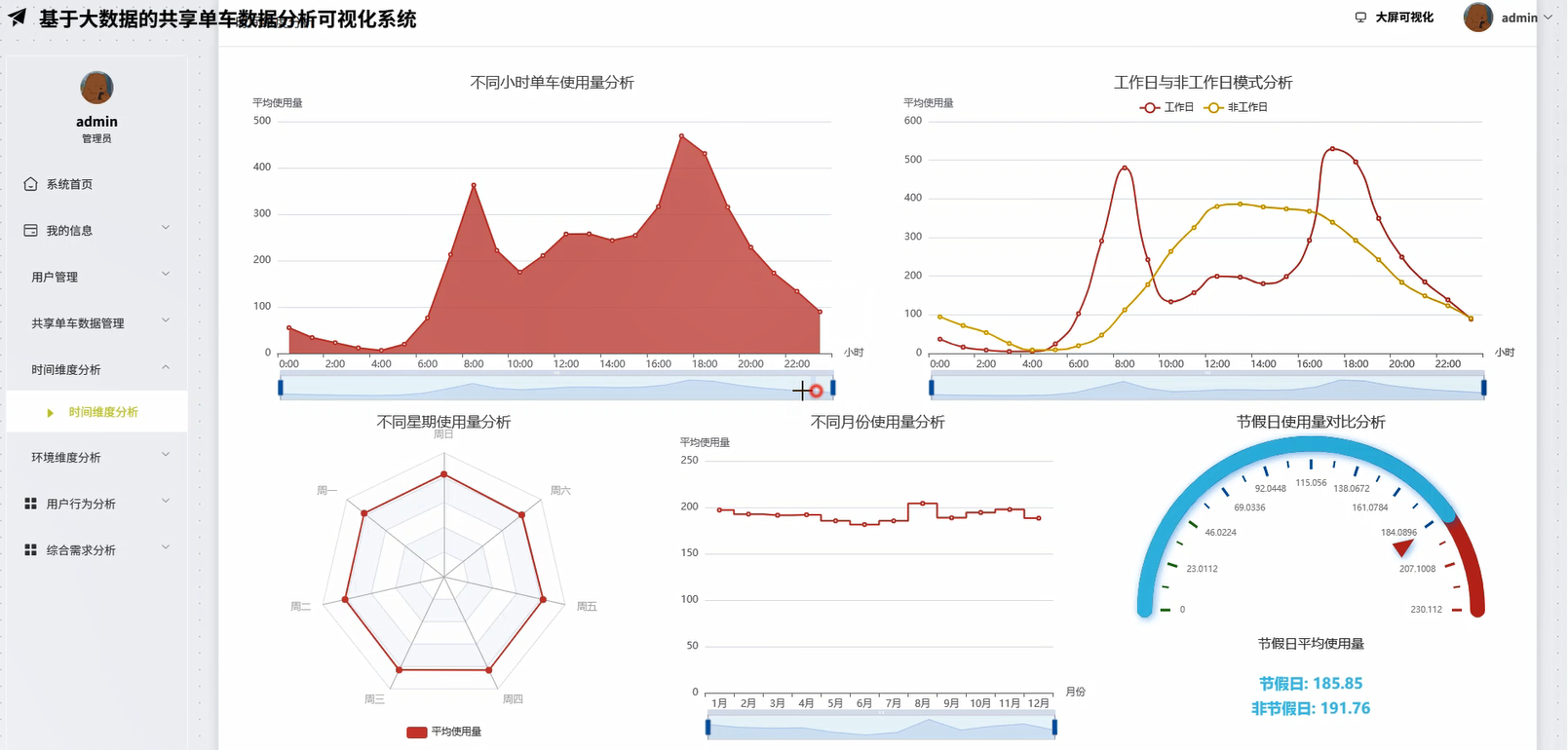

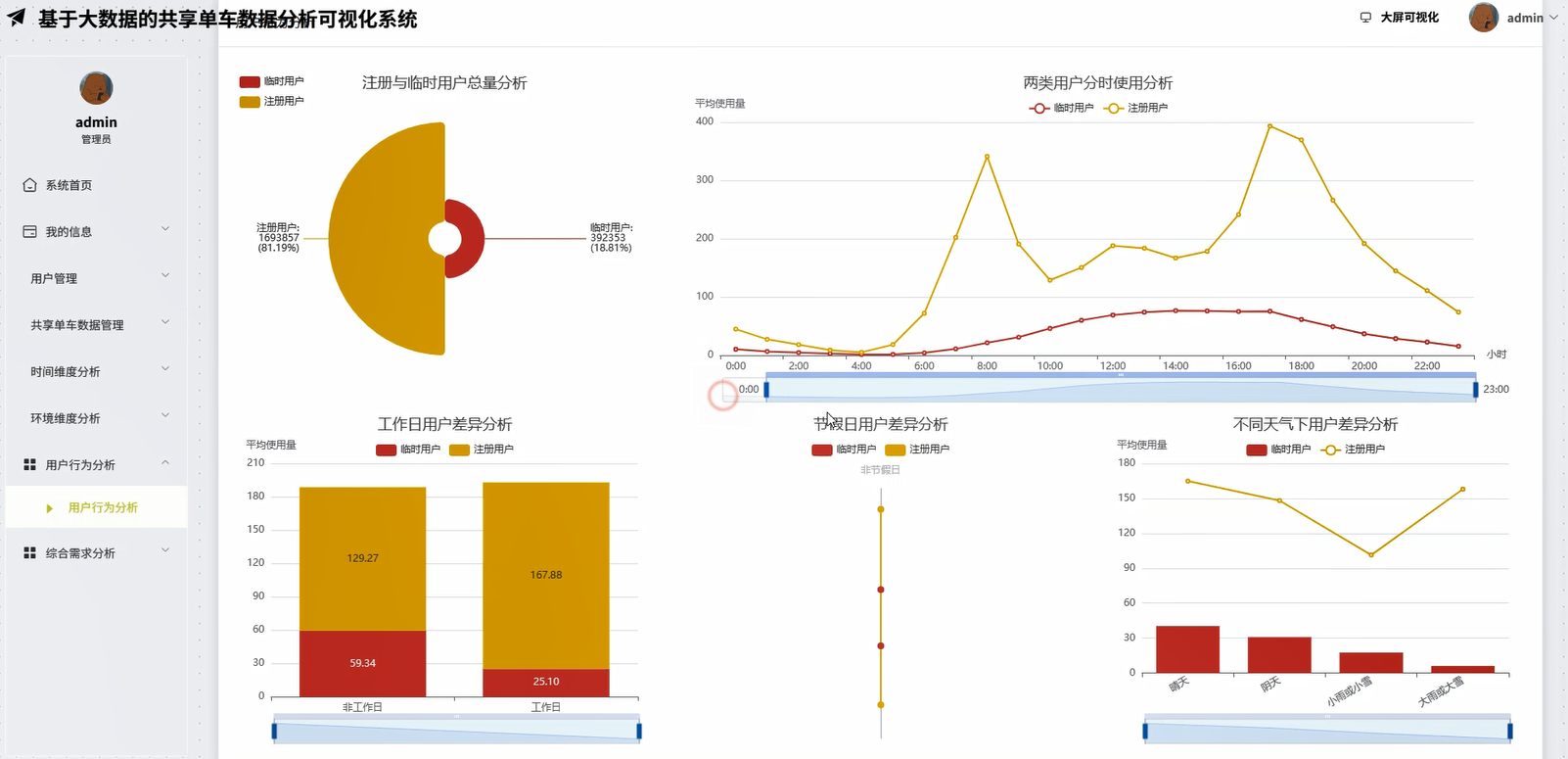

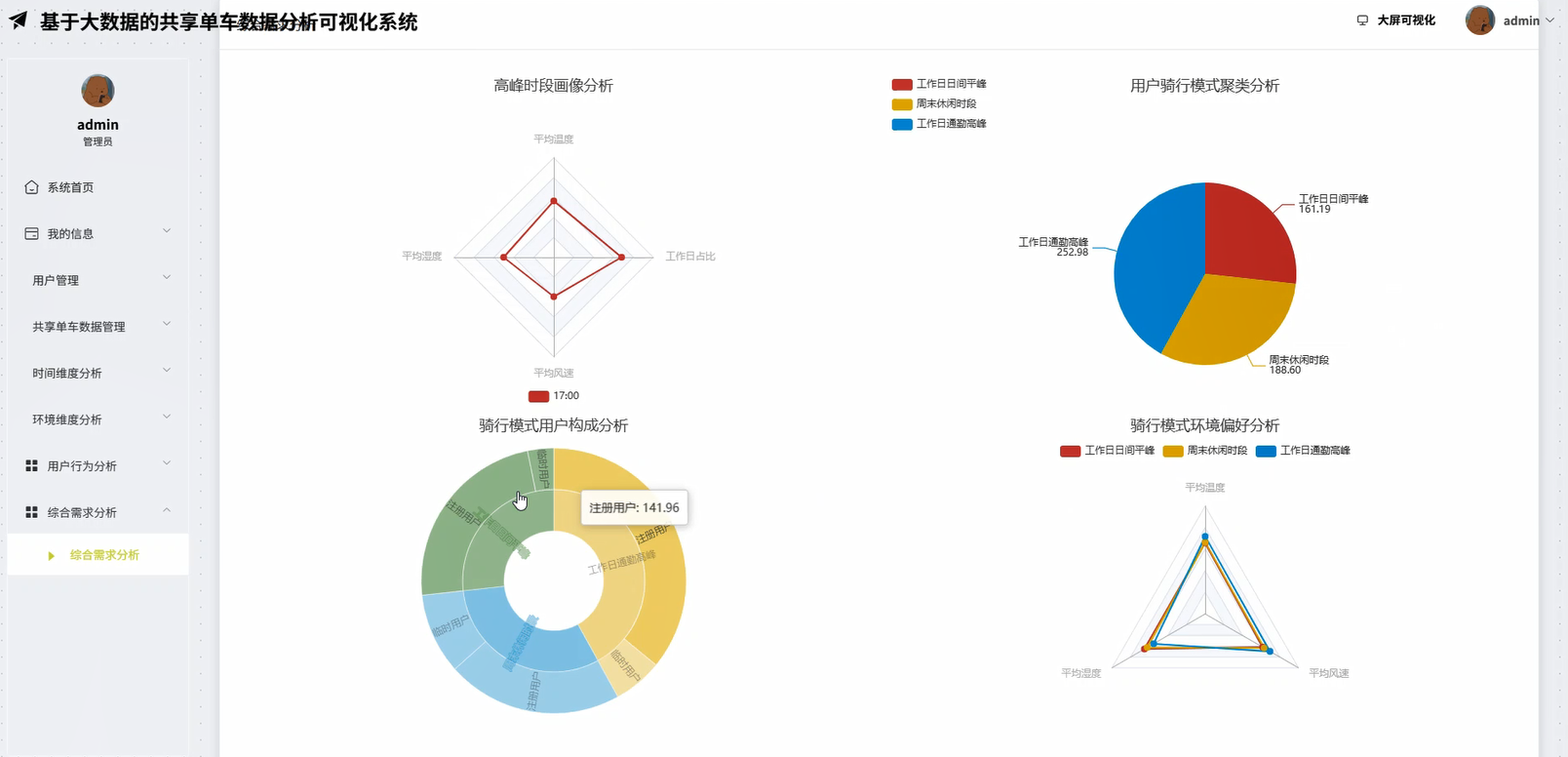

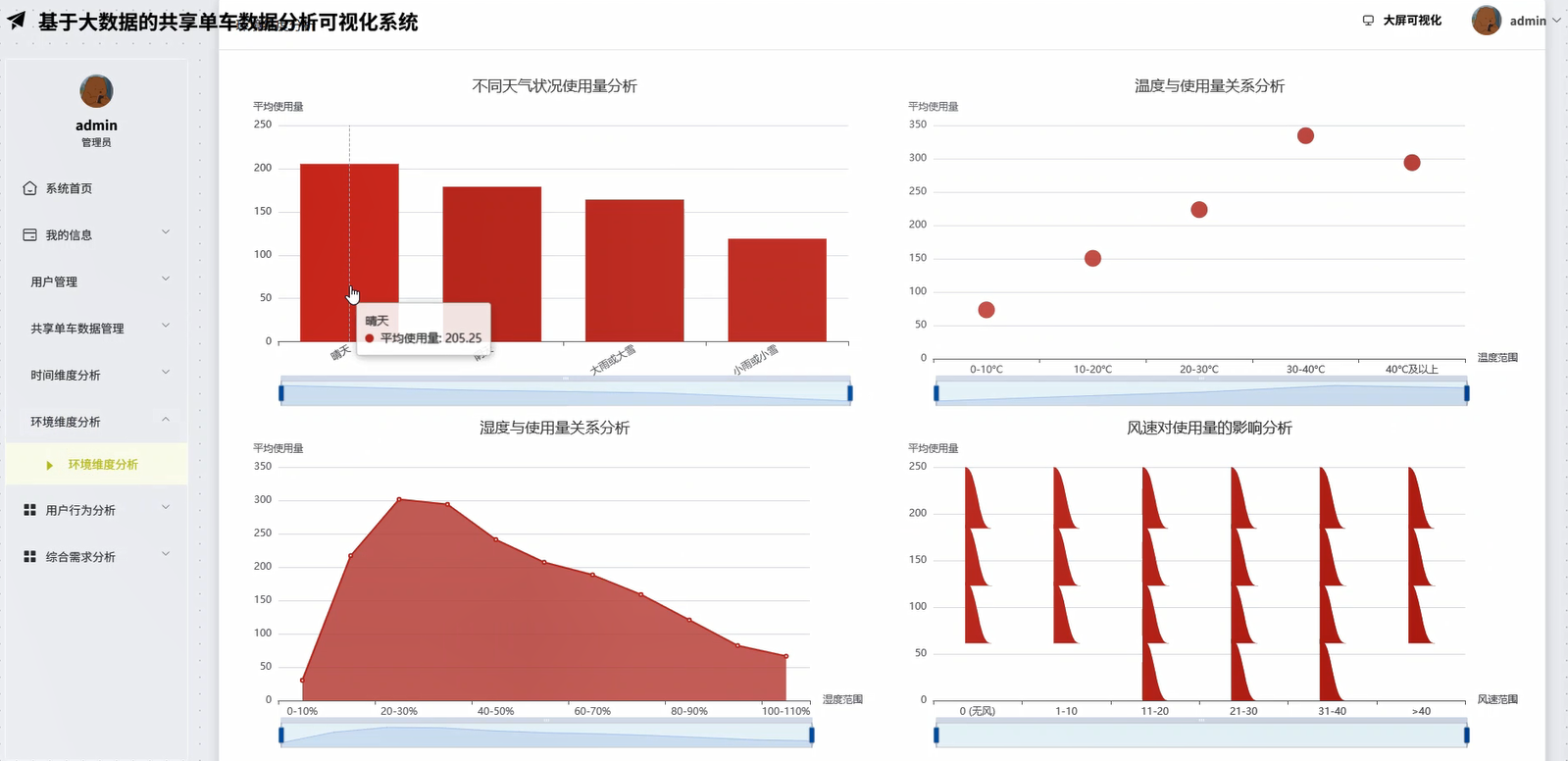

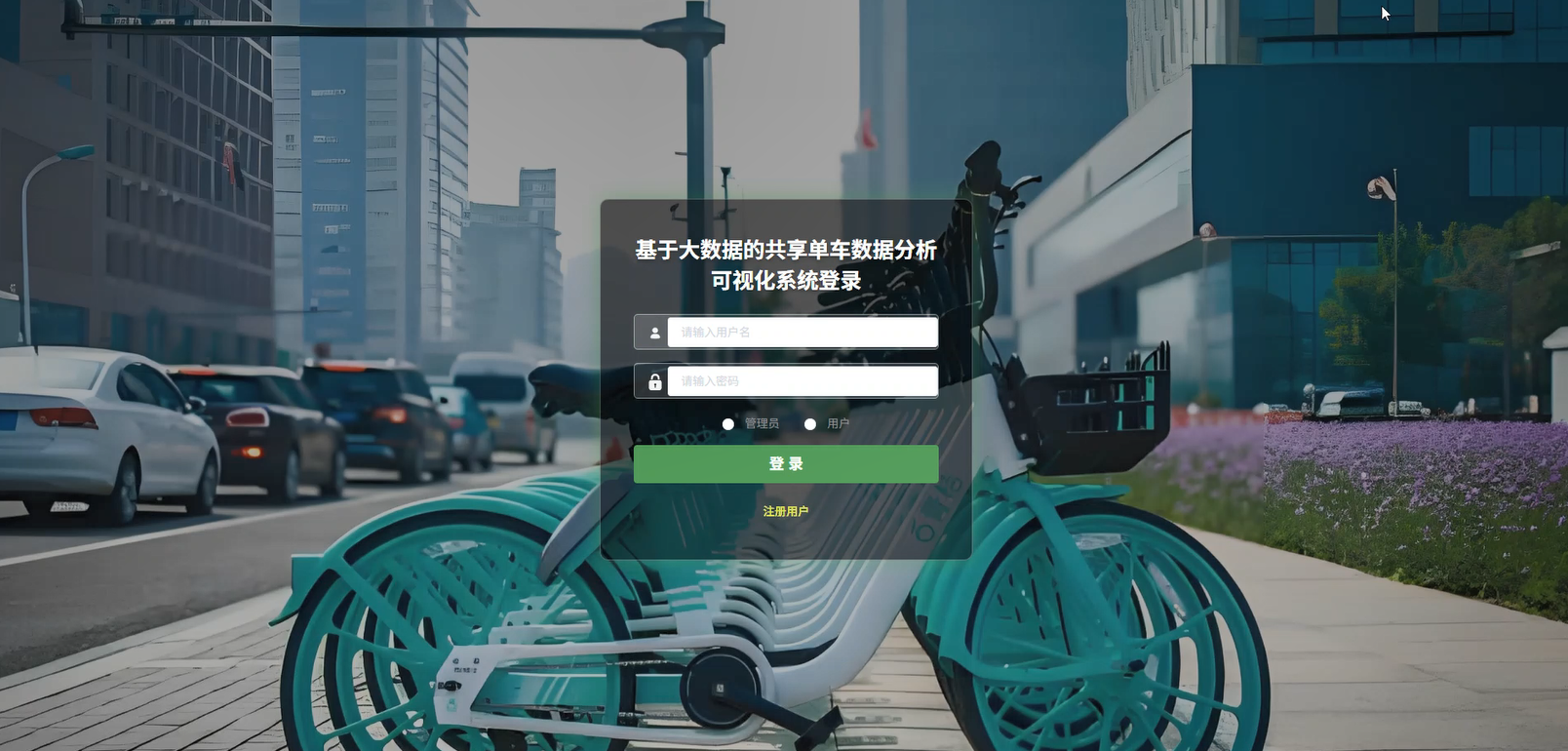

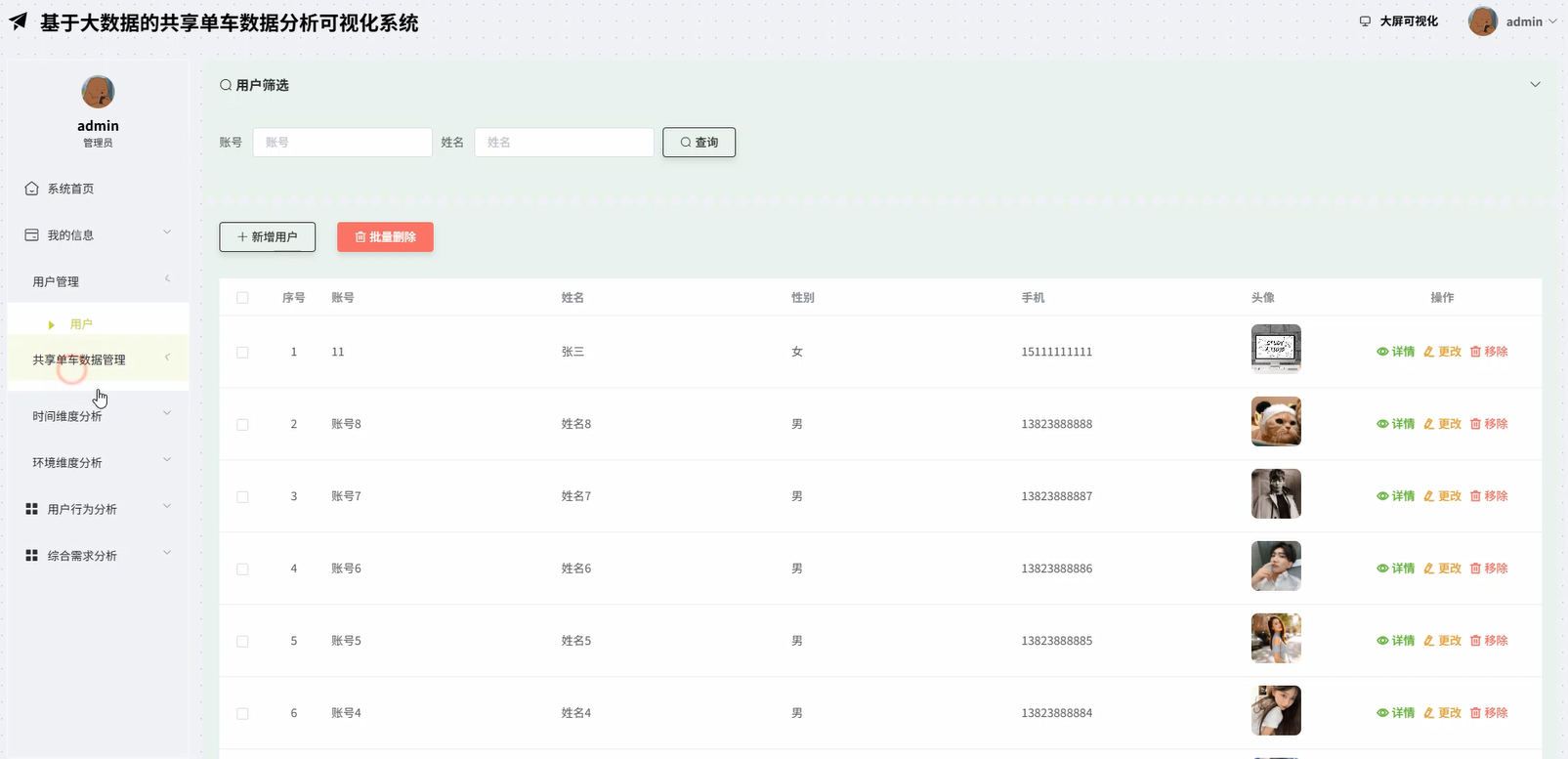

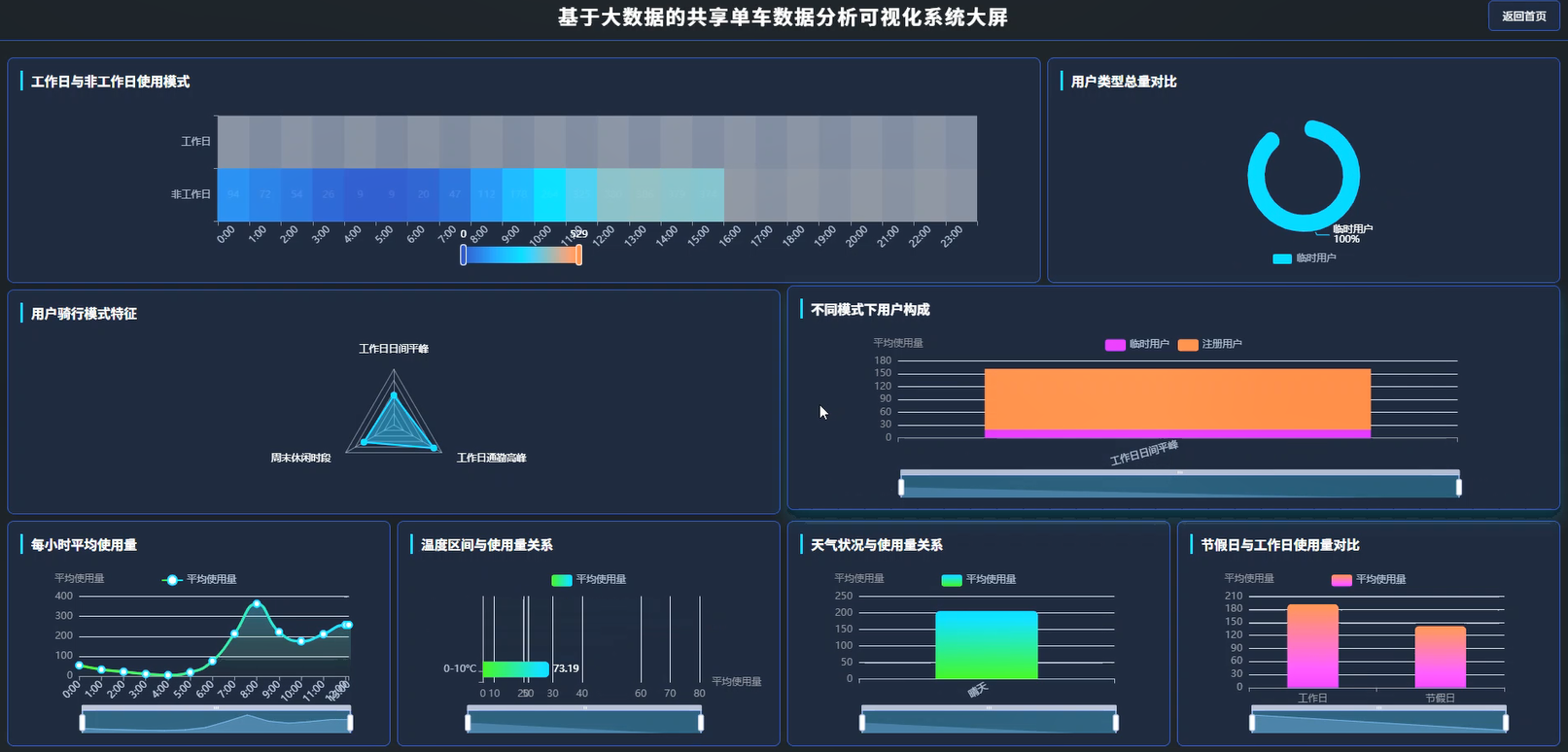

基于大数据的共享单车数据分析可视化系统演示图片

基于大数据的共享单车数据分析可视化系统代码展示

from pyspark.sql import SparkSession
from pyspark.sql.functions import col, hour, dayofweek, count, avg, sum, when, date_format
from django.http import JsonResponse
from django.views import View
import json
spark = SparkSession.builder.appName("SharedBikeAnalysis").master("local[*]").config("spark.sql.warehouse.dir", "/user/hive/warehouse").getOrCreate()
class TimeAnalysisView(View):
    def post(self, request):
        params = json.loads(request.body)
        start_date = params.get('start_date')
        end_date = params.get('end_date')
        analysis_type = params.get('analysis_type')
        bike_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/bike_db").option("driver", "com.mysql.jdbc.Driver").option("dbtable", "bike_data").option("user", "root").option("password", "123456").load()
        bike_df = bike_df.filter((col("start_time") >= start_date) & (col("start_time") <= end_date))
        if analysis_type == "hour":
            result_df = bike_df.withColumn("hour", hour(col("start_time"))).groupBy("hour").agg(count("bike_id").alias("usage_count"), avg("duration").alias("avg_duration")).orderBy("hour")
        elif analysis_type == "day":
            result_df = bike_df.withColumn("weekday", dayofweek(col("start_time"))).groupBy("weekday").agg(count("bike_id").alias("usage_count"), sum("duration").alias("total_duration")).orderBy("weekday")
        elif analysis_type == "date":
            result_df = bike_df.withColumn("date", date_format(col("start_time"), "yyyy-MM-dd")).groupBy("date").agg(count("bike_id").alias("usage_count")).orderBy("date")
        peak_hours = result_df.orderBy(col("usage_count").desc()).limit(5)
        result_list = [row.asDict() for row in result_df.collect()]
        peak_list = [row.asDict() for row in peak_hours.collect()]
        total_usage = bike_df.count()
        total_duration = bike_df.agg(sum("duration")).collect()[0][0]
        avg_duration = bike_df.agg(avg("duration")).collect()[0][0]
        response_data = {"time_distribution": result_list, "peak_periods": peak_list, "total_usage": total_usage, "total_duration": float(total_duration) if total_duration else 0, "avg_duration": float(avg_duration) if avg_duration else 0}
        return JsonResponse(response_data, safe=False)
class EnvironmentAnalysisView(View):
    def post(self, request):
        params = json.loads(request.body)
        start_date = params.get('start_date')
        end_date = params.get('end_date')
        bike_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/bike_db").option("driver", "com.mysql.jdbc.Driver").option("dbtable", "bike_data").option("user", "root").option("password", "123456").load()
        weather_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/bike_db").option("driver", "com.mysql.jdbc.Driver").option("dbtable", "weather_data").option("user", "root").option("password", "123456").load()
        bike_df = bike_df.withColumn("date", date_format(col("start_time"), "yyyy-MM-dd"))
        weather_df = weather_df.withColumn("date", date_format(col("weather_date"), "yyyy-MM-dd"))
        joined_df = bike_df.join(weather_df, "date", "left").filter((col("date") >= start_date) & (col("date") <= end_date))
        weather_impact = joined_df.groupBy("weather_type").agg(count("bike_id").alias("usage_count"), avg("duration").alias("avg_duration")).orderBy(col("usage_count").desc())
        temperature_impact = joined_df.withColumn("temp_range", when((col("temperature") < 10), "0-10℃").when((col("temperature") >= 10) & (col("temperature") < 20), "10-20℃").when((col("temperature") >= 20) & (col("temperature") < 30), "20-30℃").otherwise("30℃+")).groupBy("temp_range").agg(count("bike_id").alias("usage_count"), avg("duration").alias("avg_duration"))
        holiday_impact = joined_df.groupBy("is_holiday").agg(count("bike_id").alias("usage_count"), avg("duration").alias("avg_duration"))
        sunny_count = joined_df.filter(col("weather_type") == "晴天").count()
        rainy_count = joined_df.filter(col("weather_type") == "雨天").count()
        usage_diff = sunny_count - rainy_count if sunny_count and rainy_count else 0
        weather_list = [row.asDict() for row in weather_impact.collect()]
        temp_list = [row.asDict() for row in temperature_impact.collect()]
        holiday_list = [row.asDict() for row in holiday_impact.collect()]
        response_data = {"weather_impact": weather_list, "temperature_impact": temp_list, "holiday_impact": holiday_list, "sunny_rainy_diff": usage_diff}
        return JsonResponse(response_data, safe=False)
class UserBehaviorAnalysisView(View):
    def post(self, request):
        params = json.loads(request.body)
        start_date = params.get('start_date')
        end_date = params.get('end_date')
        bike_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/bike_db").option("driver", "com.mysql.jdbc.Driver").option("dbtable", "bike_data").option("user", "root").option("password", "123456").load()
        bike_df = bike_df.filter((col("start_time") >= start_date) & (col("start_time") <= end_date))
        user_frequency = bike_df.groupBy("user_id").agg(count("bike_id").alias("ride_count")).withColumn("user_type", when(col("ride_count") >= 20, "高频用户").when((col("ride_count") >= 10) & (col("ride_count") < 20), "中频用户").otherwise("低频用户")).groupBy("user_type").agg(count("user_id").alias("user_count"))
        duration_distribution = bike_df.withColumn("duration_range", when(col("duration") < 10, "0-10分钟").when((col("duration") >= 10) & (col("duration") < 30), "10-30分钟").when((col("duration") >= 30) & (col("duration") < 60), "30-60分钟").otherwise("60分钟+")).groupBy("duration_range").agg(count("bike_id").alias("count"))
        route_analysis = bike_df.groupBy("start_location", "end_location").agg(count("bike_id").alias("route_count")).orderBy(col("route_count").desc()).limit(10)
        user_hour_pattern = bike_df.withColumn("hour", hour(col("start_time"))).groupBy("user_id", "hour").agg(count("bike_id").alias("count")).groupBy("hour").agg(count("user_id").alias("active_users"))
        total_users = bike_df.select("user_id").distinct().count()
        avg_rides_per_user = bike_df.groupBy("user_id").agg(count("bike_id").alias("ride_count")).agg(avg("ride_count")).collect()[0][0]
        frequency_list = [row.asDict() for row in user_frequency.collect()]
        duration_list = [row.asDict() for row in duration_distribution.collect()]
        route_list = [row.asDict() for row in route_analysis.collect()]
        pattern_list = [row.asDict() for row in user_hour_pattern.collect()]
        response_data = {"user_frequency": frequency_list, "duration_distribution": duration_list, "popular_routes": route_list, "hour_pattern": pattern_list, "total_users": total_users, "avg_rides_per_user": float(avg_rides_per_user) if avg_rides_per_user else 0}
        return JsonResponse(response_data, safe=False)

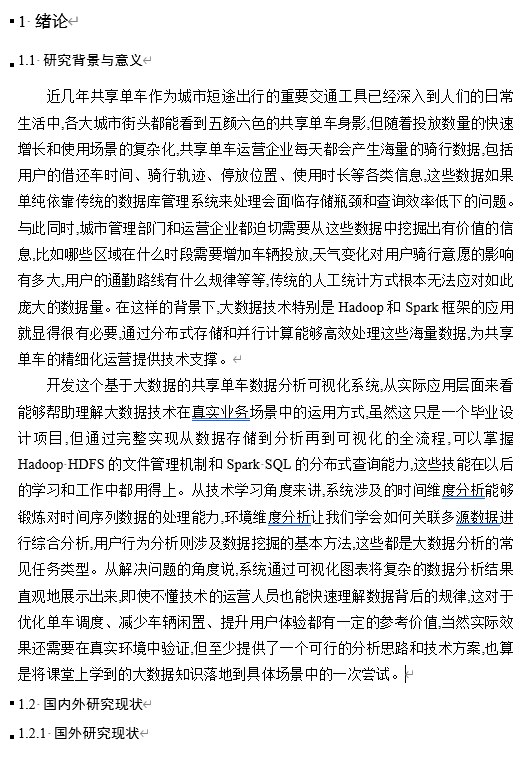

基于大数据的共享单车数据分析可视化系统文档展示
