目前这套流程只实现过基座系统（2025年11月14日的版本）

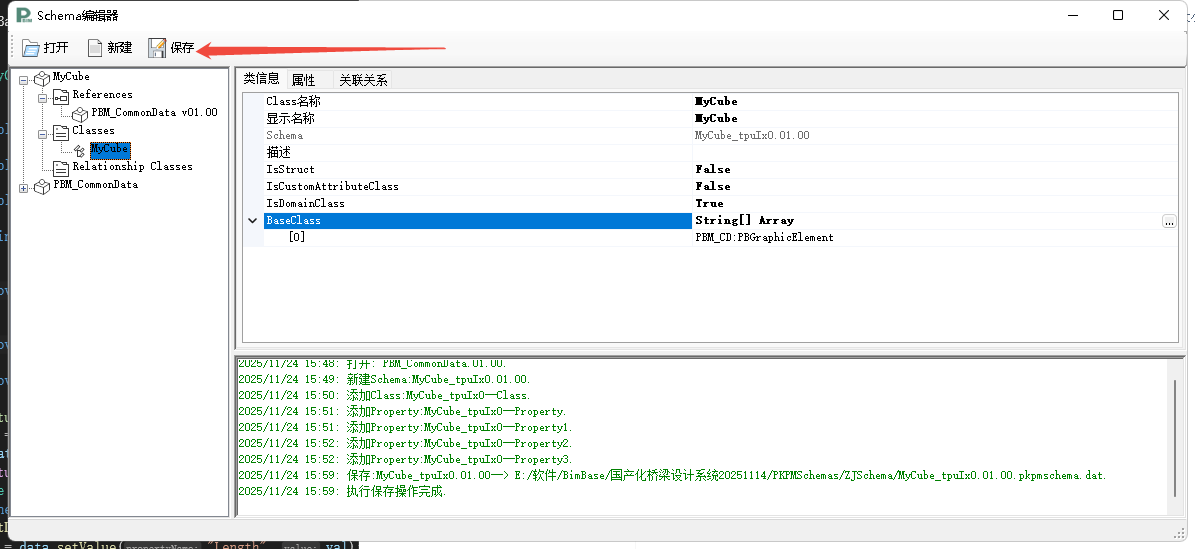

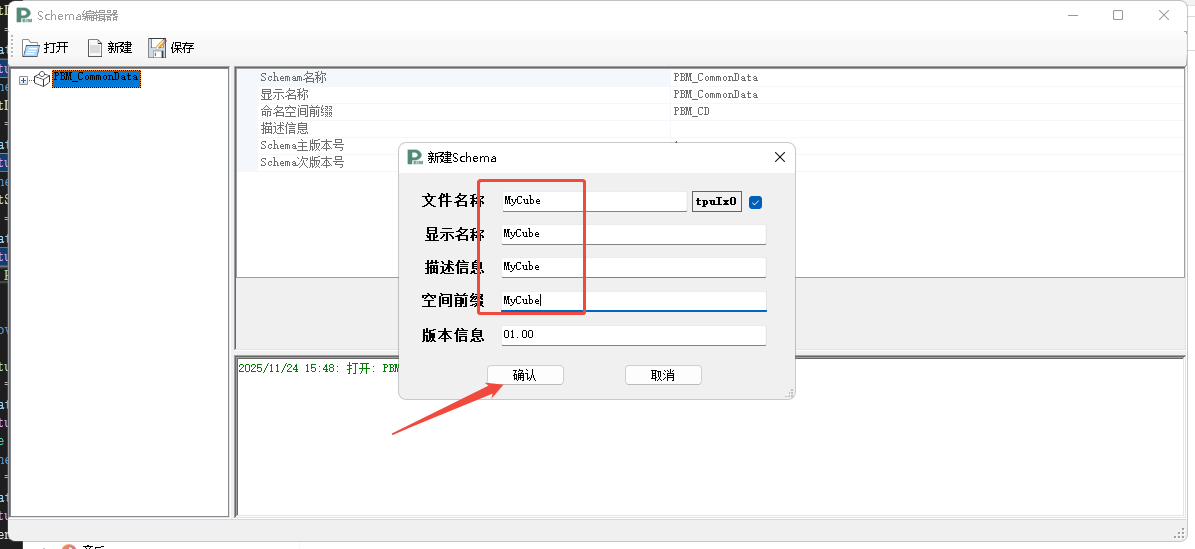

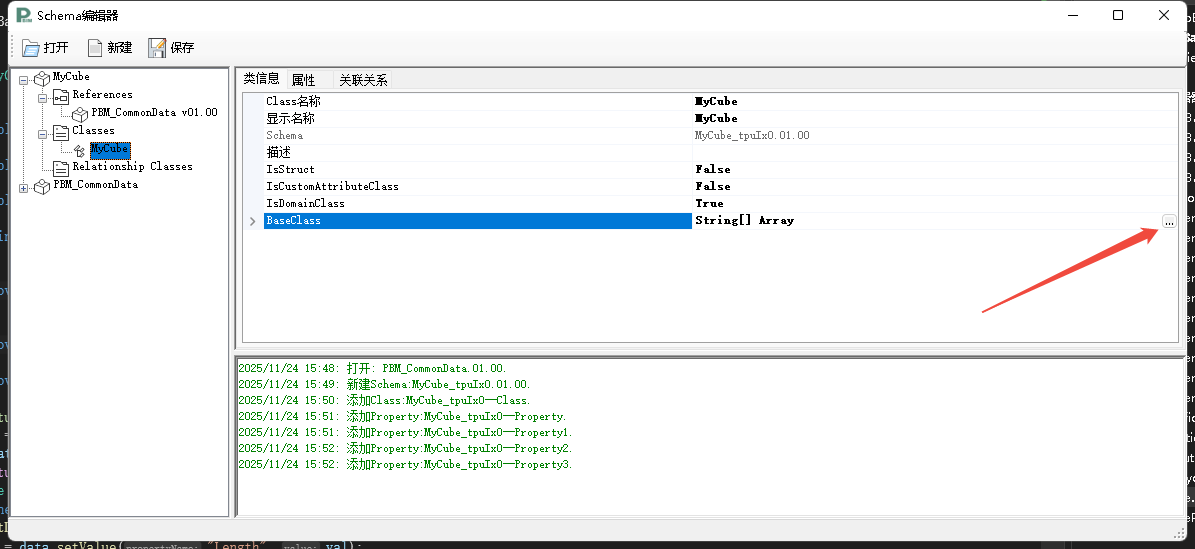

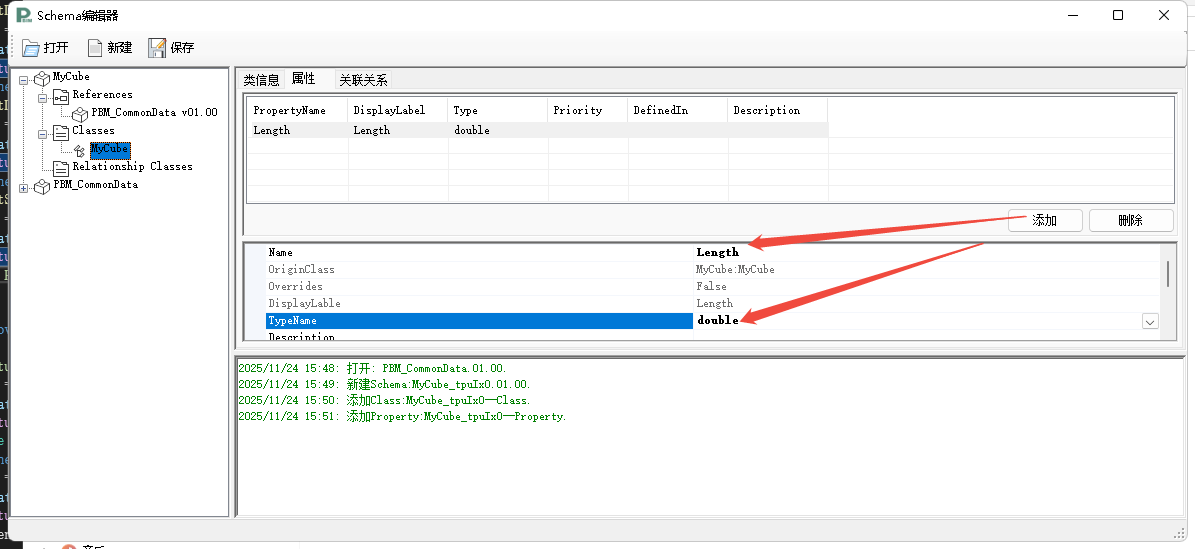

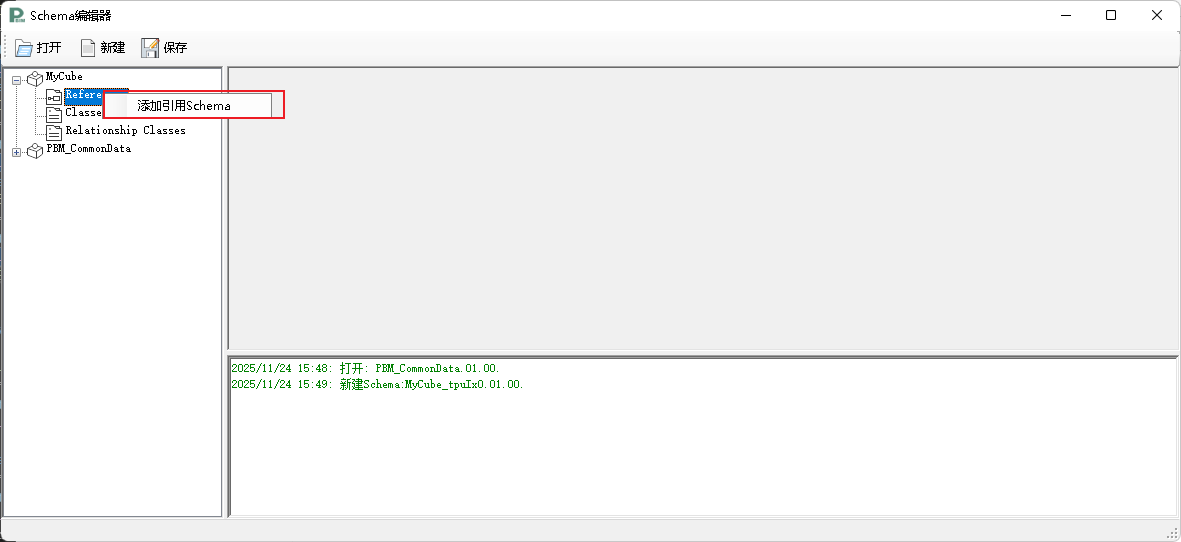

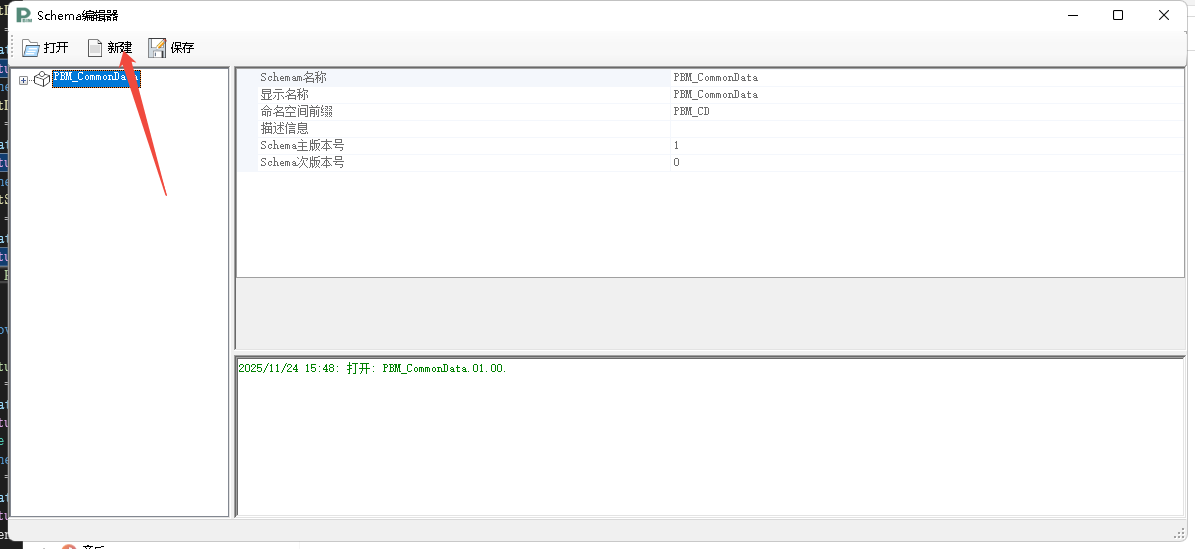

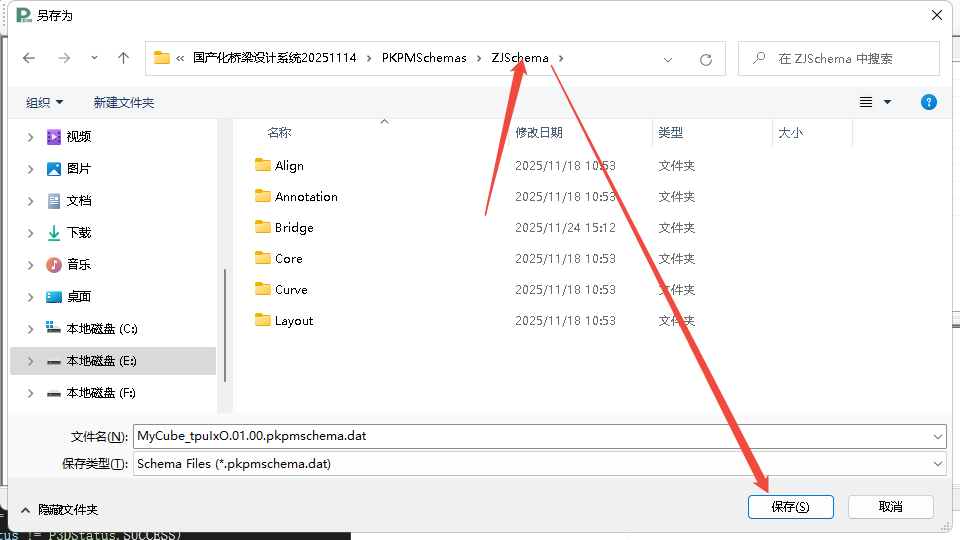

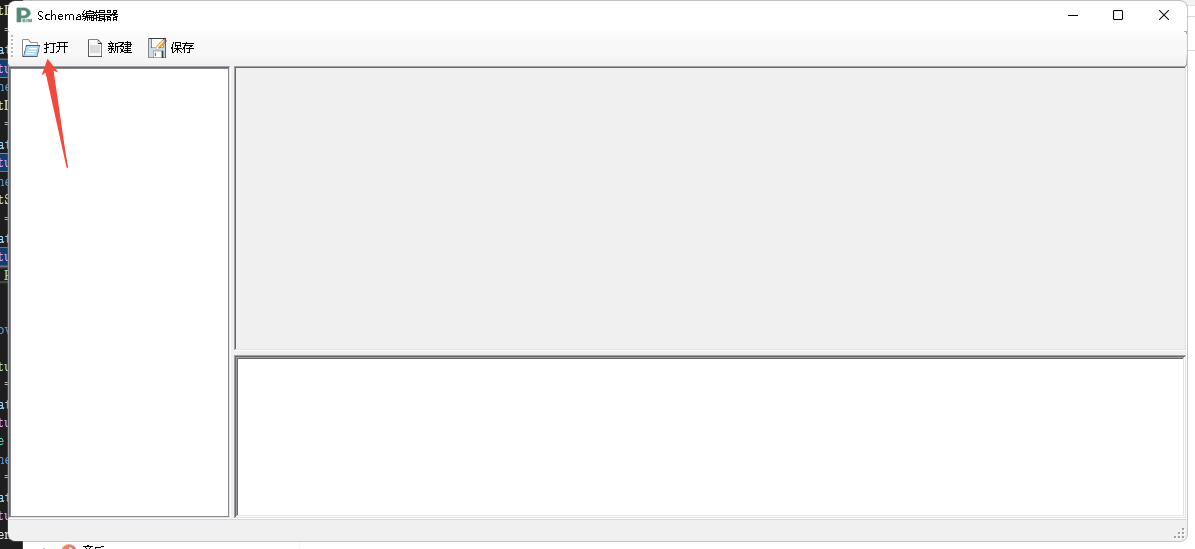

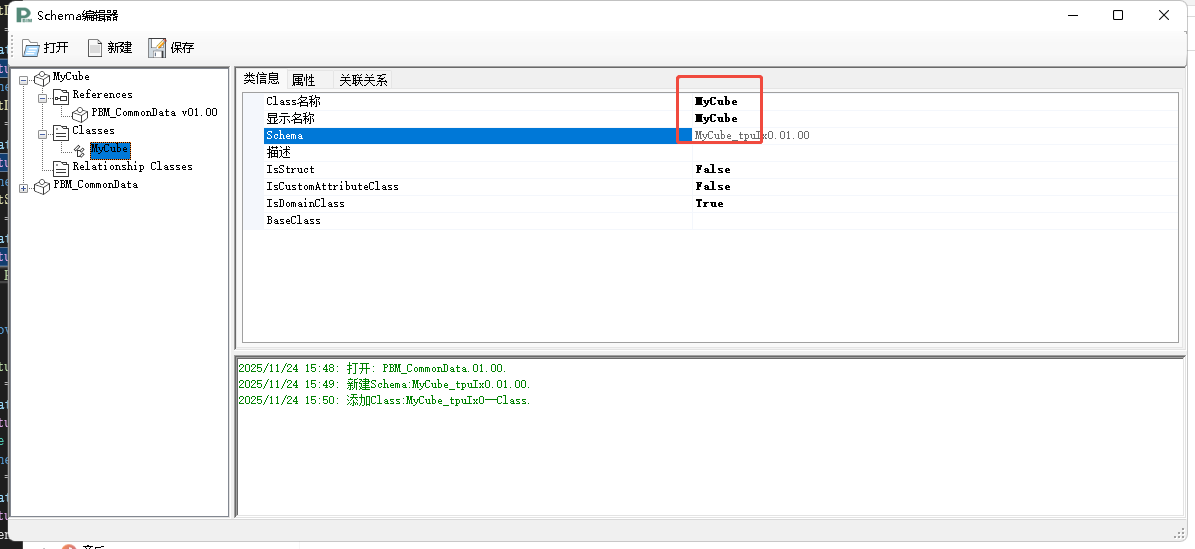

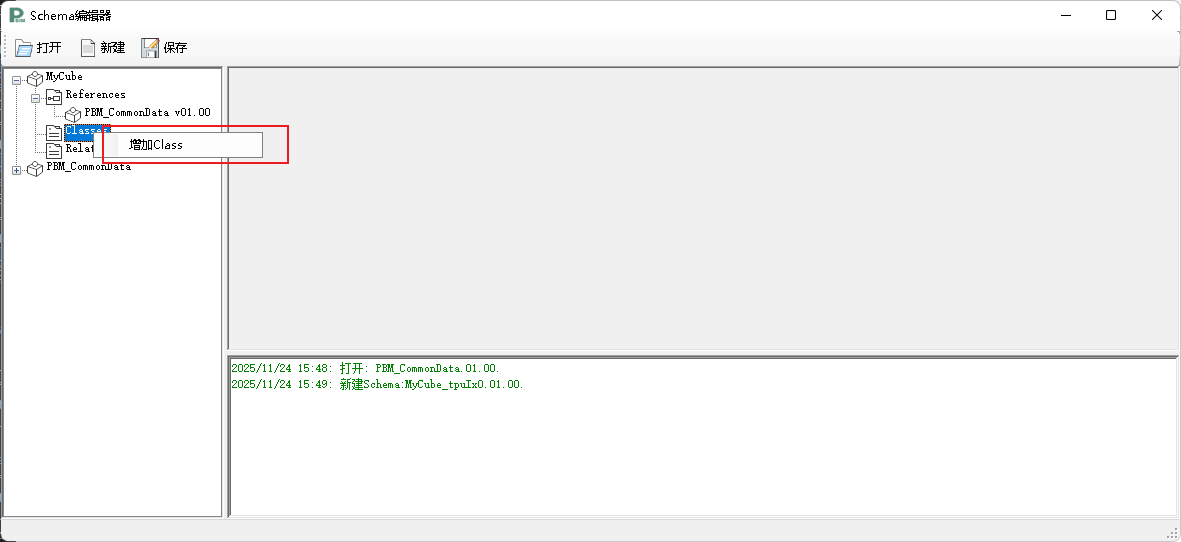

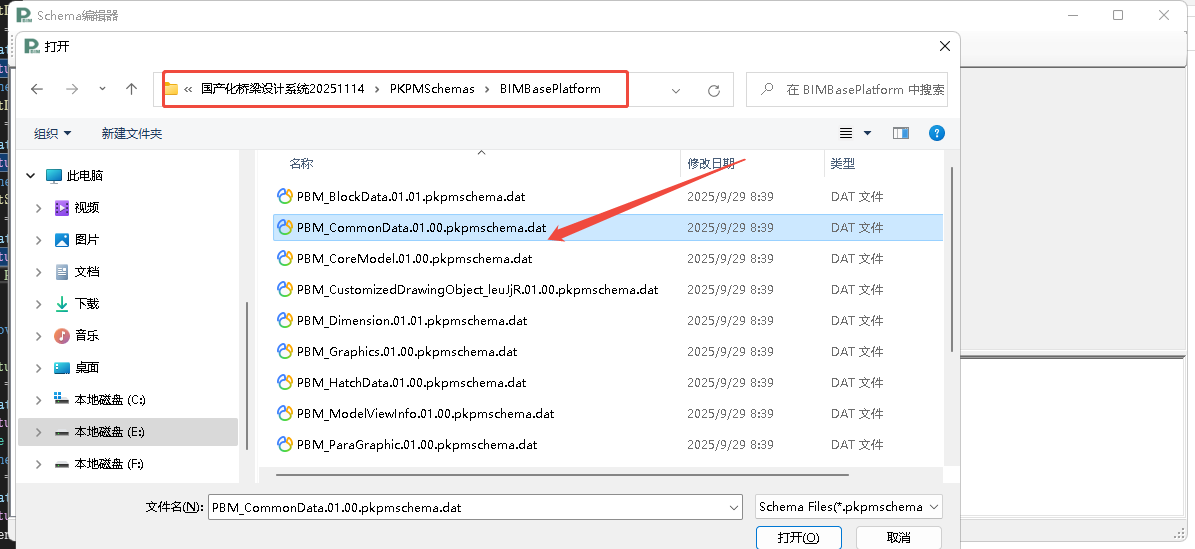

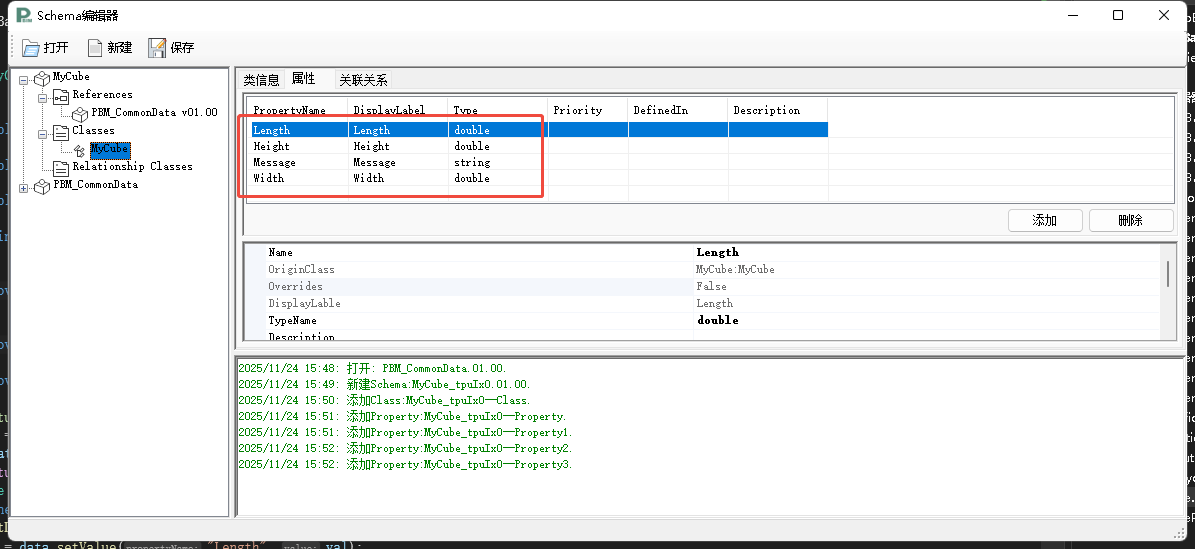

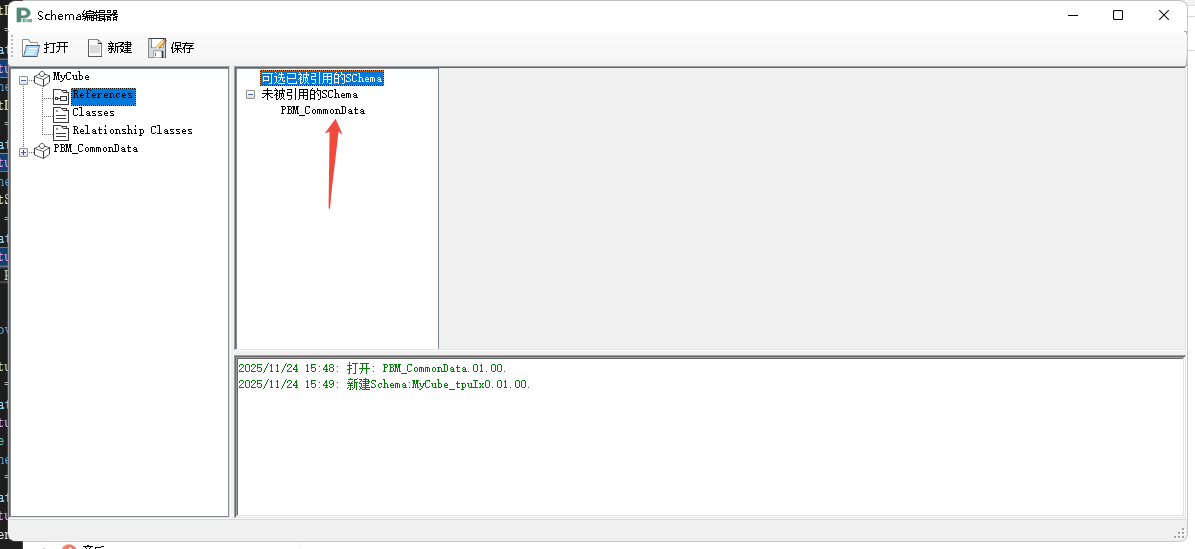

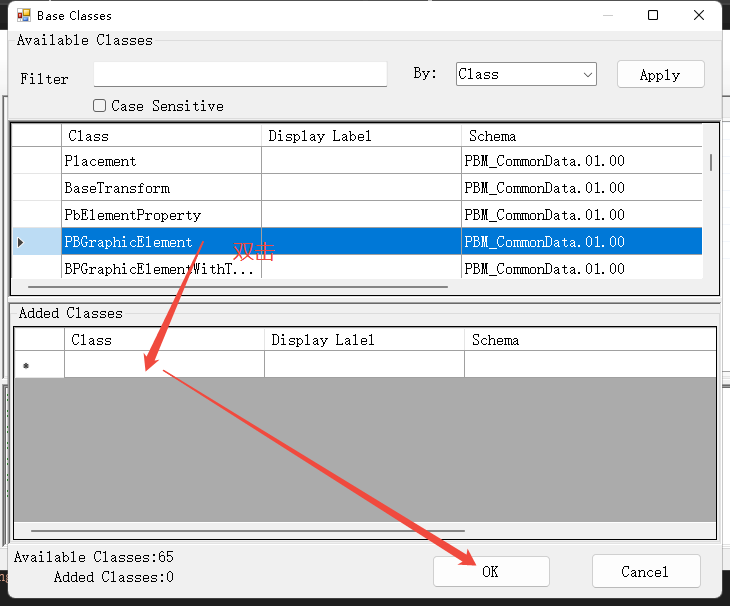

Schema编辑器这套

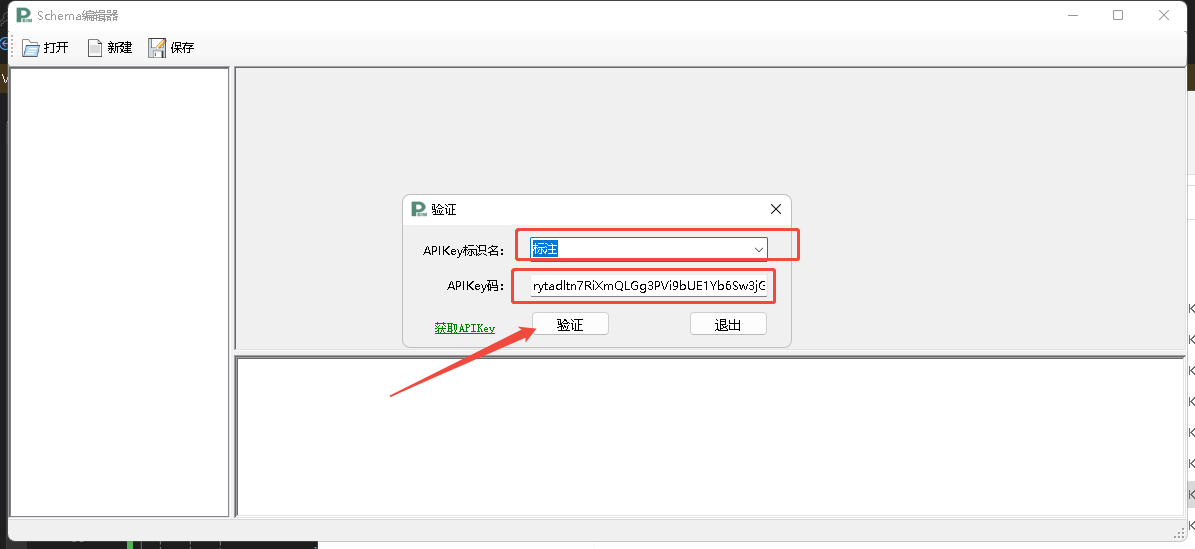

apikey需要申请

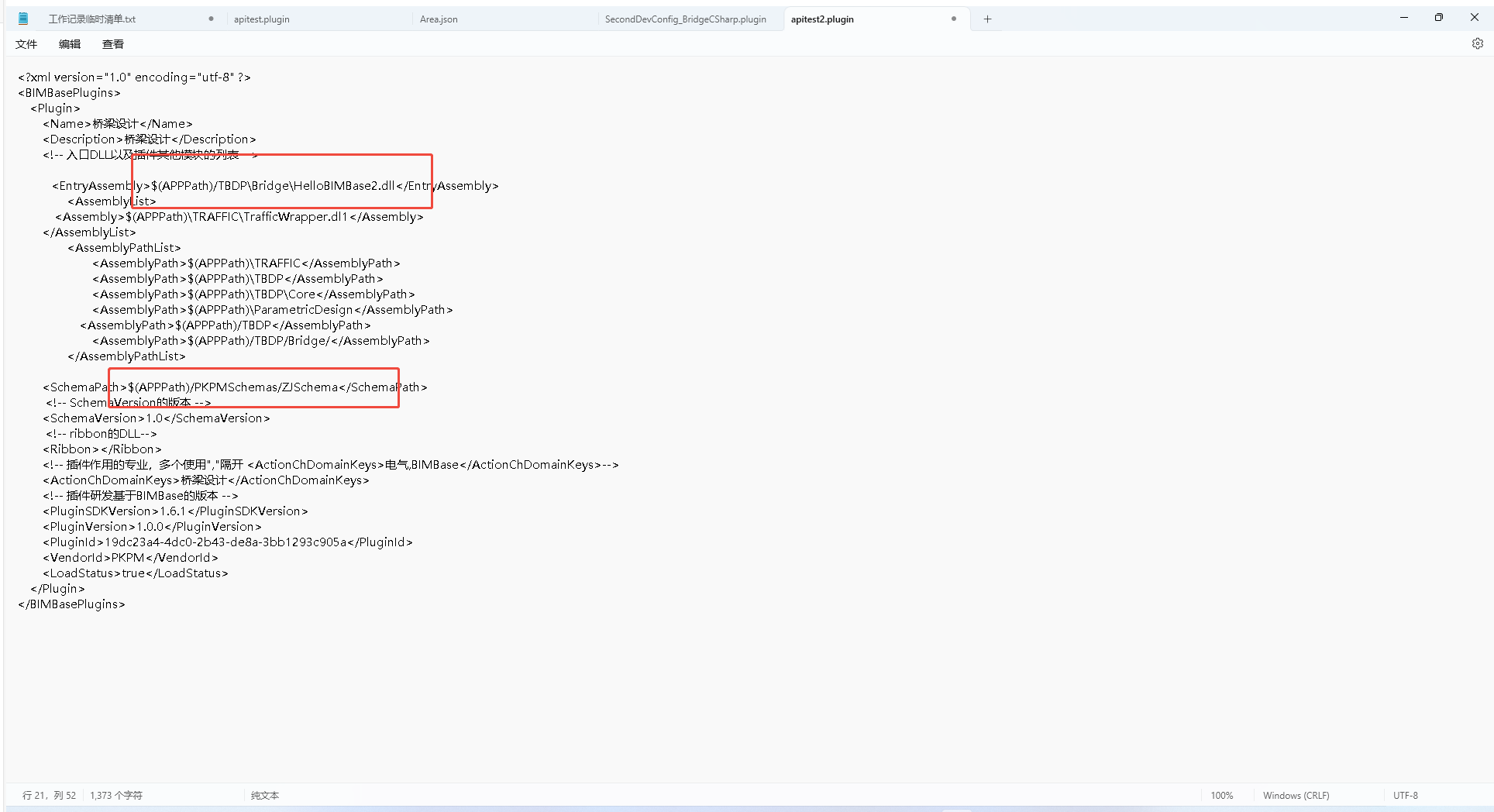

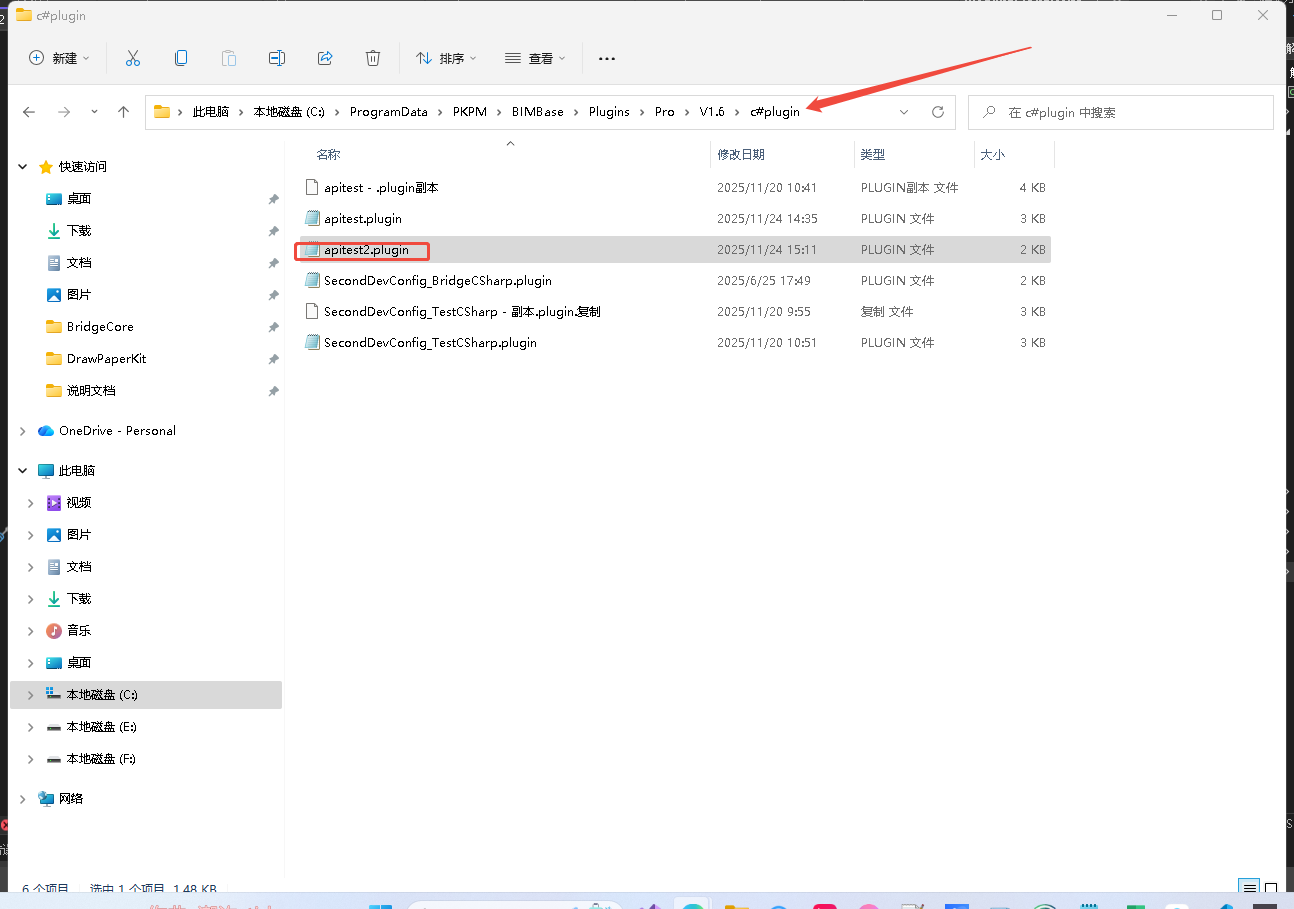

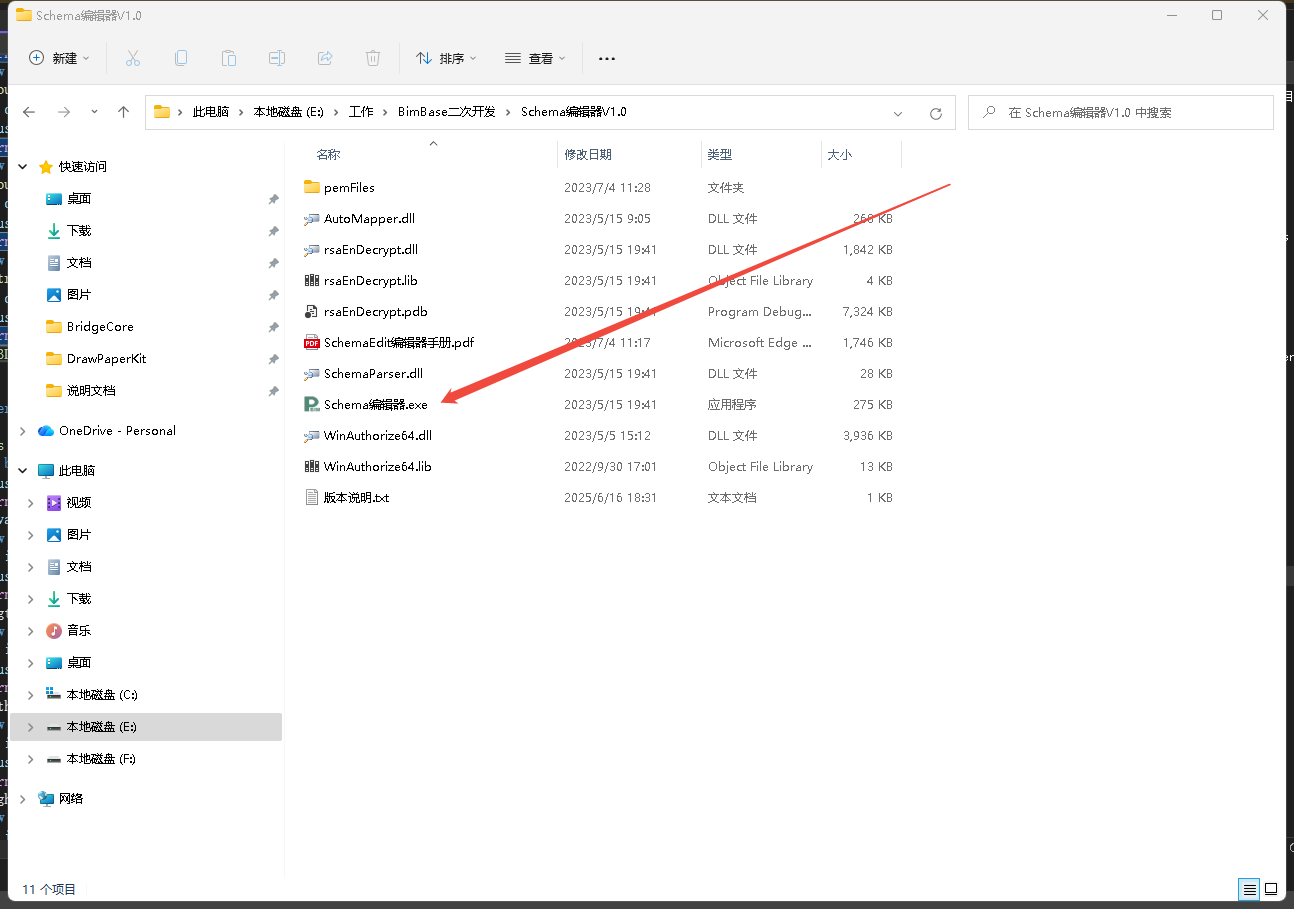

在软件安装目录找到

C#代码

引用

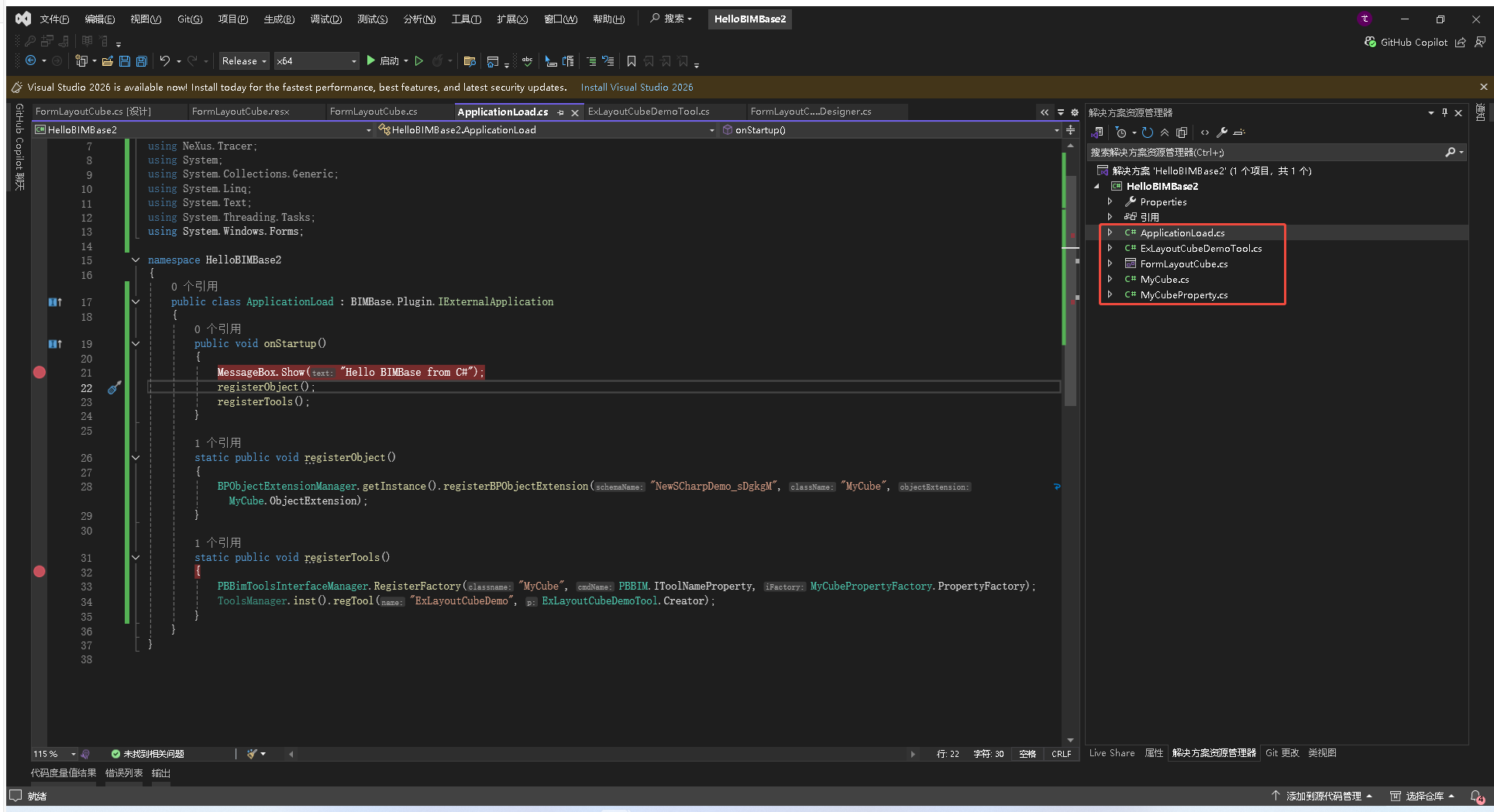

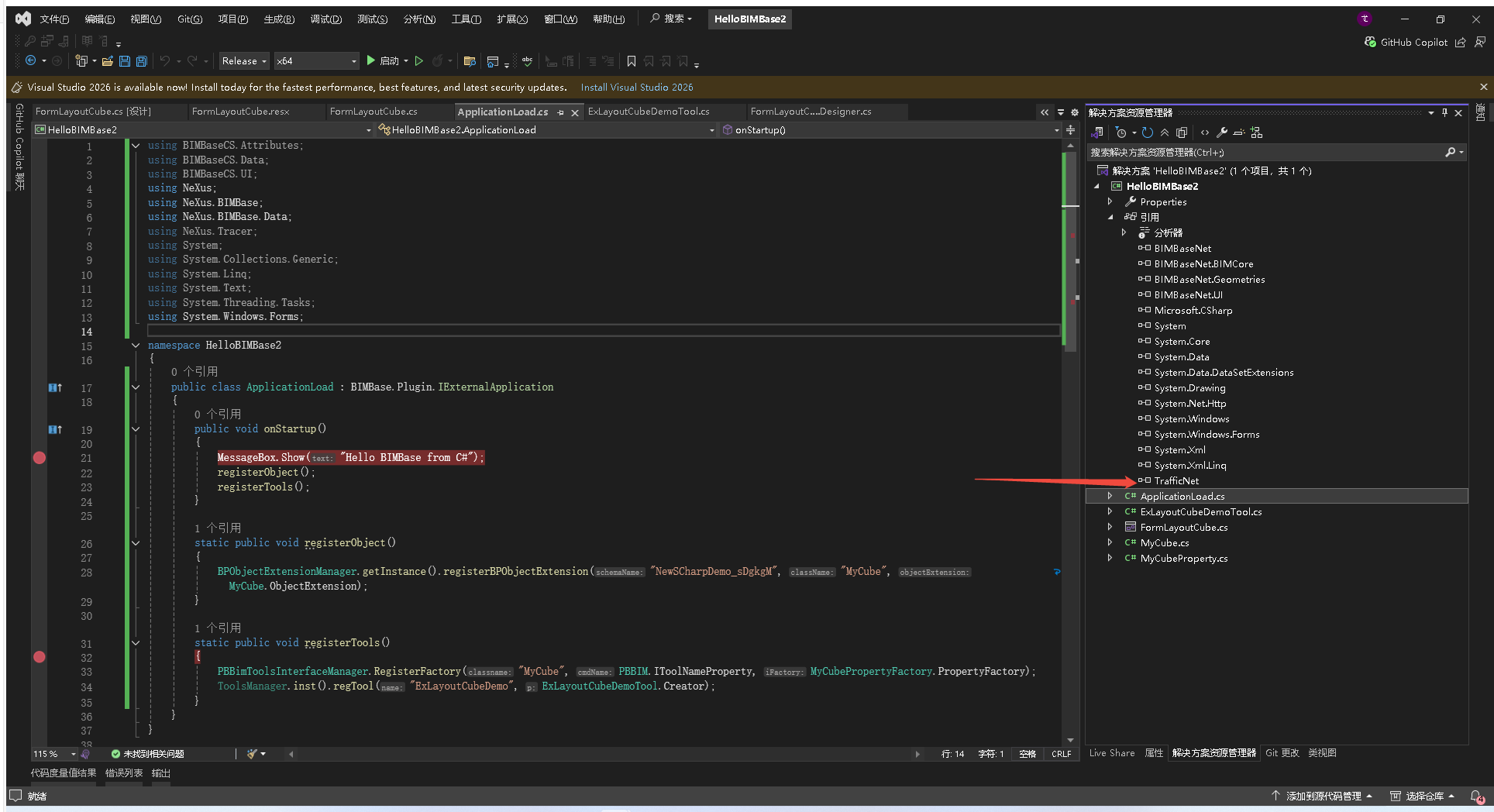

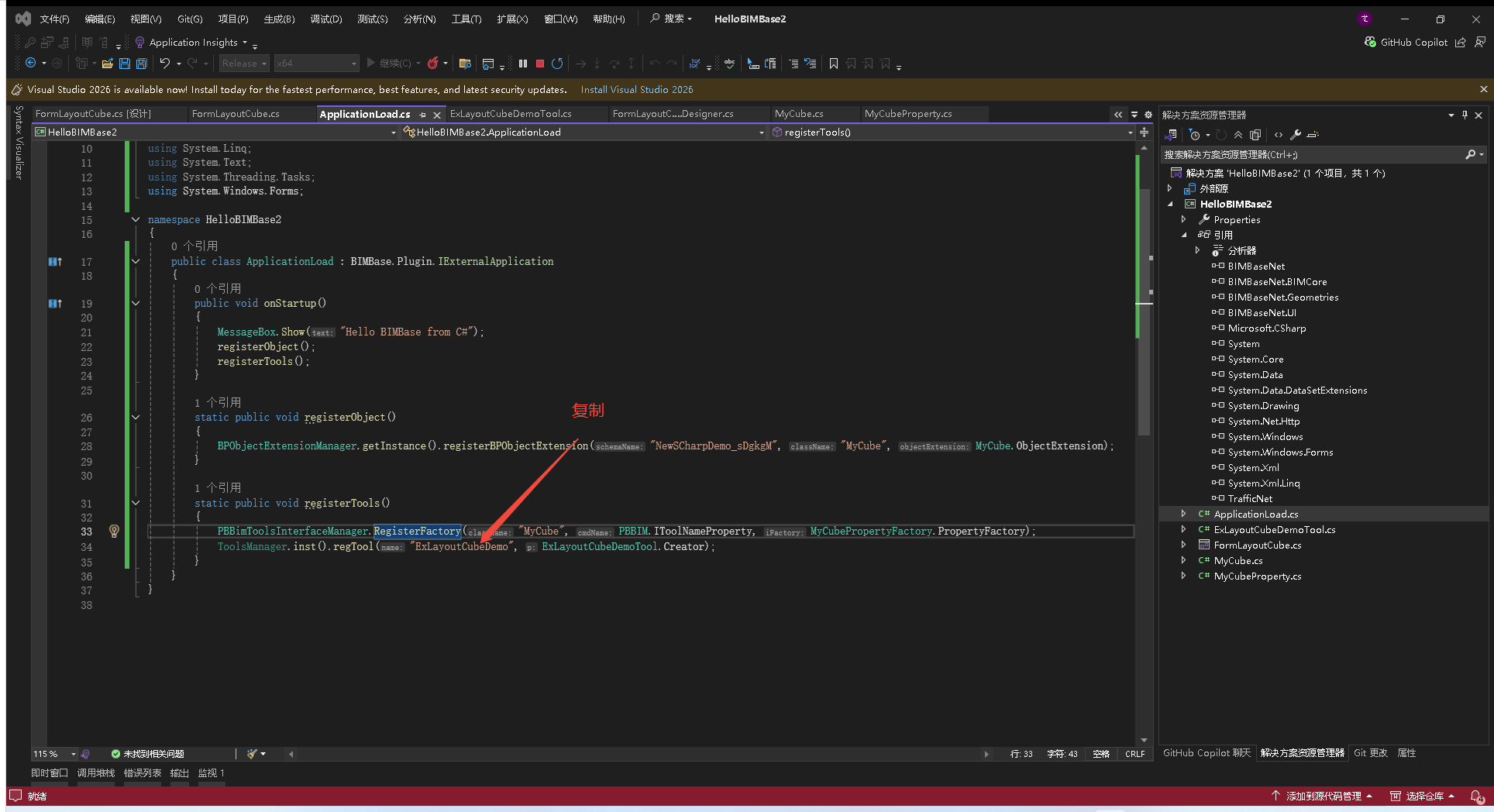

整体代码结构（注意要用x64编译）

ApplicationLoad.cs

using BIMBaseCS.Attributes;
using BIMBaseCS.Data;
using BIMBaseCS.UI;
using NeXus;
using NeXus.BIMBase;
using NeXus.BIMBase.Data;
using NeXus.Tracer;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace HelloBIMBase2
{
    public class ApplicationLoad : BIMBase.Plugin.IExternalApplication
    {
        public void onStartup()
        {
            MessageBox.Show("Hello BIMBase from C#");
            registerObject();
            registerTools();
        }

        static public void registerObject()
        {
            BPObjectExtensionManager.getInstance().registerBPObjectExtension("NewSCharpDemo_sDgkgM", "MyCube", MyCube.ObjectExtension);
        }

        static public void registerTools()
        {
            PBBimToolsInterfaceManager.RegisterFactory("MyCube", PBBIM.IToolNameProperty, MyCubePropertyFactory.PropertyFactory);
            ToolsManager.inst().regTool("ExLayoutCubeDemo", ExLayoutCubeDemoTool.Creator);
        }
    }
}

ExLayoutCubeDemoTool.cs

using HelloBIMBase2;
using NeXus;
using NeXus.BIMBase;
using NeXus.BIMBase.Core;
using NeXus.BIMBase.Data;
using NeXus.p3d;
using System;
using System.Collections.Generic;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Runtime.Remoting.Contexts;
//二进制存储加的
using System.Runtime.Serialization;
using System.Runtime.Serialization.Formatters.Binary;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace HelloBIMBase2
{
    //序列化
    public class SerializeObjectToString
    {
        public byte[] SerializeObject(Object obj)
        {

            IFormatter formatter = new BinaryFormatter();
            byte[] result = null;
            // byte
            using (MemoryStream stream = new MemoryStream())
            {
                formatter.Serialize(stream, obj);
                byte[] byt = new byte[stream.Length];
                byt = stream.ToArray();
                result = byt;
                stream.Flush();
            }
            return result;
        }
        //反序列化
        public Object DerializeObject(byte[] bt)
        {
            IFormatter formatter = new BinaryFormatter();
            Object obj = null;
            using (Stream stream = new MemoryStream(bt, 0, bt.Length))
            {
                obj = formatter.Deserialize(stream);
            }
            return obj;
        }

    }
}

namespace HelloBIMBase2
{
    public class BIMBaseWindow : System.Windows.Forms.IWin32Window
    {
        public IntPtr Handle
        {
            get { return TRAFFIC.getMainFrame(); }
        }
    }


    public class ExLayoutCubeDemoTool : PrimitiveTool<ExLayoutCubeDemoTool>
    {
        GePoint3d m_ptS;
        GePoint3d m_ptE;
        int m_nFlag = 0;
        int mLayoutType = 0;
        FormLayoutCube form = null;
        public ExLayoutCubeDemoTool()
        {
            mLayoutType = 0;
        }
        protected override void onPostInstall()
        {
            form = new FormLayoutCube();
            form.Show(new BIMBaseWindow());
        }

        protected override void onCleanup()
        {
            if (form != null) { form.Close(); }
            //base.onCleanup();
        }

        protected override void onExitTool()
        {
            base.onExitTool();
        }

        protected override bool onLeftClick(BPBaseButtonEvent ev)
        {
            P3DStatus status;
            BPProject project = ev.getViewport().getTargetModel().getBPProject();
            BPModel model = ev.getViewport().getTargetModel();
            if (mLayoutType == 0)
            {
                MyCube cube = new MyCube();
                BPPlacement placement = cube.placement;
                placement.setOrigin(ev.getPoint());
                cube.setPlacement(placement);

                HelloBIMBase2.SerializeObjectToString trans = new HelloBIMBase2.SerializeObjectToString();
                //把GePoint3d的数据存二进制
                GePoint3d pt = cube.placement.getOrigin();
                List<double> points = new List<double>();
                points.Add(pt.x);
                points.Add(pt.y);
                points.Add(pt.z);
                byte[] data = trans.SerializeObject(points);
                status = cube.addToProject(project, model.getModelId());
            }
            else
            {
                if (m_nFlag == 0)
                {
                    m_nFlag = 1;
                    GePoint3d pt = (ev.getPoint());
                    m_ptS = GePoint3d.create(pt.x, pt.y, pt.z);
                }
                else if (m_nFlag == 1)
                {
                    m_nFlag = 0;
                    GePoint3d pt = (ev.getPoint());
                    m_ptE = GePoint3d.create(pt.x, pt.y, pt.z);

                    MyCube cube = new MyCube
                    {
                        Length = (int)m_ptS.distance(m_ptE)
                    };
                    GeTransform trans = __setTransform();
                    BPPlacement place = new BPPlacement();
                    place.fromTransform(trans);
                    cube.setPlacement(place);

                    //把GePoint3d的数据存二进制
                    HelloBIMBase2.SerializeObjectToString ser = new HelloBIMBase2.SerializeObjectToString();
                    GePoint3d pt0 = cube.placement.getOrigin();
                    List<double> points = new List<double>();
                    points.Add(pt0.x);
                    points.Add(pt0.y);
                    points.Add(pt0.z);
                    byte[] data = ser.SerializeObject(points);

                    status = cube.addToProject(project, model.getModelId());

                }
            }

            return true;
        }

        public GeTransform __setTransform()
        {
            GeVec3d vecX = GeVec3d.createByStartEndNormalize(m_ptS, m_ptE);
            GeVec3d vecZ = GeVec3d.create(0, 0, 1);
            GeVec3d vecY = vecZ.cross(vecX);

            GeTransform trans = GeTransform.createByOriginAndVectors(m_ptS, vecX, vecY, vecZ);
            return trans;
        }


        protected override bool onRightClick(BPBaseButtonEvent ev)
        {
            BPModel model = ev.getViewport().getRootModel();
            BPProject project = model.getBPProject();

            BPEntityArray entities = BPEntityUtil.getEntitiesOfModel(out _, project, model.getModelId());
            if (entities.getCount() == 0)
            {
                callExitTool();
                return false;
            }
            BPEntity ent = entities.getByIndex((uint)(entities.getCount() - 1));
            if (ent == null)
            {
                callExitTool();
                return true;
            }
            BPObject obj = ObjectExtensionManager.getBPObject(ent);
            if (obj == null)
            {
                callExitTool();
                return true;
            }
            MyCube cube = obj as MyCube;
            if (cube == null)
            {
                callExitTool();
                return true;
            }

            //HelloBIMBase2.SerializeObjectToString trans = new HelloBIMBase2.SerializeObjectToString();
            //Object sysobj = trans.DerializeObject(cube.binaryData);
            //List<double> points = new List<double>();
            //points = sysobj as List<double>;
            //GePoint3d pt = GePoint3d.create(points[0], points[1], points[2]);

            callExitTool();

            return true;
        }

        protected override bool onMouseMove(BPBaseButtonEvent ev)
        {
            if (!getDynamicsStarted())
                _beginDynamics();
            return true;
        }
        protected override void onDynamicFrame(BPBaseButtonEvent ev)
        {
            mLayoutType = form.mLayoutType;
            BPProject project = ev.getViewport().getTargetModel().getBPProject();
            BPModel model = ev.getViewport().getTargetModel();
            if (mLayoutType == 0)
            {
                MyCube cube = new MyCube();
                BPGraphics graphics = cube.createPhysicalGraphics(project, model.getModelId(), true);
                if (graphics == null) return;

                GePoint3d pt = GePoint3d.create(ev.getPoint().x, ev.getPoint().y);
                GeTransform trans = GeTransform.create(pt);

                BPGraphicsUtils.transformPhysicalGraphics(graphics, trans);
                graphics.finish();
                BPRedrawEntitys redrawElems = new BPRedrawEntitys();
                redrawElems.setDrawMode(BPDrawMode.enTempDraw);
                redrawElems.setDrawPurpose(BPDrawPurpose.enDynamics);
                redrawElems.setDynamicsViews(ev.getViewport());
                redrawElems.doRedraw(graphics.getEntityR());
            }
            else
            {
                if (m_nFlag == 0) return;
                GePoint3d pt = GePoint3d.create(ev.getPoint().x, ev.getPoint().y);
                m_ptE = GePoint3d.create(ev.getPoint().x, ev.getPoint().y);

                MyCube cube = new MyCube();
                cube.Length = (int)m_ptS.distance(m_ptE);


                BPGraphics graphics = cube.createPhysicalGraphics(project, model.getModelId(), true);

                GeTransform trans = __setTransform();
                BPGraphicsUtils.transformPhysicalGraphics(graphics, trans);

                graphics.finish();

                BPRedrawEntitys redrawElems = new BPRedrawEntitys();
                redrawElems.setDrawMode(BPDrawMode.enTempDraw);
                redrawElems.setDrawPurpose(BPDrawPurpose.enDynamics);
                redrawElems.setDynamicsViews(ev.getViewport());
                redrawElems.doRedraw(graphics.getEntityR());
            }
        }
    }
}

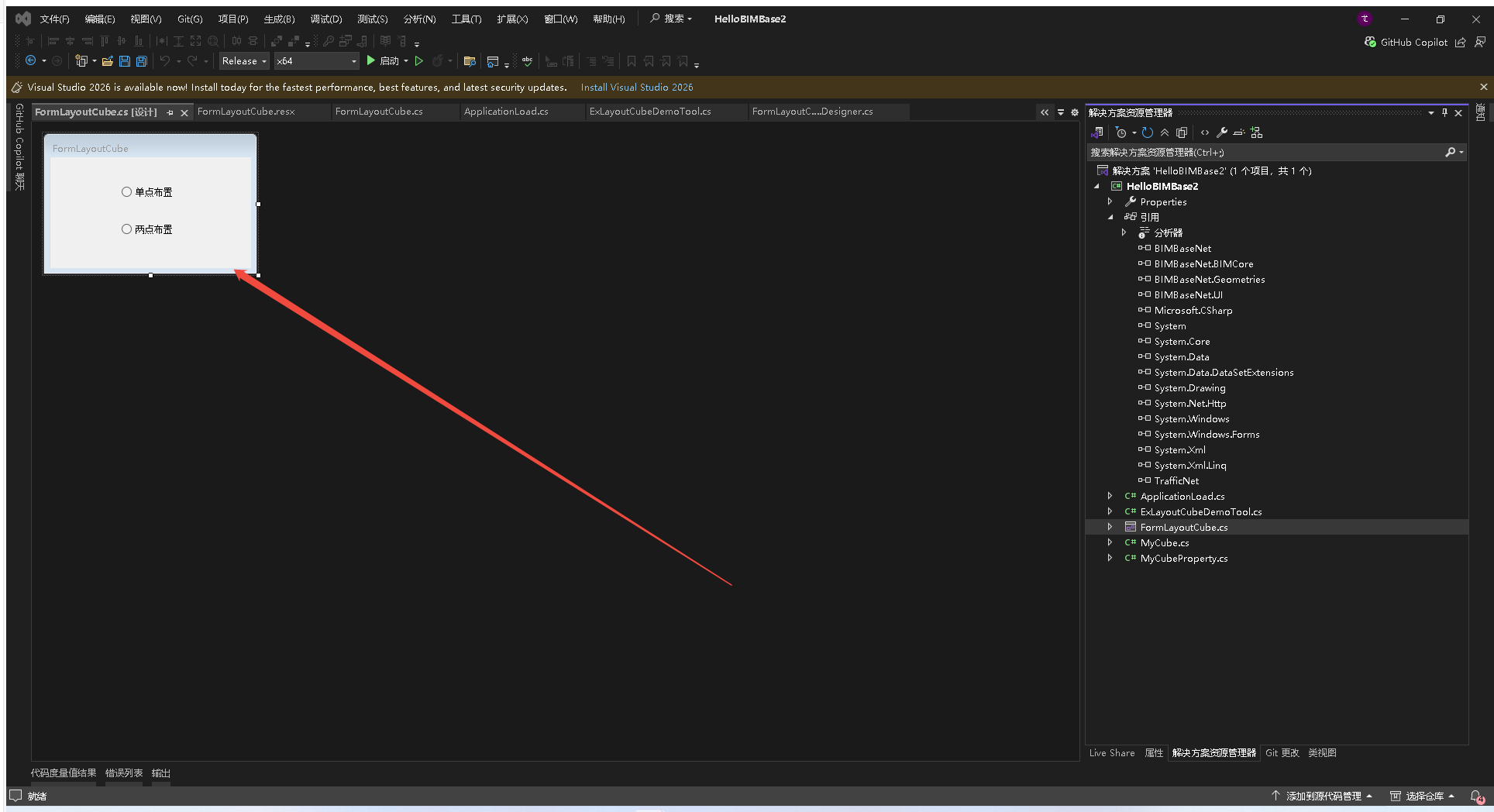

FormLayoutCube.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace HelloBIMBase2
{
    public partial class FormLayoutCube : Form
    {

        public int mLayoutType { get { return mmLayoutType; } }
        int mmLayoutType = 0;
        public FormLayoutCube()
        {
            InitializeComponent();
            singlePoint.Checked = true;
            twoPoint.Checked = false;
        }

        private void SinglePoint_CheckedChanged(object sender, EventArgs e)
        {
            if (singlePoint.Checked)
                mmLayoutType = 0;
        }

        private void TwoPoint_CheckedChanged(object sender, EventArgs e)
        {
            if (twoPoint.Checked)
                mmLayoutType = 1;
        }
    }
}

MyCube.cs

using BIMBaseCS.Attributes;
using BIMBaseCS.UI;
using NeXus;
using NeXus.BIMBase;
using NeXus.BIMBase.Core;
using NeXus.p3d;
using NeXus.Traffic;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.NetworkInformation;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Xml.Linq;

namespace HelloBIMBase2
{
    public class MyCube: GraphicElement<MyCube>
    {
        public double Length { get; set; } = 1000.0;
        public double Width { get; set; } = 1000.0;
        public double Height { get; set; } = 1000.0;
        public string Message { get; set; } = "成功";

        protected override string _getClassName()
        {
            return "MyCube";
        }

        protected override string _getSchemaName()
        {
            return "NewSCharpDemo_sDgkgM";
        }
        protected override P3DStatus _copyToData(BPData data, BPProject project)
        {
            P3DStatus status = 0;
            status = base._copyToData(data, project);
            if (status != P3DStatus.SUCCESS)
                return status;
            BPValue val;
            val = new BPValue();
            val.setDouble(this.Length);
            status = data.setValue("Length", val);
            if (status != P3DStatus.SUCCESS)
                return status;
            val = new BPValue();
            val.setDouble(this.Width);
            status = data.setValue("Width", val);
            if (status != P3DStatus.SUCCESS)
                return status;
            val = new BPValue();
            val.setDouble(this.Height);
            status = data.setValue("Height", val);
            if (status != P3DStatus.SUCCESS)
                return status;
            val = new BPValue();
            val.setString(this.Message);
            status = data.setValue("Message", val);
            if (status != P3DStatus.SUCCESS)
                return status;
            return P3DStatus.SUCCESS;
        }
        protected override P3DStatus _initFromData(BPData instance)
        {
            P3DStatus status = 0;
            status = base._initFromData(instance);
            if (status != P3DStatus.SUCCESS)
                return status;
            BPValue val;
            val = new BPValue();
            status = instance.getValue(val, "Length");
            if (status != P3DStatus.SUCCESS)
                return status;
            this.Length = val.getDouble();
            val = new BPValue();
            status = instance.getValue(val,"Width" );
            if (status != P3DStatus.SUCCESS)
                return status;
            this.Width = val.getDouble();
            val = new BPValue();
            status = instance.getValue(val,"Height" );
            if (status != P3DStatus.SUCCESS)
                return status;
            this.Height = val.getDouble();
            val = new BPValue();
            status = instance.getValue(val,"Message" );
            if (status != P3DStatus.SUCCESS)
                return status;
            this.Message = val.getString();
            return P3DStatus.SUCCESS;
        }
        protected override BPGraphics _createPhysicalGraphics(BPProject project, PModelId modelId, bool isDynamics)
        {
            BPModel model = project.loadModelById(modelId);

            BPGraphics graphics = model.createPhysicalGraphics();

            if (graphics == null)
            {
                return graphics;
            }

            GePoint3d Point1 = GePoint3d.create(this.Length, 0, 0);
            GePoint3d Point2 = GePoint3d.create(this.Length, this.Width, 0);
            GePoint3d Point3 = GePoint3d.create(0, this.Width, 0);
            GePoint3d Point4 = GePoint3d.create(0, 0, 0);

            GePoint3dCollection listp = new GePoint3dCollection
            {
                Point1,
                Point2,
                Point3,
                Point4
            };

            GeCurveArray curve = GeCurveArray.createLinestringArray(listp, GeCurveArray.BoundaryType.BOUNDARY_TYPE_Outer, false);
            GeExtrusionInfo info = new GeExtrusionInfo(curve, GeVec3d.create(0, 0, this.Height), true);
            IGeSolidBase solid = IGeSolidBase.createGeExtrusion(info);


            BPSymbology symb = BPGraphics.getDefaultSymbology();
            symb.weight = 3;
            //symb.color = (uint)System.Drawing.Color.Blue.ToArgb();
            graphics.addGeSolidBase(solid, symb, 0);
            return graphics;
        }
    }
}

MyCubeProperty.cs

using HelloBIMBase2;
using NeXus;
using NeXus.BIMBase;
using NeXus.BIMBase.Core;
using NeXus.BIMBase.Data;
using NeXus.p3d;
using NeXus.Traffic;
using NeXus.Traffic.Data;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
//using BridgeBIMCore;

namespace HelloBIMBase2
{
    public class MyCubeProperty : IToolProperty
    {
        enum EnCubeProperty
        {
            Length,
            Width,
            Height,
            Message
        }

        public override void OnPropertyGet(BPEntityPArrayList refps, PBBimUIProperyList lst)
        {
            if (refps.Count == 0)
                return;
             BPEntity entity = refps[0];
            if (entity == null)
                return;

            string clsName = entity.getClassName();

            if (clsName == "MyCube")
            {
                OnPlaneLineGet(refps, lst);
            }
        }
        public override TIErrorStatus OnPropertySet(BPEntityPArrayList refps, int index, PBBimUIPropertyItem item)
        {
            if (refps.Count == 0)
                return TIErrorStatus.failed;
            BPEntity entity = refps[0];
            if (entity == null)
                return TIErrorStatus.failed;

            string clsName = entity.getClassName();

            if (clsName == "MyCube")
            {
                return OnPlaneLineSet(refps, index, item);
            }

            return TIErrorStatus.failed;

        }

        /// <summary>
        ///
        /// </summary>
        /// <param name="refps"></param>
        /// <param name="lst"></param>
        void OnPlaneLineGet(BPEntityPArrayList refps, PBBimUIProperyList lst)
        {
            BPModel model;
            int nEle = -1;
            List<PBBimUIPropertyItem> properties = new List<PBBimUIPropertyItem>();
            foreach (BPEntity entity in refps)
            {
                if (entity == null) continue;
                model = entity.getBPModel();
                if (model == null) continue;
                if (null == entity.getBPProject()) continue;

                IBPObject pBObject = ObjectExtensionManager.getBPObject(entity);
                if (pBObject==null) continue;

                MyCube cube = pBObject as MyCube;
                if (cube == null) continue;
                PBBimUIPropertyItem item1 = new PBBimUIPropertyItem("长度", cube.Length);
                properties.Add(item1);
                item1 = new PBBimUIPropertyItem("宽度", cube.Width);
                properties.Add(item1);
                item1 = new PBBimUIPropertyItem("高度", cube.Height);
                properties.Add(item1);
                item1 = new PBBimUIPropertyItem("消息", cube.Message);
                properties.Add(item1);
                //item1 = new PBBimUIPropertyItem("结构类型", cube.StructureTypeName);
                //properties.Add(item1);
            }
            lst.AppendGroup("扩展属性");
            for (uint i = 0; i < properties.LongCount(); i++)
            {
                lst.Append(i, properties[(int)i]);
            }

        }

        TIErrorStatus OnPlaneLineSet(BPEntityPArrayList refps, int index, PBBimUIPropertyItem item)
        {
            foreach (BPEntity entity in refps)
            {
                if (entity == null)
                    continue;

                BPModel model = entity.getBPModel();
                if (model == null) continue;

                BPProject project = entity.getBPProject();
                if (project == null) continue;

                IBPObject pBObject = ObjectExtensionManager.getBPObject(entity);
                if (pBObject==null) continue;
                MyCube cube = pBObject as MyCube;
                if (cube == null) continue;

                switch ((EnCubeProperty)(index))
                {
                    case EnCubeProperty.Length:
                        {
                            double _value = 0.0;
                            if (!item.getValue( ref _value)) return TIErrorStatus.failed;
                            cube.Length = _value;
                            break;
                        }
                    case EnCubeProperty.Width:
                        {
                            double _value = 0.0;
                            if (!item.getValue(ref _value)) return TIErrorStatus.failed;
                            cube.Width = _value;
                            break;
                        }
                    case EnCubeProperty.Height:
                        {
                            double _value = 0.0;
                            if (!item.getValue(ref _value)) return TIErrorStatus.failed;
                            cube.Height = _value;
                            break;
                        }
                    case EnCubeProperty.Message:
                        {
                            string _value = "test";
                            if (!item.getValue(ref _value)) return TIErrorStatus.failed;
                            cube.Message = _value;
                            break;
                        }
                    /*case EnCubeProperty.StructuretypeName:
                        {
                            if (!item.getValue(ref _value)) return TIErrorStatus.failed;
                            cube.StructureTypeName = _value;
                            break;
                        }*/
                    default:
                        {
                        }
                        break;
                }
            }

            return TIErrorStatus.succeed;
        }

        void CheckMultiValuelist(List<PBBimUIPropertyItem> properties, string dVal, string name, int nIndex, int nItem, bool bReadOnly = false)
        {

            if (properties.Count <= nItem)
            {
                PBBimUIPropertyItem item = new PBBimUIPropertyItem(name, dVal);
                properties.Add(item);
                properties[nItem].setReadOnly(bReadOnly);

            }
            else
            {
                if (!properties[nItem].multiValue())     // 比较判断是否为多值
                {
                    double dTmp = 0;
                    //if (properties[nItem].getValue(ref dTmp) && Math.Abs(dTmp - dVal) > 1e-3)
                        properties[nItem].setMultiValue(true);
                }
                properties[nItem].setReadOnly(bReadOnly || properties[nItem].readOnly());
            }

        }
    }

    class MyCubePropertyFactory : IToolInterfaceFactory
    {
        static MyCubePropertyFactory mFactory;
        public static IToolInterfaceFactory PropertyFactory
        {
            get
            {
                if (mFactory == null) { mFactory = new MyCubePropertyFactory(); }
                return mFactory;
            }
        }
        public override IToolInterface CreateInterface()
        {
            MyCubeProperty p = new MyCubeProperty();
            p.AddRef();
            return p;
        }
    };
}

配置.plugin文件

在这个位置添加apitest2.plugin文件

<?xml version="1.0" encoding="utf-8" ?>
<BIMBasePlugins>
    <Plugin>
        <Name>桥梁设计</Name>
        <Description>桥梁设计</Description>
        <!-- 入口DLL以及插件其他模块的列表 -->

	   <EntryAssembly>$(APPPath)/TBDP\Bridge\HelloBIMBase2.dll</EntryAssembly>
		<AssemblyList>
            <Assembly>$(APPPath)\TRAFFIC\TrafficWrapper.dl1</Assembly>
        </AssemblyList>
		<AssemblyPathList>
			<AssemblyPath>$(APPPath)\TRAFFIC</AssemblyPath>
			<AssemblyPath>$(APPPath)\TBDP</AssemblyPath>
			<AssemblyPath>$(APPPath)\TBDP\Core</AssemblyPath>
			<AssemblyPath>$(APPPath)\ParametricDesign</AssemblyPath>
		    <AssemblyPath>$(APPPath)/TBDP</AssemblyPath>
			<AssemblyPath>$(APPPath)/TBDP/Bridge/</AssemblyPath>
		</AssemblyPathList>

        <SchemaPath>$(APPPath)/PKPMSchemas/ZJSchema</SchemaPath>
         <!-- SchemaVersion的版本 -->
        <SchemaVersion>1.0</SchemaVersion>
         <!-- ribbon的DLL-->
        <Ribbon></Ribbon>
        <!-- 插件作用的专业，多个使用","隔开 <ActionChDomainKeys>电气,BIMBase</ActionChDomainKeys>-->
        <ActionChDomainKeys>桥梁设计</ActionChDomainKeys>
        <!-- 插件研发基于BIMBase的版本 -->
        <PluginSDKVersion>1.6.1</PluginSDKVersion>
        <PluginVersion>1.0.0</PluginVersion>
        <PluginId>19dc23a4-4dc0-2b43-de8a-3bb1293c905a</PluginId>
        <VendorId>PKPM</VendorId>
        <LoadStatus>true</LoadStatus>
    </Plugin>
</BIMBasePlugins>

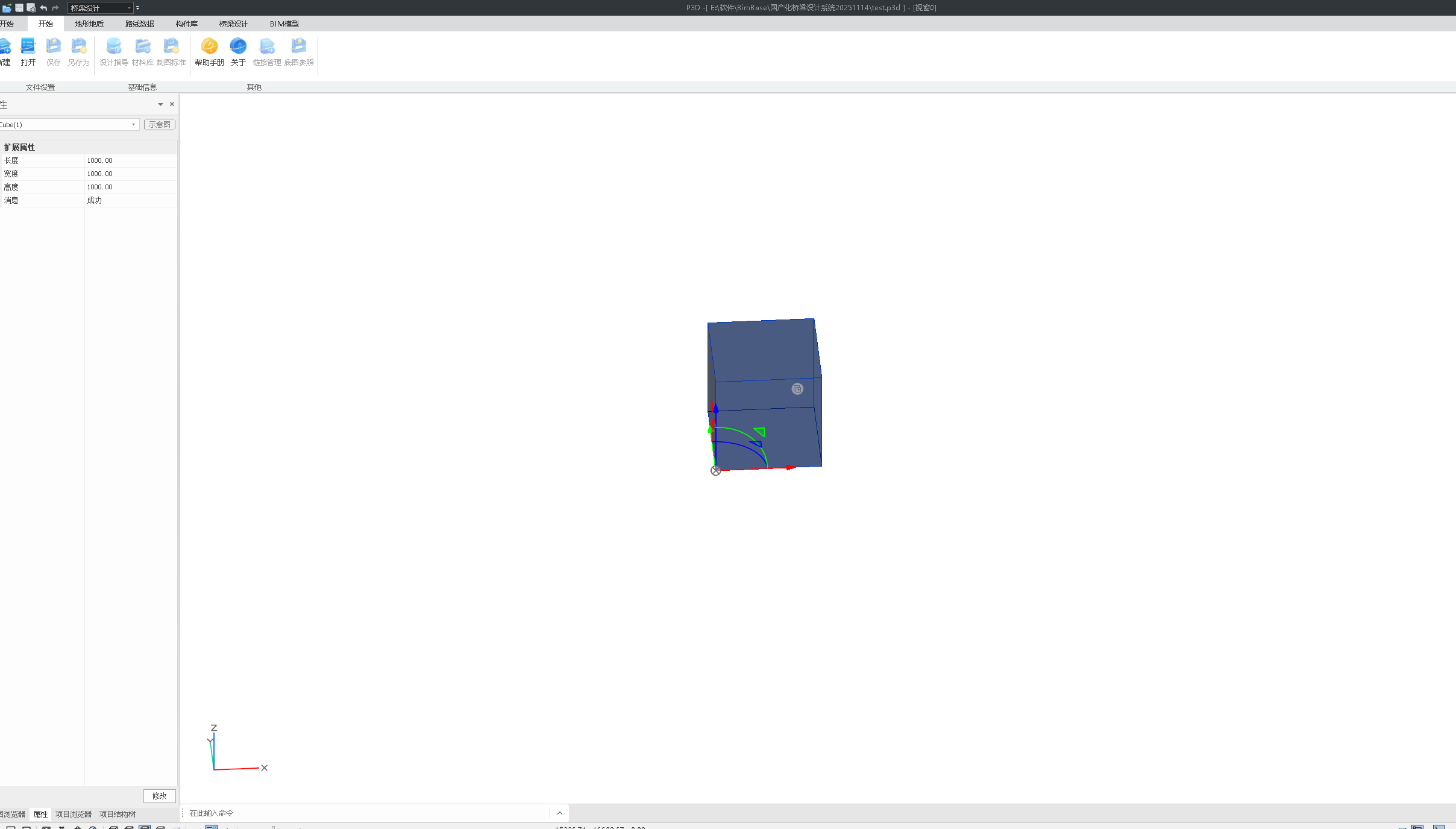

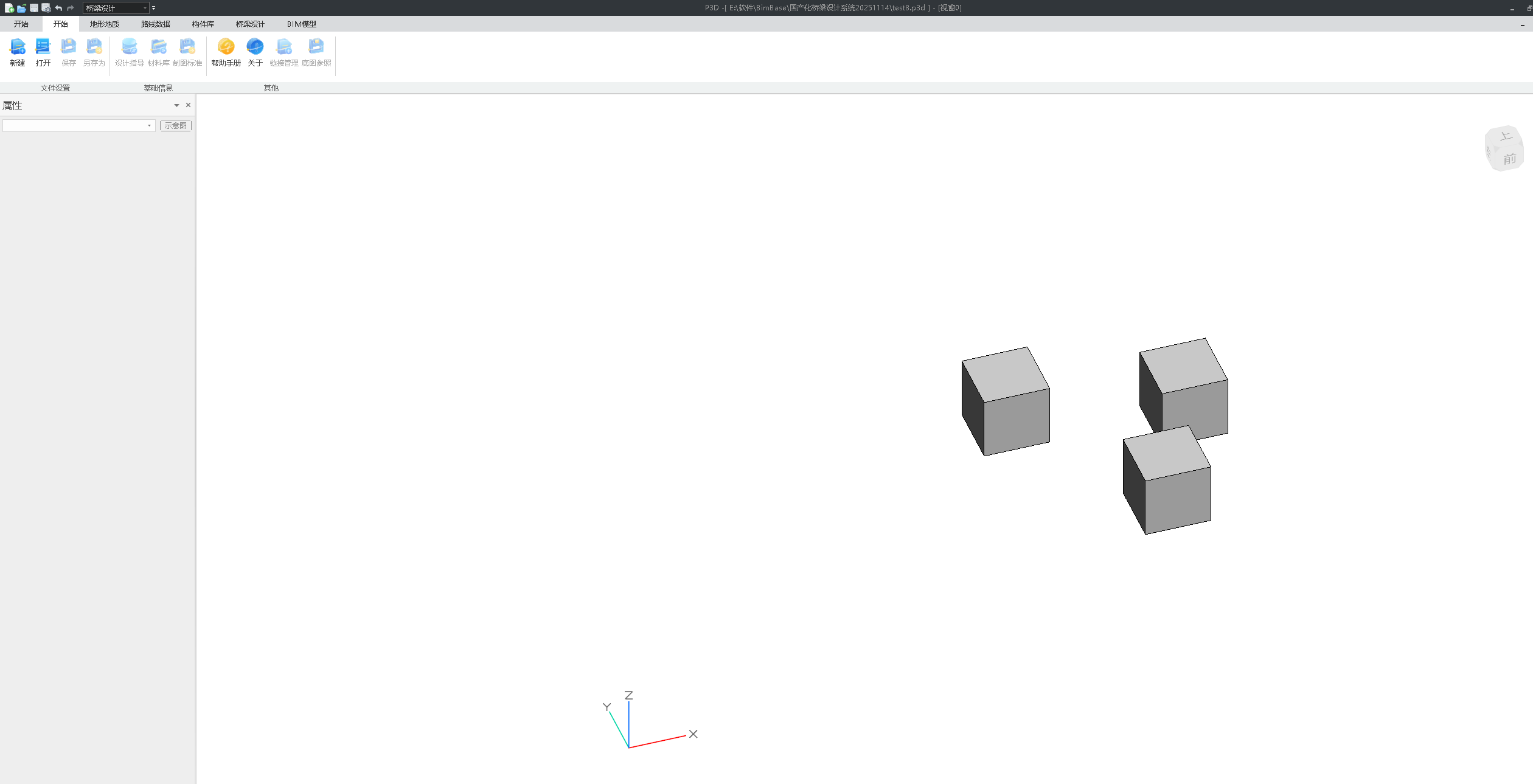

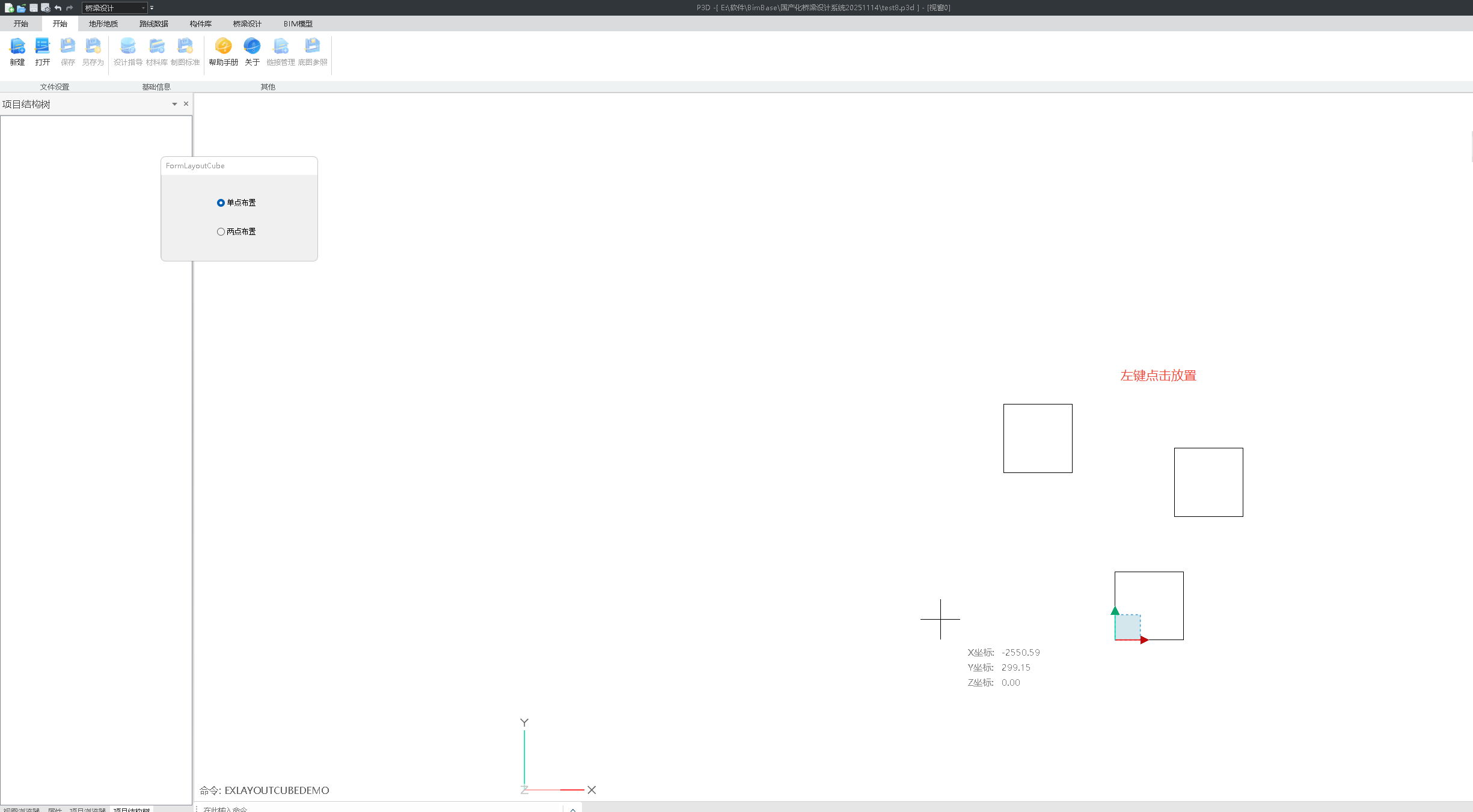

成功

问题

修改左侧参数无法驱动…没找到原因
