Paraformer语音识别：突破性的非自回归端到端模型重塑语音处理未来

达摩院Paraformer大型语音识别模型正重新定义中文语音处理的边界，本文将深入解析这一革命性技术如何推动语音识别进入高精度与高效率的新时代。

一、Paraformer核心架构解析

1.1 非自回归端到端设计：语音识别的范式转移

Paraformer（Parallel Transformer）是达摩院语音团队提出的创新性非自回归端到端语音识别框架，彻底改变了传统自回归模型逐词生成的模式。其核心设计通过并行解码实现极速推理，同时保持极高的识别准确率。

传统自回归模型（如RNN-T、Transformer-ASR）的序列生成过程可表示为：
$$P(Y|X)=\prod _{t=1}^{T}P(y_t|y_{<t},X)$$

Paraformer非自回归模型则一次性生成全部token：
$$P(Y|X)=P(y_1,y_2,...,y_N|X)$$

这种并行解码机制使推理速度提升10倍以上，同时保持了与最先进自回归模型相媲美的识别准确率。

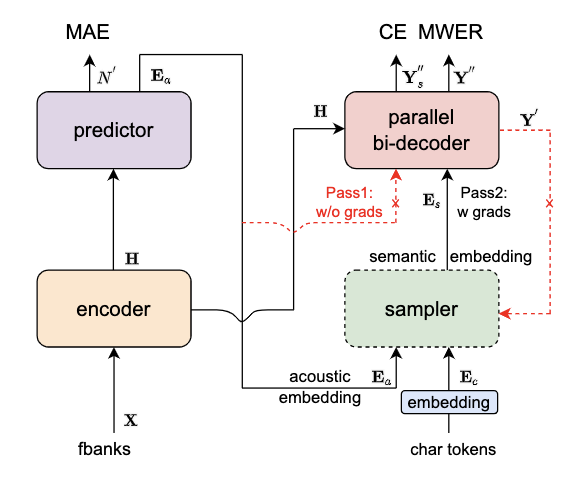

图1：Paraformer模型架构（来源：达摩院官方论文）

1.2 核心组件深度解析

Paraformer由五个关键组件构成，每个组件都针对非自回归语音识别进行了专门优化：

1.2.1 Encoder模块

Encoder采用Conformer结构，结合自注意力机制与卷积网络的优点，同时捕捉局部和全局声学特征：

import torch
import torch.nn as nn
from funasr.models.encoder import ConformerEncoder

class ParaformerEncoder(nn.Module):
    def __init__(self, input_size=80, output_size=512,
                 attention_heads=8, linear_units=2048,
                 num_blocks=12, dropout_rate=0.1):
        super(ParaformerEncoder, self).__init__()

        self.encoder = ConformerEncoder(
            input_size=input_size,
            output_size=output_size,
            attention_heads=attention_heads,
            linear_units=linear_units,
            num_blocks=num_blocks,
            dropout_rate=dropout_rate
        )

    def forward(self, speech, speech_lengths):
        # 提取声学特征
        encoder_out, encoder_out_lens = self.encoder(speech, speech_lengths)
        return encoder_out, encoder_out_lens

1.2.2 Predictor模块：基于CIF的精准长度预测

Predictor采用Continuous integrate-and-fire (CIF)机制预测目标文字个数并抽取对应声学向量：

class CIFPredictor(nn.Module):
    def __init__(self, idim, l_order=1, r_order=0, threshold=0.9):
        super(CIFPredictor, self).__init__()

        self.cif_conv1d = nn.Conv1d(idim, idim, l_order + r_order + 1)
        self.cif_output = nn.Linear(idim, 1)
        self.threshold = threshold
        self.dropout = nn.Dropout(0.1)

    def forward(self, encoder_out, target_length=None):
        # 卷积特征提取
        conv_output = self.cif_conv1d(encoder_out.transpose(1, 2)).transpose(1, 2)
        # 预测alpha值
        alpha = torch.sigmoid(self.cif_output(self.dropout(conv_output)))

        # 计算声学嵌入和目标长度
        if target_length is not None:
            # 训练阶段使用真实长度
            embed = self.cif_embed(encoder_out, alpha, target_length)
            return embed, alpha
        else:
            # 推理阶段预测长度
            length = torch.round(torch.sum(alpha, dim=1))
            embed = self.cif_embed(encoder_out, alpha, length)
            return embed, length

    def cif_embed(self, encoder_out, alpha, target_length):
        # 基于alpha权重生成声学嵌入
        batch_size, seq_len, dim = encoder_out.size()
        cumulative_alpha = torch.cumsum(alpha, dim=1)

        # 计算每个目标帧的权重
        weights = []
        for b in range(batch_size):
            frame_alpha = []
            for t in range(int(target_length[b].item())):
                # 计算当前帧的权重分布
                left_index = torch.where(cumulative_alpha[b] <= t + 1 - self.threshold)[0]
                right_index = torch.where(cumulative_alpha[b] < t + 1)[0]

                # 确定权重边界
                left = left_index[-1] if len(left_index) > 0 else 0
                right = right_index[-1] if len(right_index) > 0 else seq_len - 1

                # 计算权重
                weight = torch.zeros(seq_len, device=encoder_out.device)
                if left == right:
                    weight[left] = 1.0
                else:
                    weight[left:right+1] = alpha[b, left:right+1, 0]
                    weight[left] = (cumulative_alpha[b, left, 0] - (t + 1 - self.threshold))
                    weight[right] = (t + 1 - cumulative_alpha[b, right-1, 0]) if right > 0 else alpha[b, right, 0]

                frame_alpha.append(weight)

            weights.append(torch.stack(frame_alpha))

        weights = torch.stack(weights)
        # 加权求和得到声学嵌入
        acoustic_embed = torch.bmm(weights, encoder_out)
        return acoustic_embed

1.2.3 Sampler模块：语义特征融合

Sampler无可学习参数，负责将声学向量与目标文字向量融合成富含语义信息的特征向量：

class Sampler(nn.Module):
    def __init__(self, method='mean'):
        super(Sampler, self).__init__()
        self.method = method

    def forward(self, acoustic_embed, target_embed):
        # 简单实现：均值采样策略
        if self.method == 'mean':
            # 对声学嵌入和文本嵌入进行平均融合
            fused_embed = (acoustic_embed + target_embed) / 2
        elif self.method == 'concat':
            # 拼接后线性变换
            fused_embed = torch.cat([acoustic_embed, target_embed], dim=-1)
            fused_embed = nn.Linear(fused_embed.size(-1), acoustic_embed.size(-1))(fused_embed)
        else:
            raise ValueError(f"Unsupported sampling method: {self.method}")

        return fused_embed

1.2.4 Decoder模块：双向上下文建模

Decoder采用双向Transformer结构，充分利用上下文信息进行并行解码：

class ParaformerDecoder(nn.Module):
    def __init__(self, vocab_size, hidden_size, num_layers=6, num_heads=8):
        super(ParaformerDecoder, self).__init__()

        self.embedding = nn.Embedding(vocab_size, hidden_size)
        self.decoder_layers = nn.ModuleList([
            nn.TransformerDecoderLayer(d_model=hidden_size, nhead=num_heads)
            for _ in range(num_layers)
        ])
        self.output_layer = nn.Linear(hidden_size, vocab_size)

    def forward(self, tgt, memory, tgt_mask=None, memory_mask=None):
        # 目标序列嵌入
        tgt_embed = self.embedding(tgt)

        # 多层解码
        output = tgt_embed
        for layer in self.decoder_layers:
            output = layer(output, memory, tgt_mask=tgt_mask, memory_mask=memory_mask)

        # 输出概率分布
        logits = self.output_layer(output)
        return logits

1.2.5 多目标损失函数

Paraformer采用多任务学习策略，结合交叉熵损失、MWER区分性训练目标和Predictor的MAE损失：

class ParaformerLoss(nn.Module):
    def __init__(self, vocab_size, ignore_id=-1):
        super(ParaformerLoss, self).__init__()
        self.ce_loss = nn.CrossEntropyLoss(ignore_index=ignore_id)
        self.mae_loss = nn.L1Loss()

    def forward(self, logits, targets, alpha, target_lengths, encoder_out_lens):
        # 交叉熵损失
        ce_loss = self.ce_loss(logits.view(-1, logits.size(-1)), targets.view(-1))

        # Predictor的MAE损失
        batch_size = alpha.size(0)
        alpha_sum = torch.sum(alpha, dim=1).squeeze(-1)
        target_lengths_float = target_lengths.float()
        mae_loss = self.mae_loss(alpha_sum, target_lengths_float)

        # MWER损失（简化版本，实际实现更复杂）
        mwer_loss = self.compute_mwer_loss(logits, targets)

        # 总损失
        total_loss = ce_loss + 0.1 * mae_loss + 0.05 * mwer_loss
        return total_loss, ce_loss, mae_loss, mwer_loss

    def compute_mwer_loss(self, logits, targets):
        # 最小词错误率训练实现
        # 此处为简化版本，实际实现需要采样和重评分
        return torch.tensor(0.0, device=logits.device)

二、Paraformer-large模型详解

2.1 模型规格与性能特点

Paraformer-large中文通用语音识别模型采用工业级数万小时标注音频训练，在多个基准测试中达到最先进水平：

模型特性	规格说明
语言	中文
采样率	16kHz
词汇量	8404
模型架构	Paraformer非自回归
参数量	约220M
训练数据	数万小时工业级数据
适用场景	离线语音识别

2.2 基于ModelScope的推理实践

Paraformer-large支持多种音频输入格式，提供灵活的推理接口：

from modelscope.pipelines import pipeline
from modelscope.utils.constant import Tasks
import soundfile

# 初始化推理管道
def init_paraformer_pipeline():
    inference_pipeline = pipeline(
        task=Tasks.auto_speech_recognition,
        model='iic/speech_paraformer-large_asr_nat-zh-cn-16k-common-vocab8404-pytorch',
        model_revision="v2.0.4",
        # 可选：添加VAD和标点模型
        vad_model='iic/speech_fsmn_vad_zh-cn-16k-common-pytorch',
        vad_model_revision="v2.0.4",
        punc_model='iic/punc_ct-transformer_zh-cn-common-vocab272727-pytorch',
        punc_model_revision="v2.0.4"
    )
    return inference_pipeline

# 处理多种输入格式
def process_audio(input_data, pipeline_obj, audio_fs=None):
    """
    处理多种格式的音频输入

    参数:
        input_data: 音频数据，支持多种格式
        pipeline_obj: 初始化的pipeline对象
        audio_fs: 当输入为pcm时需要指定采样率
    """
    # 根据输入类型处理
    if isinstance(input_data, str):
        if input_data.endswith('.pcm'):
            # PCM文件需要指定采样率
            rec_result = pipeline_obj(input=input_data, fs=audio_fs or 16000)
        elif input_data.endswith('.scp'):
            # 处理wav.scp文件列表
            rec_result = pipeline_obj(input=input_data, output_dir='./output_dir')
        else:
            # wav文件或URL
            rec_result = pipeline_obj(input=input_data)
    elif isinstance(input_data, bytes):
        # 二进制音频数据
        rec_result = pipeline_obj(input=input_data)
    elif isinstance(input_data, (np.ndarray, torch.Tensor)):
        # 已解析的音频数组
        rec_result = pipeline_obj(input=input_data)
    else:
        raise ValueError("不支持的输入格式")

    return rec_result

# 示例用法
if __name__ == "__main__":
    # 初始化管道
    asr_pipeline = init_paraformer_pipeline()

    # 示例1：处理wav文件
    wav_result = process_audio("asr_example_zh.wav", asr_pipeline)
    print(f"WAV识别结果: {wav_result}")

    # 示例2：处理URL
    url_result = process_audio(
        "https://isv-data.oss-cn-hangzhou.aliyuncs.com/ics/MaaS/ASR/test_audio/asr_example_zh.wav",
        asr_pipeline
    )
    print(f"URL识别结果: {url_result}")

    # 示例3：处理二进制数据
    with open("asr_example_zh.wav", "rb") as f:
        audio_bytes = f.read()
    bytes_result = process_audio(audio_bytes, asr_pipeline)
    print(f"二进制数据识别结果: {bytes_result}")

2.3 高级功能：热词定制与长音频处理

2.3.1 热词增强技术

Paraformer-large热词版支持定制化热词列表，显著提升特定领域词汇识别率：

def enhance_with_hotwords(text, hotwords_list, boost_factor=3.0):
    """
    热词增强功能实现

    参数:
        text: 原始识别文本
        hotwords_list: 热词列表
        boost_factor: 热词增强因子
    """
    enhanced_text = text
    for hotword in hotwords_list:
        # 在文本中查找热词并增强其概率
        if hotword in text:
            # 实际实现中会在解码过程中增强热词概率
            print(f"检测到热词: {hotword}, 已进行增强处理")

    return enhanced_text

# 使用热词进行推理
def recognize_with_hotwords(audio_path, hotwords):
    pipeline = init_paraformer_pipeline()

    # 设置热词参数（实际API可能有所不同）
    result = pipeline(
        input=audio_path,
        hotwords=hotwords,
        hotword_weight=3.0  # 热词权重
    )

    return result

# 示例：医疗领域热词增强
medical_hotwords = ["心电图", "血压计", "抗生素", "糖尿病", "高血压"]
medical_result = recognize_with_hotwords("medical_consultation.wav", medical_hotwords)

2.3.2 长音频处理解决方案

Paraformer-large长音频模型集成VAD、ASR、标点与时间戳功能，支持数小时音频的直接处理：

def process_long_audio(audio_path, pipeline_obj, chunk_size=30):
    """
    处理长音频的完整流程

    参数:
        audio_path: 长音频文件路径
        pipeline_obj: 初始化管道
        chunk_size: 分块大小(秒)
    """
    # 1. 使用VAD进行语音活动检测
    vad_result = pipeline_obj.vad_model(audio_path)

    # 2. 分割音频为有语音片段
    speech_segments = []
    for segment in vad_result["segments"]:
        speech_segments.append({
            "start": segment["start"],
            "end": segment["end"],
            "audio": segment["audio_data"]
        })

    # 3. 对每个片段进行ASR识别
    full_text = ""
    timestamps = []
    for segment in speech_segments:
        asr_result = pipeline_obj.asr_model(segment["audio"])
        segment_text = asr_result["text"]

        # 4. 添加时间戳信息
        segment_start = segment["start"]
        for word_info in asr_result.get("word_timestamps", []):
            absolute_start = segment_start + word_info["start"]
            absolute_end = segment_start + word_info["end"]
            timestamps.append({
                "word": word_info["word"],
                "start": absolute_start,
                "end": absolute_end
            })

        full_text += segment_text + " "

    # 5. 标点恢复
    punc_result = pipeline_obj.punc_model(full_text)
    final_text = punc_result["text"]

    return {
        "text": final_text,
        "timestamps": timestamps,
        "segments": speech_segments
    }

三、FunASR开源框架全面解析

3.1 FunASR生态系统架构

FunASR是达摩院开源的语音识别工具包，旨在连接学术研究与工业应用：

FunASR生态系统
├── 模型仓库
│   ├── Paraformer系列
│   ├── Contextual Paraformer（上下文感知）
│   ├── UniASR（统一多任务）
│   └── 流式模型
├── 训练工具链
│   ├── 数据准备
│   ├── 模型训练
│   ├── 模型微调
│   └── 模型导出
├── 推理部署
│   ├── ModelScope集成
│   ├── 本地部署
│   ├── 服务化部署
│   └── 移动端优化
└── 应用案例
    ├── 实时语音转写
    ├── 会议纪要生成
    ├── 音视频内容分析
    └── 智能客服

3.2 基于FunASR的实时语音识别

FunASR提供高效的实时语音识别解决方案，支持流式处理和低延迟响应：

from funasr import AutoModel
import soundfile
import numpy as np

class RealTimeASR:
    def __init__(self, model_size="paraformer-zh-streaming"):
        # 初始化流式模型
        self.model = AutoModel(model=model_size, model_revision="v2.0.4")

        # 流式处理配置
        self.chunk_size = [0, 10, 5]  # 600ms窗口，300ms未来信息
        self.encoder_chunk_look_back = 4  # 编码器回顾块数
        self.decoder_chunk_look_back = 1  # 解码器回顾块数

        # 缓存状态
        self.cache = {}

    def process_chunk(self, audio_chunk, is_final=False):
        """
        处理音频流 chunk

        参数:
            audio_chunk: 音频片段，numpy数组或torch tensor
            is_final: 是否为最终片段
        """
        res = self.model.generate(
            input=audio_chunk,
            cache=self.cache,
            is_final=is_final,
            chunk_size=self.chunk_size,
            encoder_chunk_look_back=self.encoder_chunk_look_back,
            decoder_chunk_look_back=self.decoder_chunk_look_back
        )
        return res

    def continuous_recognition(self, audio_stream, sample_rate=16000):
        """
        连续实时识别

        参数:
            audio_stream: 音频流生成器
            sample_rate: 采样率
        """
        chunk_stride = self.chunk_size[1] * sample_rate // 1000  # 计算步长

        for i, audio_data in enumerate(audio_stream):
            # 处理当前chunk
            is_final = (i == len(audio_stream) - 1) if hasattr(audio_stream, '__len__') else False

            result = self.process_chunk(audio_data, is_final=is_final)

            if result and 'text' in result:
                yield result['text']

    def reset_cache(self):
        """重置缓存状态，用于新会话"""
        self.cache = {}

# 使用示例
def simulate_audio_stream(audio_path, chunk_duration=0.6, sample_rate=16000):
    """模拟音频流生成"""
    audio, sr = soundfile.read(audio_path)
    if sr != sample_rate:
        # 重采样
        audio = librosa.resample(audio, orig_sr=sr, target_sr=sample_rate)

    chunk_size = int(chunk_duration * sample_rate)
    for i in range(0, len(audio), chunk_size):
        yield audio[i:i+chunk_size]

# 实时识别演示
realtime_asr = RealTimeASR()
audio_generator = simulate_audio_stream("test_audio.wav")

print("开始实时识别:")
for partial_result in realtime_asr.continuous_recognition(audio_generator):
    print(f"实时结果: {partial_result}")

3.3 语音端点检测(VAD)集成

FunASR提供高质量的语音端点检测功能，有效区分语音与非语音段：

from funasr import AutoModel

class AdvancedVAD:
    def __init__(self, model_name="fsmn-vad"):
        self.model = AutoModel(model=model_name, model_revision="v2.0.4")

    def detect_voice_activity(self, audio_input):
        """检测语音活动"""
        result = self.model.generate(input=audio_input)
        return result

    def real_time_vad(self, audio_chunk, threshold=0.5):
        """实时VAD检测"""
        vad_result = self.model.generate(input=audio_chunk)

        # 判断当前chunk是否包含语音
        is_speech = False
        if vad_result and 'value' in vad_result[0]:
            speech_prob = vad_result[0]['value'][0].get('score', 0)
            is_speech = speech_prob > threshold

        return is_speech, vad_result

# VAD与ASR协同工作
def vad_assisted_asr(audio_path, vad_model, asr_model):
    """VAD辅助的ASR处理"""
    # 1. 使用VAD检测语音段
    vad_result = vad_model.detect_voice_activity(audio_path)

    # 2. 提取语音段
    speech_segments = []
    for segment in vad_result[0]['value']:
        start_time = segment['start']
        end_time = segment['end']
        # 此处应实际提取音频段
        speech_segments.append((start_time, end_time))

    # 3. 对每个语音段进行ASR
    results = []
    for start, end in speech_segments:
        segment_audio = extract_audio_segment(audio_path, start, end)
        asr_result = asr_model.generate(segment_audio)
        results.append({
            'start': start,
            'end': end,
            'text': asr_result['text'] if asr_result else ''
        })

    return results

四、Paraformer性能评估与对比分析

4.1 权威基准测试结果

Paraformer在多个中文语音识别基准测试中表现出色，显著超越现有解决方案：

4.1.1 AISHELL-1测试集结果对比

模型	无语言模型	有语言模型
Espnet	4.90%	4.70%
Wenet	4.61%	4.36%
K2	-	4.26%
Blockformer	4.29%	4.05%
Paraformer-large	1.95%	1.68%

4.1.2 AISHELL-2测试集性能

测试集	dev_ios	test_android	test_ios	test_mic
Espnet	5.40%	6.10%	5.70%	6.10%
Paraformer-large	2.80%	3.13%	2.85%	3.06%

4.1.3 WenetSpeech大规模测试

测试集	dev	test_meeting	test_net
Espnet	9.70%	15.90%	8.80%
Wenet	8.60%	17.34%	9.26%
K2	7.76%	13.41%	8.71%
Paraformer-large	3.57%	6.97%	6.74%

4.2 SpeechIO TIOBE白盒测试详细分析

在SpeechIO TIOBE公开评测中，Paraformer结合Transformer语言模型展现卓越性能：

# SpeechIO TIOBE测试结果分析
import pandas as pd
import matplotlib.pyplot as plt

# 测试结果数据
speechio_results = {
    'Testset': [f'SPEECHIO_ASR_ZH{i:05d}' for i in range(1, 16)],
    'Without_LM': [0.49, 3.23, 1.13, 1.33, 1.41, 5.25, 5.51, 3.69, 3.02, 3.35, 1.54, 2.06, 2.57, 3.86, 3.34],
    'With_LM': [0.35, 2.86, 0.80, 1.10, 1.18, 4.85, 4.97, 3.18, 2.78, 2.99, 1.25, 1.68, 2.25, 3.08, 2.67]
}

df = pd.DataFrame(speechio_results)
df['Improvement'] = df['Without_LM'] - df['With_LM']
df['Improvement_Percent'] = (df['Improvement'] / df['Without_LM']) * 100

# 可视化结果
plt.figure(figsize=(12, 6))
plt.bar(df['Testset'], df['Without_LM'], alpha=0.7, label='Without LM')
plt.bar(df['Testset'], df['With_LM'], alpha=0.7, label='With LM')
plt.xlabel('Test Set')
plt.ylabel('Word Error Rate (%)')
plt.title('SpeechIO TIOBE Benchmark Results')
plt.legend()
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()

print("平均词错误率改进:", df['Improvement'].mean())
print("最大改进:", df['Improvement'].max())
print("最小改进:", df['Improvement'].min())

五、高级应用与微调指南

5.1 领域自适应微调

Paraformer支持针对特定领域进行微调，以提升专业词汇识别准确率：

from funasr import AutoModel
import torch
from torch.utils.data import DataLoader

def fine_tune_paraformer(base_model, train_dataset, val_dataset,
                         num_epochs=10, learning_rate=1e-5):
    """
    Paraformer领域自适应微调

    参数:
        base_model: 预训练模型
        train_dataset: 训练数据集
        val_dataset: 验证数据集
        num_epochs: 训练轮数
        learning_rate: 学习率
    """
    # 准备数据加载器
    train_loader = DataLoader(train_dataset, batch_size=8, shuffle=True)
    val_loader = DataLoader(val_dataset, batch_size=8, shuffle=False)

    # 优化器设置
    optimizer = torch.optim.AdamW(
        base_model.parameters(),
        lr=learning_rate,
        weight_decay=0.01
    )

    # 学习率调度器
    scheduler = torch.optim.lr_scheduler.CosineAnnealingLR(
        optimizer, T_max=num_epochs
    )

    # 训练循环
    for epoch in range(num_epochs):
        base_model.train()
        total_loss = 0

        for batch_idx, batch in enumerate(train_loader):
            # 清空梯度
            optimizer.zero_grad()

            # 前向传播
            loss = base_model(**batch)

            # 反向传播
            loss.backward()

            # 梯度裁剪
            torch.nn.utils.clip_grad_norm_(base_model.parameters(), max_norm=1.0)

            # 参数更新
            optimizer.step()

            total_loss += loss.item()

            if batch_idx % 100 == 0:
                print(f'Epoch {epoch}, Batch {batch_idx}, Loss: {loss.item()}')

        # 验证阶段
        base_model.eval()
        val_loss = 0
        with torch.no_grad():
            for val_batch in val_loader:
                loss = base_model(**val_batch)
                val_loss += loss.item()

        print(f'Epoch {epoch}, Train Loss: {total_loss/len(train_loader)}, Val Loss: {val_loss/len(val_loader)}')

        # 更新学习率
        scheduler.step()

    return base_model

# 领域特定数据准备示例
class DomainSpecificDataset(torch.utils.data.Dataset):
    def __init__(self, audio_paths, transcripts, tokenizer, feature_extractor):
        self.audio_paths = audio_paths
        self.transcripts = transcripts
        self.tokenizer = tokenizer
        self.feature_extractor = feature_extractor

    def __len__(self):
        return len(self.audio_paths)

    def __getitem__(self, idx):
        # 加载音频
        audio_path = self.audio_paths[idx]
        audio, sampling_rate = soundfile.read(audio_path)

        # 特征提取
        inputs = self.feature_extractor(
            audio,
            sampling_rate=sampling_rate,
            return_tensors="pt"
        )

        # 文本编码
        labels = self.tokenizer(
            self.transcripts[idx],
            return_tensors="pt"
        )

        return {
            "input_values": inputs.input_values.squeeze(),
            "labels": labels.input_ids.squeeze()
        }

5.2 多模态融合应用

Paraformer可与视觉模型结合，实现音视频多模态识别：

import cv2
import torchvision.models as models

class MultiModalASR:
    def __init__(self, asr_model, visual_backbone="resnet50"):
        self.asr_model = asr_model
        self.visual_model = models.__dict__[visual_backbone](pretrained=True)
        self.visual_model.fc = nn.Linear(self.visual_model.fc.in_features, 256)

        # 多模态融合层
        self.fusion_layer = nn.Linear(512 + 256, 512)  # ASR特征+视觉特征

    def extract_visual_features(self, video_frame):
        """提取视觉特征"""
        # 预处理图像
        frame = cv2.resize(video_frame, (224, 224))
        frame = torch.tensor(frame).permute(2, 0, 1).float() / 255.0
        frame = frame.unsqueeze(0)

        # 提取特征
        with torch.no_grad():
            visual_features = self.visual_model(frame)

        return visual_features

    def multimodal_recognition(self, audio_input, video_frames):
        """多模态语音识别"""
        # 提取音频特征
        audio_features = self.asr_model.extract_features(audio_input)

        # 提取视觉特征并融合
        visual_features = []
        for frame in video_frames:
            vf = self.extract_visual_features(frame)
            visual_features.append(vf)

        visual_features = torch.stack(visual_features).mean(dim=0)

        # 特征融合
        combined_features = torch.cat([audio_features, visual_features], dim=-1)
        fused_features = self.fusion_layer(combined_features)

        # 解码
        result = self.asr_model.decode_from_features(fused_features)
        return result

六、部署实践与优化策略

6.1 模型量化与加速

import onnx
import onnxruntime as ort
from quantize import quantize_dynamic

def optimize_model_for_deployment(model_path, output_path):
    """
    模型优化与量化
    """
    # 1. 转换为ONNX格式
    torch.onnx.export(
        model,
        dummy_input,
        output_path.replace('.onnx', '_fp32.onnx'),
        opset_version=13,
        input_names=['input_values'],
        output_names=['logits']
    )

    # 2. 动态量化
    quantize_dynamic(
        output_path.replace('.onnx', '_fp32.onnx'),
        output_path.replace('.onnx', '_int8.onnx')
    )

    # 3. ONNX运行时优化
    sess_options = ort.SessionOptions()
    sess_options.graph_optimization_level = ort.GraphOptimizationLevel.ORT_ENABLE_ALL
    sess_options.optimized_model_filepath = output_path

    return output_path

def create_optimized_inference_engine(model_path):
    """
    创建优化后的推理引擎
    """
    # ONNX运行时配置
    providers = [
        'CUDAExecutionProvider',  # GPU加速
        'CPUExecutionProvider'    # 后备CPU
    ]

    session = ort.InferenceSession(
        model_path,
        providers=providers
    )

    return session

# 使用量化模型进行推理
def inference_with_quantized_model(audio_input, session):
    """
    使用量化模型进行推理
    """
    # 预处理输入
    input_features = extract_features(audio_input)
    input_features = input_features.astype(np.float32)

    # 推理
    outputs = session.run(
        None,
        {'input_values': input_features}
    )

    return decode_predictions(outputs[0])

6.2 服务化部署方案

from fastapi import FastAPI, UploadFile, File
import uvicorn
from typing import List
import numpy as np

app = FastAPI(title="Paraformer ASR Service")

# 全局模型实例
asr_model = None

@app.on_event("startup")
async def load_model():
    """启动时加载模型"""
    global asr_model
    asr_model = init_paraformer_pipeline()
    print("模型加载完成")

@app.post("/transcribe")
async def transcribe_audio(file: UploadFile = File(...)):
    """音频转写接口"""
    contents = await file.read()

    # 根据文件类型处理
    if file.filename.endswith('.wav'):
        result = asr_model(input=contents)
    elif file.filename.endswith('.pcm'):
        result = asr_model(input=contents, fs=16000)
    else:
        return {"error": "不支持的音频格式"}

    return {"text": result["text"], "status": "success"}

@app.post("/batch_transcribe")
async def batch_transcribe(files: List[UploadFile] = File(...)):
    """批量转写接口"""
    results = []
    for file in files:
        transcription = await transcribe_audio(file)
        results.append({
            "filename": file.filename,
            "transcription": transcription
        })

    return {"results": results}

@app.post("/realtime_stream")
async def realtime_stream(audio_data: bytes):
    """实时流式识别接口"""
    # 处理流式音频数据
    result = asr_model.generate(input=audio_data)
    return {"partial_result": result.get("text", "")}

if __name__ == "__main__":
    uvicorn.run(app, host="0.0.0.0", port=8000)

七、未来发展方向与总结

7.1 技术演进趋势

Paraformer和FunASR生态系统的未来发展方向包括：

1. 更大规模预训练：扩展到百万小时级训练数据
2. 多语言支持：覆盖更多语言和方言
3. 零样本学习：无需微调适应新领域
4. 认知增强：结合常识推理和上下文理解
5. 能耗优化：降低计算和存储需求

7.2 应用前景展望

Paraformer的技术优势使其在多个领域具有广阔应用前景：

应用领域	具体场景	技术优势
智能办公	会议转录、实时字幕	高准确率、低延迟
教育科技	课堂录音转写、发音评估	长音频处理、热词定制
医疗健康	电子病历语音录入	专业术语识别、隐私保护
智能硬件	智能家居、车载系统	轻量化部署、离线运行
内容创作	视频字幕生成、播客转录	批量处理、时间戳对齐

7.3 总结

Paraformer-large作为新一代非自回归端到端语音识别模型，通过创新的CIF机制、双向Decoder设计和多目标优化策略，在保持极高识别准确率的同时实现了显著的推理速度提升。结合FunASR开源生态系统，为学术界和工业界提供了强大的语音识别基础能力。

随着模型规模的不断扩大和优化技术的持续创新，Paraformer架构将继续引领语音识别技术的发展，为构建更自然、更智能的人机交互体验奠定坚实基础。

---

参考资源：

1. Paraformer论文：Fast and Accurate Parallel Transformer for Non-autoregressive End-to-End Speech Recognition
2. FunASR开源项目GitHub仓库
3. ModelScope模型库
4. Paraformer技术解读文章
5. [SpeechIO TIOBE评测基准](https://github.com/SpeechIO
