Byte Buddy 应用demo

skywalking agent 主要是在类加载之前通过Byte Buddy api 对类字节码文件进行修改（增强），从而完成对各种组件的链路跟踪。

---

---

前言

---

Byte Buddy 官方地址 [https://bytebuddy.net/#/tutorial]
(https://bytebuddy.net/#/tutorial)
中文翻译地址https://notes.diguage.com/byte-buddy-tutorial/

一、Byte Buddy在skywalking中的应用

1.agent（本文基于skywalking 8.7）

启动类：SkyWalkingAgent#premain

public static void premain(String agentArgs, Instrumentation instrumentation) throws PluginException {
        final PluginFinder pluginFinder;
        try {
            SnifferConfigInitializer.initializeCoreConfig(agentArgs);
        } catch (Exception e) {
            // try to resolve a new logger, and use the new logger to write the error log here
            LogManager.getLogger(SkyWalkingAgent.class)
                    .error(e, "SkyWalking agent initialized failure. Shutting down.");
            return;
        } finally {
            // refresh logger again after initialization finishes
            LOGGER = LogManager.getLogger(SkyWalkingAgent.class);
        }

        try {
            pluginFinder = new PluginFinder(new PluginBootstrap().loadPlugins());
        } catch (AgentPackageNotFoundException ape) {
            LOGGER.error(ape, "Locate agent.jar failure. Shutting down.");
            return;
        } catch (Exception e) {
            LOGGER.error(e, "SkyWalking agent initialized failure. Shutting down.");
            return;
        }
        //实例化ByteBuddy
        final ByteBuddy byteBuddy = new ByteBuddy().with(TypeValidation.of(Config.Agent.IS_OPEN_DEBUGGING_CLASS));
        //创建agentBulid
        AgentBuilder agentBuilder = new AgentBuilder.Default(byteBuddy).ignore(
                nameStartsWith("net.bytebuddy.")
                        .or(nameStartsWith("org.slf4j."))
                        .or(nameStartsWith("org.groovy."))
                        .or(nameContains("javassist"))
                        .or(nameContains(".asm."))
                        .or(nameContains(".reflectasm."))
                        .or(nameStartsWith("sun.reflect"))
                        .or(allSkyWalkingAgentExcludeToolkit())
                        .or(ElementMatchers.isSynthetic()));

        JDK9ModuleExporter.EdgeClasses edgeClasses = new JDK9ModuleExporter.EdgeClasses();
        try {
            agentBuilder = BootstrapInstrumentBoost.inject(pluginFinder, instrumentation, agentBuilder, edgeClasses);
        } catch (Exception e) {
            LOGGER.error(e, "SkyWalking agent inject bootstrap instrumentation failure. Shutting down.");
            return;
        }

        try {
            agentBuilder = JDK9ModuleExporter.openReadEdge(instrumentation, agentBuilder, edgeClasses);
        } catch (Exception e) {
            LOGGER.error(e, "SkyWalking agent open read edge in JDK 9+ failure. Shutting down.");
            return;
        }

        if (Config.Agent.IS_CACHE_ENHANCED_CLASS) {
            try {
                agentBuilder = agentBuilder.with(new CacheableTransformerDecorator(Config.Agent.CLASS_CACHE_MODE));
                LOGGER.info("SkyWalking agent class cache [{}] activated.", Config.Agent.CLASS_CACHE_MODE);
            } catch (Exception e) {
                LOGGER.error(e, "SkyWalking agent can't active class cache.");
            }
        }

        agentBuilder.type(pluginFinder.buildMatch())//指定需要拦截的类
                     //分析（1）
                    .transform(new Transformer(pluginFinder))//各种插桩实现、字节码增强流程、改字节码
                    .with(AgentBuilder.RedefinitionStrategy.RETRANSFORMATION)//是否保留修改前内容
                    .with(new RedefinitionListener())
                    .with(new Listener())
                    .installOn(instrumentation);

        try {
            ServiceManager.INSTANCE.boot();
        } catch (Exception e) {
            LOGGER.error(e, "Skywalking agent boot failure.");
        }

        Runtime.getRuntime()
                .addShutdownHook(new Thread(ServiceManager.INSTANCE::shutdown, "skywalking service shutdown thread"));
    }

分析（1）
transform 主要讲述字节码插桩的流程，点击transform可以看到增强的具体实现
如下：

 public DynamicType.Builder<?> transform(final DynamicType.Builder<?> builder, //当前拦截到类的字节码
                                                final TypeDescription typeDescription, //类的描述信息
                                                final ClassLoader classLoader, 加载当前拦截到类的类加载器
                                                final JavaModule module) {
            LoadedLibraryCollector.registerURLClassLoader(classLoader);
            List<AbstractClassEnhancePluginDefine> pluginDefines = pluginFinder.find(typeDescription);
            if (pluginDefines.size() > 0) {
                DynamicType.Builder<?> newBuilder = builder;
                EnhanceContext context = new EnhanceContext();
                for (AbstractClassEnhancePluginDefine define : pluginDefines) {
                    //分析（1）define为字节码插桩的核心实现
                    DynamicType.Builder<?> possibleNewBuilder = define.define(
                            typeDescription, newBuilder, classLoader, context);
                    if (possibleNewBuilder != null) {
                        newBuilder = possibleNewBuilder;
                    }
                }
                if (context.isEnhanced()) {
                    LOGGER.debug("Finish the prepare stage for {}.", typeDescription.getName());
                }

                return newBuilder;
            }

            LOGGER.debug("Matched class {}, but ignore by finding mechanism.", typeDescription.getTypeName());
            return builder;
        }

分析（1）
#define 方法具体的插桩实现，进入define类中，我们只看他的enhance方法

        /**
         * find origin class source code for interceptor
         */
        DynamicType.Builder<?> newClassBuilder = this.enhance(typeDescription, builder, classLoader, context);

        context.initializationStageCompleted();
        LOGGER.debug("enhance class {} by {} completely.", transformClassName, interceptorDefineClassName);

        return newClassBuilder;

 protected DynamicType.Builder<?> enhance(TypeDescription typeDescription, DynamicType.Builder<?> newClassBuilder,
                                             ClassLoader classLoader, EnhanceContext context) throws PluginException {
        newClassBuilder = this.enhanceClass(typeDescription, newClassBuilder, classLoader);

        newClassBuilder = this.enhanceInstance(typeDescription, newClassBuilder, classLoader, context);

        return newClassBuilder;
    }

enhance 方法里面包含了两种增强类型，一种是增强，另一种是增强实例方法，我们只看增强类enhanceClass。点击enhanceClass

 /**
     * Enhance a class to intercept class static methods.
     *
     * @param typeDescription target class description
     * @param newClassBuilder byte-buddy's builder to manipulate class bytecode.
     * @return new byte-buddy's builder for further manipulation.
     */
    protected DynamicType.Builder<?> enhanceClass(TypeDescription typeDescription, DynamicType.Builder<?> newClassBuilder,
        ClassLoader classLoader) throws PluginException {
        //（1）获取所有插件的静态方法拦截点
        StaticMethodsInterceptPoint[] staticMethodsInterceptPoints = getStaticMethodsInterceptPoints();
        String enhanceOriginClassName = typeDescription.getTypeName();
        if (staticMethodsInterceptPoints == null || staticMethodsInterceptPoints.length == 0) {
            return newClassBuilder;
        }
         //循环所有拦截点选择不同环绕增强方式。
        for (StaticMethodsInterceptPoint staticMethodsInterceptPoint : staticMethodsInterceptPoints) {
            String interceptor = staticMethodsInterceptPoint.getMethodsInterceptor();
            if (StringUtil.isEmpty(interceptor)) {
                throw new EnhanceException("no StaticMethodsAroundInterceptor define to enhance class " + enhanceOriginClassName);
            }
             //带参数的增强方式
            if (staticMethodsInterceptPoint.isOverrideArgs()) {
                if (isBootstrapInstrumentation()) {
                    newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                                                     .intercept(MethodDelegation.withDefaultConfiguration()
                                                                                .withBinders(Morph.Binder.install(OverrideCallable.class))
                                                                                .to(BootstrapInstrumentBoost.forInternalDelegateClass(interceptor)));
                } else {
                    newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                                                     .intercept(MethodDelegation.withDefaultConfiguration()
                                                                                .withBinders(Morph.Binder.install(OverrideCallable.class))
                                                                                .to(new StaticMethodsInterWithOverrideArgs(interceptor)));
                }
            } else {
            //不带参数的增强方式数据JDK类库的
                if (isBootstrapInstrumentation()) {
                    newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                                                     .intercept(MethodDelegation.withDefaultConfiguration()
                                                                                .to(BootstrapInstrumentBoost.forInternalDelegateClass(interceptor)));
                  //不属于JDK类库的类增强方式
                } else {
                //（2）静态方法插桩
                    newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                                                     .intercept(MethodDelegation.withDefaultConfiguration()
                                                                                .to(new StaticMethodsInter(interceptor)));
                }
            }

        }

        return newClassBuilder;
    }

分析

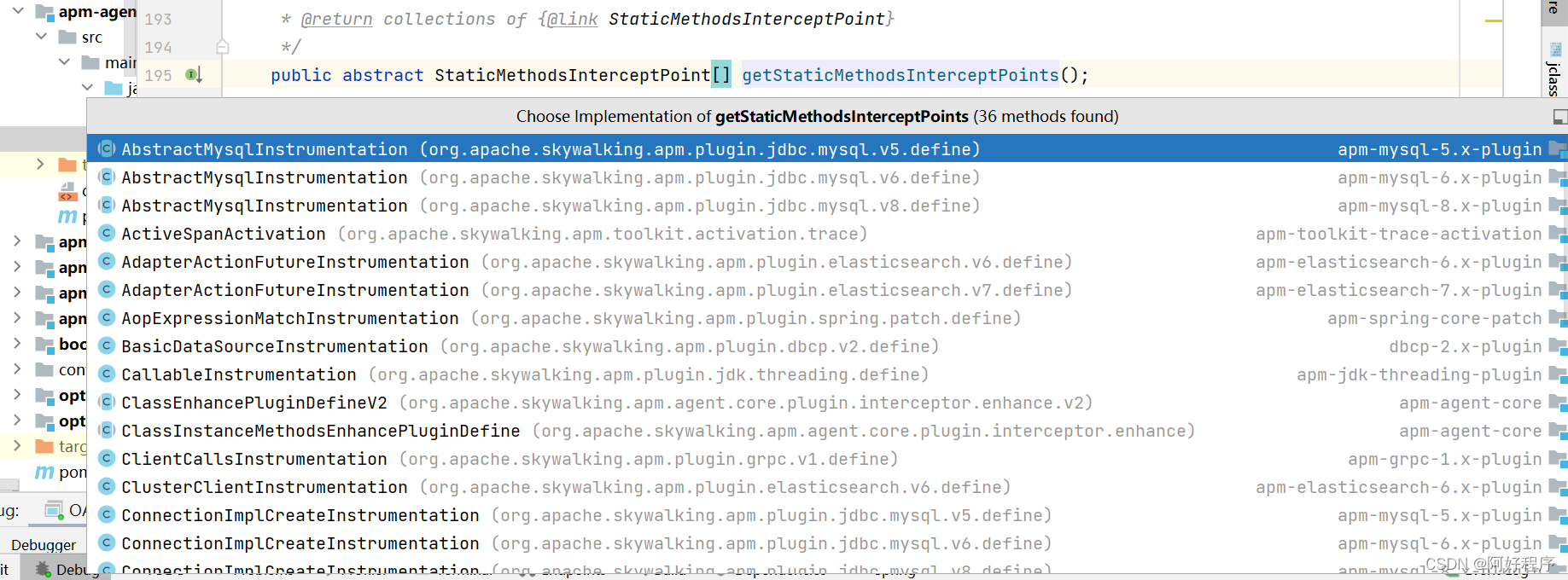

（1）点击#getStaticMethodsInterceptPoints可以看到具体的插件拦截定义类

任意点击进去都可以看到具体的拦截类和需要拦截方法。
（2）点击#StaticMethodsInter可以看到具体的拦截实现方法，这里也是环绕增强的步骤所在。可以看出对类的方法前和方法后的操作。

@RuntimeType
    public Object intercept(@Origin Class<?> clazz, @AllArguments Object[] allArguments, @Origin Method method,
        @SuperCall Callable<?> zuper) throws Throwable {
        StaticMethodsAroundInterceptor interceptor = InterceptorInstanceLoader.load(staticMethodsAroundInterceptorClassName, clazz
            .getClassLoader());

        MethodInterceptResult result = new MethodInterceptResult();
        try {
            interceptor.beforeMethod(clazz, method, allArguments, method.getParameterTypes(), result);
        } catch (Throwable t) {
            LOGGER.error(t, "class[{}] before static method[{}] intercept failure", clazz, method.getName());
        }

        Object ret = null;
        try {
            if (!result.isContinue()) {
                ret = result._ret();
            } else {
                ret = zuper.call();
            }
        } catch (Throwable t) {
            try {
                interceptor.handleMethodException(clazz, method, allArguments, method.getParameterTypes(), t);
            } catch (Throwable t2) {
                LOGGER.error(t2, "class[{}] handle static method[{}] exception failure", clazz, method.getName(), t2.getMessage());
            }
            throw t;
        } finally {
            try {
                ret = interceptor.afterMethod(clazz, method, allArguments, method.getParameterTypes(), ret);
            } catch (Throwable t) {
                LOGGER.error(t, "class[{}] after static method[{}] intercept failure:{}", clazz, method.getName(), t.getMessage());
            }
        }
        return ret;
    }

以上就是Byte Buddy在skywalking agent中的部分应用，另外还有其他几种增强方式这里就不做具体介绍。

二、Byte Buddy例子

1.agent端

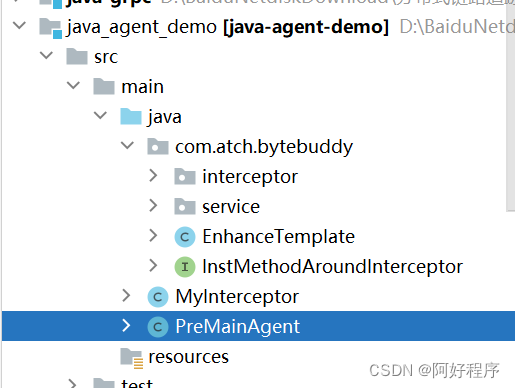

首先新建任意maven 工程

 <dependency>
            <groupId>net.bytebuddy</groupId>
            <artifactId>byte-buddy</artifactId>
            <version>1.9.2</version>
        </dependency>
        <dependency>
            <groupId>net.bytebuddy</groupId>
            <artifactId>byte-buddy-agent</artifactId>
            <version>1.9.2</version>
        </dependency>

代码如下
新建代理接口：

public interface InstMethodAroundInterceptor {
    /**
     * 拦截点前
     * @param inst: 被增强类实例
     * @param interceptPoint：被增强方法
     * @param allArguments：被增强方法入参
     * @param argumentsTypes：被增强方法入参类型
     * @param result：result 包装类
     */
    void beforeMethod(Object inst, Method interceptPoint,
                      Object[] allArguments, Class<?>[] argumentsTypes,
                      EnhanceTemplate.ResultWrapper result);

    Object afterMethod(Object inst, Method interceptPoint,
                       Object[] allArguments, Class<?>[] argumentsTypes,
                       Object ret);

    void handleMethodException(Object inst, Method method, Object[] allArguments,
                               Class<?>[] argumentsTypes, Throwable t);
}

然后建立具体实现类

public class ServiceInterceptor implements InstMethodAroundInterceptor {
    @Override
    public void beforeMethod(Object inst, Method interceptPoint, Object[] allArguments,
                             Class<?>[] argumentsTypes, EnhanceTemplate.ResultWrapper result) {
        System.out.println("Service Interceptor before ..." + System.currentTimeMillis());
    }

    @Override
    public Object afterMethod(Object inst, Method interceptPoint, Object[] allArguments,
                              Class<?>[] argumentsTypes, Object ret) {
        System.out.println("Service Interceptor after ..." + System.currentTimeMillis());
        return ret;
    }

    @Override
    public void handleMethodException(Object inst, Method method, Object[] allArguments,
                                      Class<?>[] argumentsTypes, Throwable t) {
        System.out.println("Service Interceptor error handle ...");
    }
}

之后建立环绕增强类

public class EnhanceTemplate {
    private InstMethodAroundInterceptor interceptor;

    public EnhanceTemplate(InstMethodAroundInterceptor interceptor) {
        this.interceptor = interceptor;
    }

    /**
     * 拦截增强主方法
     *
     * @param inst: 被拦截对象本身
     * @param allArguments：被代理方法原参数
     * @param zuper：被代理方法的包装对象，zuper.call()调用原方法
     * @param method：原方法对象
     * @return
     */
    @RuntimeType
    public Object interceptor(@This Object inst, @AllArguments Object[] allArguments,
                              @SuperCall Callable<?> zuper, @Origin Method method) {
        ResultWrapper rw = new ResultWrapper();
        if (this.interceptor != null) {
            try {
                // 调用前拦截处理
                this.interceptor.beforeMethod(inst, method,
                        allArguments, method.getParameterTypes(), rw);
                rw.setContinue(true);
            } catch (Throwable t) {
                t.printStackTrace();
            }
        }

        if (!rw.isContinue()) {
            return rw.getResult();
        }
        Object result = null;
        try {
            // 被代理方法调用
            result = zuper.call();

        } catch (Exception e) {
            if (this.interceptor != null) {
                try {
                    // 调用异常拦截处理
                    this.interceptor.handleMethodException(inst, method,
                            allArguments, method.getParameterTypes(), e);
                } catch (Throwable t) {
                    t.printStackTrace();
                }
            }
        }finally {
            if (this.interceptor != null) {
                try {
                    // 调用后拦截处理
                    result = this.interceptor.afterMethod(inst, method,
                            allArguments, method.getParameterTypes(), result);
                } catch (Throwable t) {
                    t.printStackTrace();
                }
            }
        }

        return result;
    }

    @Data
    public class ResultWrapper {
        private boolean isContinue;
        private Object result;
    }
}

最后建立主方法：

public static void premain(String agentArgs, Instrumentation inst) {
        //创建一个转换器，转换器可以修改类的实现
        //ByteBuddy对java agent提供了转换器的实现，直接使用即可
        AgentBuilder.Transformer transformer = new AgentBuilder.Transformer() {
            public DynamicType.Builder<?> transform(DynamicType.Builder<?> builder, TypeDescription typeDescription, ClassLoader classLoader, JavaModule javaModule) {
                return builder
                        .method(ElementMatchers.named("demo"))
                        // 拦截任意方法
//                        .method(ElementMatchers.<MethodDescription>any())
                        // 拦截到的方法委托给TimeInterceptor
                        .intercept(MethodDelegation.withDefaultConfiguration().to(new EnhanceTemplate(new ServiceInterceptor())));
//                        .intercept(MethodDelegation.to(MyInterceptor.class));
            }
        };
        new AgentBuilder // Byte Buddy专门有个AgentBuilder来处理Java Agent的场景
                .Default()
                // 根据包名前缀拦截类
                .type(ElementMatchers.nameStartsWith("com.agent.TestService"))
                // 拦截到的类由transformer处理
                .transform(transformer)
                .installOn(inst);
    }

1.服务端

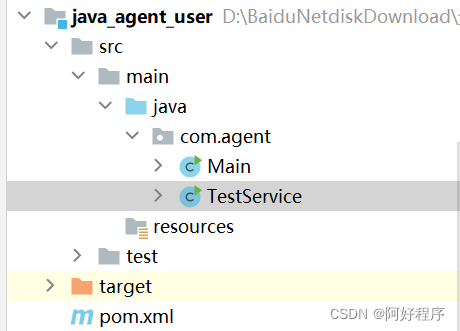

建立需要拦截的类这里对应agent 程序中premain里的拦截点。

public class TestService {
    public String demo(String name, int value) throws InterruptedException {
        return "demo service";
    }

    public static void main(String[] args) throws InterruptedException {
        TestService service =new TestService();
        while (true){
            System.out.println(service.demo("1231",222));
            Thread.sleep(10000);
        }
    }
}

将程序进行agent 打包编译后放到linux服务器中

nohup java -javaagent:/home/app/agentdemo/java-agent-demo-1.0-SNAPSHOT.jar -jar java_agent_user-1.0-SNAPSHOT.jar &
以java agent方式进行启动可以看到增强结果

总结

skywalking agent字节码增强的技术主要就是通过Byte Buddy进行插桩，修改拦截代码实现自身增强逻辑。

后续将分享TraceSegment发送流程
