skywalking agent中Log的收集和发送流程
个人录制的源码阅读课程，如果需要点开看看吧。
·
个人录制的skywalking 源码阅读课程，如果需要点开看看吧
skywalking agent+oap端源码阅读 + 二开实践 原创视频
1、什么叫日志事件
日志事件是对一条日志数据（包括日志线程、日志级别、日志内容等等）的封装，必须实现ILoggingEvent接口，在不同的日志appender中传递都是基于日志事件。
2、agent中项目中使用日志上报功能
可以参考官方文档：
https://skywalking.apache.org/docs/skywalking-java/v9.0.0/en/setup/service-agent/java-agent/application-toolkit-logback-1.x/
-
第一步：引入依赖
<dependency> <groupId>org.apache.skywalking</groupId> <artifactId>apm-toolkit-logback-1.x</artifactId> <version>9.0.0</version> </dependency>
-
第二步：在resources下新增
logback.xml文件，内容如下<?xml version="1.0" encoding="UTF-8"?> <configuration scan="true" scanPeriod="10 seconds"> <property name="devel" value="[%-5level] %d{yyyy-MM-dd HH:mm:ss.SSS} %c %M %L %thread ------------------ %m%n"></property> <appender name="stdout" class="ch.qos.logback.core.ConsoleAppender"> <!-- 控制台输出流对象 默认 System.out 改为 System.err --> <target>System.err</target> <!-- 这儿是修改打印的字体颜色为红色 --> <!-- 日志消息格式配置 --> <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder"> <pattern>${devel}</pattern> <!-- ${上面定义的proerty的name的值} --> </encoder> </appender> <!-- 这儿就是配置的，把日志输出到skywalking-oap --> <appender name="sw-grpc-log" class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.log.GRPCLogClientAppender"> <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder"> <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.mdc.TraceIdMDCPatternLogbackLayout"> <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%X{tid}] [%thread] %-5level %logger{36} -%msg%n</Pattern> </layout> </encoder> </appender> <root level="INFO"> <!-- 在该级别下，要进行的操作！ --> <appender-ref ref="stdout"></appender-ref> <appender-ref ref="sw-grpc-log"></appender-ref> <!-- <appender-ref ref="上面配置好的日志输出到控制台的appender的name的名称"></appender-ref> --> </root> </configuration> -
第三步：到自己的项目中打印一段独特的日志
@Transactional @GetMapping("/index") public void index(){ System.out.println("xxxxxxxxxxxxxxxxxx"); log.info("kkkkk"); //一会观察 日志中是否有 kkkk 的记录 GoodsEntity goodsEntity = new GoodsEntity(); goodsEntity.setGoodsName("goods"); goodsService.save(goodsEntity); } -

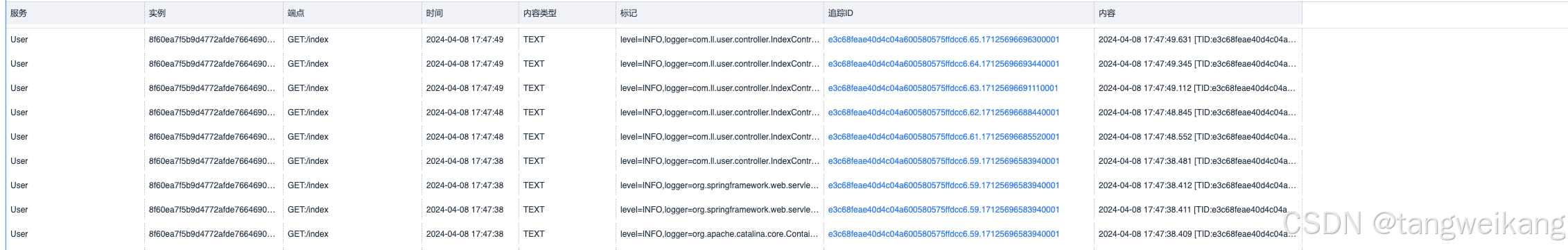

第四步：到skywalking的web UI中查看日志
日志中已经关联好了traceId了。
3、日志上报源码分析
先找到日志上报的协议文件Logging.proto。然后根据LogReportServiceGrpc使用的地方找到LogReportServiceClient类，根据LogReportServiceClient类能找到GRPCLogAppenderInterceptor类（这个类在很多地方有，需要找对地方），然后再根据GRPCLogAppenderInterceptor类，就可以找到GRPCLogAppenderActivation类！
GRPCLogAppenderActivation类，类明确了对GRPCLogClientAppender#subAppend感兴趣的拦截器GRPCLogAppenderInterceptor。其中subAppend方法是 Appender 接口中的一个方法,主要负责将日志事件传递给特定的 Appender 实现类,并执行相应的输出逻辑。不同类型的 Appender 会对 subAppend 方法进行重写,以实现不同的输出行为,如将日志输出到控制台、文件等。
public class GRPCLogAppenderInterceptor implements InstanceMethodsAroundInterceptor {
private LogReportServiceClient client;
@SuppressWarnings("unchecked")
@Override
public void beforeMethod(EnhancedInstance objInst, Method method, Object[] allArguments, Class<?>[] argumentsTypes, MethodInterceptResult result) throws Throwable {
//从ServiceManager中获取到初始化好的Log报告器，具体的Log上报器，见下面的，分析1
if (Objects.isNull(client)) {
client = ServiceManager.INSTANCE.findService(LogReportServiceClient.class);
if (Objects.isNull(client)) {
return;
}
}
ILoggingEvent event = (ILoggingEvent) allArguments[0];
//把日志数据扔到LogReportServiceClient维护的DataCarrier中
if (Objects.nonNull(event)) {
//为什么这儿用`(OutputStreamAppender<ILoggingEvent>)`强转objInst，因为objInst是被拦截的`GRPCLogClientAppender`，它继承了`OutputStreamAppender<E>`
//调用transform，是把OutputStreamAppender<ILoggingEvent>中的日志数据读出来，并组成GRPC要发送的数据即`Logging.proto`中的LogData数据！
//client.produce 是把整理好的数据放到LogReportServiceClient维护的DataCarrier中
client.produce(transform((OutputStreamAppender<ILoggingEvent>) objInst, event));
}
}
@Override
public Object afterMethod(EnhancedInstance objInst, Method method, Object[] allArguments, Class<?>[] argumentsTypes,
Object ret) throws Throwable {
return ret;
}
@Override
public void handleMethodException(EnhancedInstance objInst, Method method, Object[] allArguments,
Class<?>[] argumentsTypes, Throwable t) {
}
/**
* transforms {@link ILoggingEvent} to {@link LogData}
*
* @param appender the real {@link OutputStreamAppender appender}
* @param event {@link ILoggingEvent}
* @return {@link LogData} with filtered trace context in order to reduce the cost on the network
*/
private LogData.Builder transform(final OutputStreamAppender<ILoggingEvent> appender, ILoggingEvent event) {
//构建LogData中LogTags参数，LogTags的结构是键值对的形式，类似于map
LogTags.Builder logTags = LogTags.newBuilder()
.addData(KeyStringValuePair.newBuilder()
.setKey("level").setValue(event.getLevel().toString()).build())
.addData(KeyStringValuePair.newBuilder()
.setKey("logger").setValue(event.getLoggerName()).build())
.addData(KeyStringValuePair.newBuilder()
.setKey("thread").setValue(event.getThreadName()).build());
//补充一些数据到logTags中
if (!ToolkitConfig.Plugin.Toolkit.Log.TRANSMIT_FORMATTED) {
if (event.getArgumentArray() != null) {
for (int i = 0; i < event.getArgumentArray().length; i++) {
String value = Optional.ofNullable(event.getArgumentArray()[i]).orElse("null").toString();
logTags.addData(KeyStringValuePair.newBuilder()
.setKey("argument." + i).setValue(value).build());
}
}
final IThrowableProxy throwableProxy = event.getThrowableProxy();
if (throwableProxy instanceof ThrowableProxy) {
Throwable throwable = ((ThrowableProxy) throwableProxy).getThrowable();
logTags.addData(KeyStringValuePair.newBuilder()
.setKey("exception").setValue(ThrowableTransformer.INSTANCE.convert2String(throwable, 2048)).build());
}
}
//开始构建LogData数据
LogData.Builder builder = LogData.newBuilder()
.setTimestamp(event.getTimeStamp())
.setService(Config.Agent.SERVICE_NAME)
.setServiceInstance(Config.Agent.INSTANCE_NAME)
.setTags(logTags.build())
.setBody(LogDataBody.newBuilder()
.setType(LogDataBody.ContentCase.TEXT.name())
.setText(TextLog.newBuilder()setText(transformLogText(appender, event)).build() //按照日志设置的格式化，对日志内容进行格式化
).build());
//往LogData的Endpoint中设置数据
String primaryEndpointName = ContextManager.getPrimaryEndpointName();
if (primaryEndpointName != null) {
builder.setEndpoint(primaryEndpointName);
}
//往LogData的TraceContext中设置数据
return -1 == ContextManager.getSpanId() ? builder
: builder.setTraceContext(TraceContext.newBuilder()
.setTraceId(ContextManager.getGlobalTraceId())
.setSpanId(ContextManager.getSpanId())
.setTraceSegmentId(ContextManager.getSegmentId())
.build());
}
//根据用户设置的Encoder，把日志内容格式化
private String transformLogText(final OutputStreamAppender<ILoggingEvent> appender, final ILoggingEvent event) {
if (ToolkitConfig.Plugin.Toolkit.Log.TRANSMIT_FORMATTED) {
return new String(appender.getEncoder().encode(event));
} else {
return event.getMessage();
}
}
}
日志通过client.produce把日志放到LogReportServiceClient维护的DataCarrier后，如何被发送出去
在LogReportServiceClient初始化的过程中已经指明了其内部的DataCarrier的消费者了
@Override
public void boot() throws Throwable {
carrier = new DataCarrier<>("gRPC-log", "gRPC-log",
Config.Buffer.CHANNEL_SIZE,
Config.Buffer.BUFFER_SIZE,
BufferStrategy.IF_POSSIBLE
);
carrier.consume(this, 1);
}
然后，掉用LogReportServiceClient的consume方法读取DataCarrier的数据
//consume会自动读取到消息
@Override
public void consume(final List<LogData.Builder> dataList) {
//如果没有读取到消息
if (CollectionUtil.isEmpty(dataList)) {
return;
}
//如果grpc的状态是CONNECTED
if (GRPCChannelStatus.CONNECTED.equals(status)) {
GRPCStreamServiceStatus status = new GRPCStreamServiceStatus(false);
StreamObserver<LogData> logDataStreamObserver = logReportServiceStub
.withDeadlineAfter(Collector.GRPC_UPSTREAM_TIMEOUT, TimeUnit.SECONDS)
.collect(
new StreamObserver<Commands>() {
//获取到从服务端获取到的响应内容
@Override
public void onNext(final Commands commands) {
}
@Override
public void onError(final Throwable throwable) {
status.finished();
LOGGER.error(throwable, "Try to send {} log data to collector, with unexpected exception.",
dataList.size()
);
ServiceManager.INSTANCE
.findService(GRPCChannelManager.class)
.reportError(throwable);
}
@Override
public void onCompleted() {
status.finished();
}
});
//遍历获取到的日志数据，把日志发送出去
boolean isFirst = true;
for (final LogData.Builder logData : dataList) {
if (isFirst) {
// Only set service name of the first element in one stream
// https://github.com/apache/skywalking-data-collect-protocol/blob/master/logging/Logging.proto
// Log collecting protocol defines LogData#service is required in the first element only.
logData.setService(Config.Agent.SERVICE_NAME);
isFirst = false;
}
logDataStreamObserver.onNext(logData.build());
}
//告诉服务端，请求全部发完了
logDataStreamObserver.onCompleted();
//等待关闭
status.wait4Finish();
}
}
整体发送的日志数据大致如下面的json
{
"timestamp": "2024-04-10 15:10:14",
"service": "服务名称",
"serviceInstance": "服务实例名称",
"endpoint": "具体方法的名称",
"body": {
"type": "TEXT",
"content": "可以是json、text、yaml"
},
"traceContext": {
"traceId": "链路追踪的ID",
"traceSegmentId": "segmentId",
"spanId": "spanId"
},
"tags": {
//这里面放了很多键值对
},
"layer": ""
}
分析1
@DefaultImplementor
public class LogReportServiceClient implements BootService, GRPCChannelListener, IConsumer<LogData.Builder> {
private static final ILog LOGGER = LogManager.getLogger(LogReportServiceClient.class);
private volatile DataCarrier<LogData.Builder> carrier;
private volatile GRPCChannelStatus status;
private volatile LogReportServiceGrpc.LogReportServiceStub logReportServiceStub;
@Override
public void prepare() throws Throwable {
ServiceManager.INSTANCE.findService(GRPCChannelManager.class).addChannelListener(this);
}
//Log上报器中维护了一套自己的 DataCarrier
@Override
public void boot() throws Throwable {
carrier = new DataCarrier<>("gRPC-log", "gRPC-log",
Config.Buffer.CHANNEL_SIZE,
Config.Buffer.BUFFER_SIZE,
BufferStrategy.IF_POSSIBLE
);
//初始化好的DataCarrier的消费者，就是当前类LogReportServiceClient
carrier.consume(this, 1);
}
@Override
public void onComplete() throws Throwable {
}
//把log数据写入到DataCarrier
public void produce(LogData.Builder logData) {
if (Objects.nonNull(logData) && !carrier.produce(logData)) {
if (LOGGER.isDebugEnable()) {
LOGGER.debug("One log has been abandoned, cause by buffer is full.");
}
}
}
@Override
public void init(final Properties properties) {
}
//开始消费，参数就是读取到的DataCarrier中待发送的数据
@Override
public void consume(final List<LogData.Builder> dataList) {
if (CollectionUtil.isEmpty(dataList)) {
return;
}
//通过GRPC的流式发送的方式，把所有的日志数据上报！
if (GRPCChannelStatus.CONNECTED.equals(status)) {
GRPCStreamServiceStatus status = new GRPCStreamServiceStatus(false);
StreamObserver<LogData> logDataStreamObserver = logReportServiceStub
.withDeadlineAfter(Collector.GRPC_UPSTREAM_TIMEOUT, TimeUnit.SECONDS)
.collect(
new StreamObserver<Commands>() {
@Override
public void onNext(final Commands commands) {
}
@Override
public void onError(final Throwable throwable) {
status.finished();
LOGGER.error(throwable, "Try to send {} log data to collector, with unexpected exception.",
dataList.size()
);
ServiceManager.INSTANCE
.findService(GRPCChannelManager.class)
.reportError(throwable);
}
@Override
public void onCompleted() {
status.finished();
}
});
boolean isFirst = true;
for (final LogData.Builder logData : dataList) {
if (isFirst) {
// Only set service name of the first element in one stream
// https://github.com/apache/skywalking-data-collect-protocol/blob/master/logging/Logging.proto
// Log collecting protocol defines LogData#service is required in the first element only.
logData.setService(Config.Agent.SERVICE_NAME);
isFirst = false;
}
logDataStreamObserver.onNext(logData.build());
}
logDataStreamObserver.onCompleted();
status.wait4Finish();
}
}
@Override
public void onError(final List<LogData.Builder> data, final Throwable t) {
LOGGER.error(t, "Try to consume {} log data to sender, with unexpected exception.", data.size());
}
@Override
public void onExit() {
}
@Override
public void statusChanged(GRPCChannelStatus status) {
if (GRPCChannelStatus.CONNECTED.equals(status)) {
Channel channel = ServiceManager.INSTANCE.findService(GRPCChannelManager.class).getChannel();
logReportServiceStub = LogReportServiceGrpc.newStub(channel)
.withMaxOutboundMessageSize(Log.MAX_MESSAGE_SIZE);
}
this.status = status;
}
@Override
public void shutdown() {
carrier.shutdownConsumers();
}
}更多推荐
